Home > Products> Paper Tea Cup Making Machine> Single / Double PE Coated Disposable Cup Thermoforming Machine 120 130 140 150 PCS/MIN

Single / Double PE Coated Disposable Cup Thermoforming Machine 120 130 140 150 PCS/MIN

Basic Information

Place of Origin:	China
Brand Name:	Shunda
Model Number:	SMD-90A

Minimum Order Quantity:	1 SET
Price:	negotiation
Packaging Details:	wooden pallet for paper cup machine
Delivery Time:	30 working days after received your payment
Payment Terms:	T/T or L/C
Supply Ability:	20 SETS per month

Get Best Price Contact Now

Detail Information

Product Name:	Paper Tea Cup Making Machine	Color:	Green, Gray,any Color As Client Request
CUP SIZE:	2-16oz	Speed:	120-150 Pcs/min
Material:	Single/Double PE Coated Paper	CONFIGURATION:	ULTRASONIC&HOT AIR
Electricity Brand:	Mistibushi Motor	OUTPUT:	380V/220V,60HZ
Highlight:	paper cup making machinery , disposable cup thermoforming machine

Product Description

Single / Double PE Coated Disposable Cup Thermoforming Machine 120 -150 PCS/MIN

Specifications:

MODEL	SMD-90
Speed	100-145PCS/MIN
Cup size Range	<16oz
Material	Single and Double PE coated paper
Paper request Gram	190-350GSM(single and double PE coated paper)
Paper request Gram	190-350GSM(single and double PE coated paper)
Heating system	Hot air system (from Switzerland)
Output	380V/220V 12 KW,50HZ, Three Phase four wire
Output	380V/220V 12 KW,50HZ, Three Phase four wire
Air compressor	0.5 M³/Min
Net weight	3.4 TONS
Machinery Size	2500 ×1600 ×1600 MM
Counter table Size	900 ×900 ×1760 MM

Single / Double PE Coated Disposable Cup Thermoforming Machine 120 130 140 150 PCS/MIN 0

Details: paper cup machine

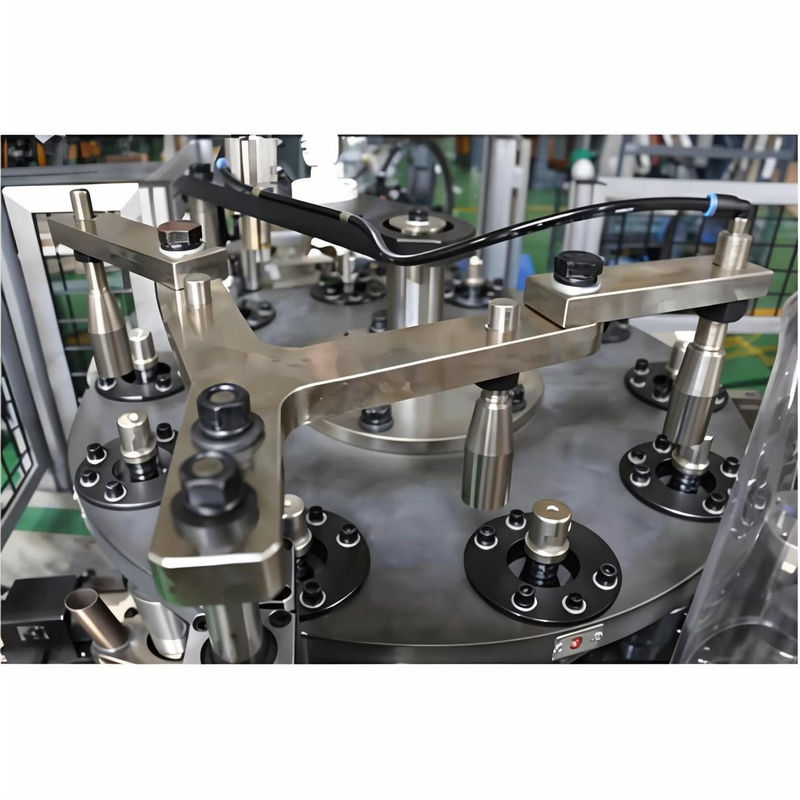

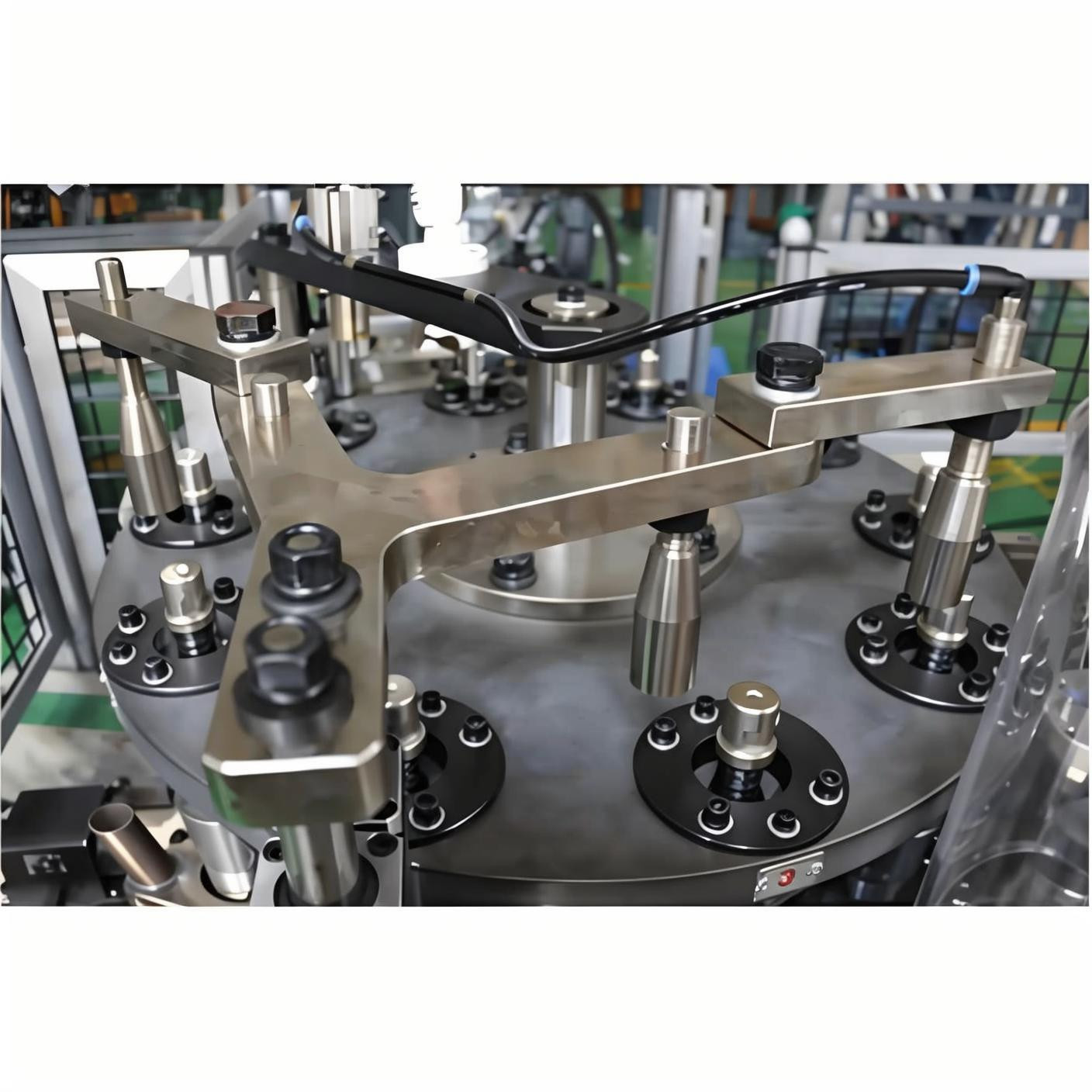

Double Open cylindrical cam:

Our factory is the first one using two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on the machine, our factory will test running one week, to ensure each bearing at the suitable station.

Single / Double PE Coated Disposable Cup Thermoforming Machine 120 130 140 150 PCS/MIN 1

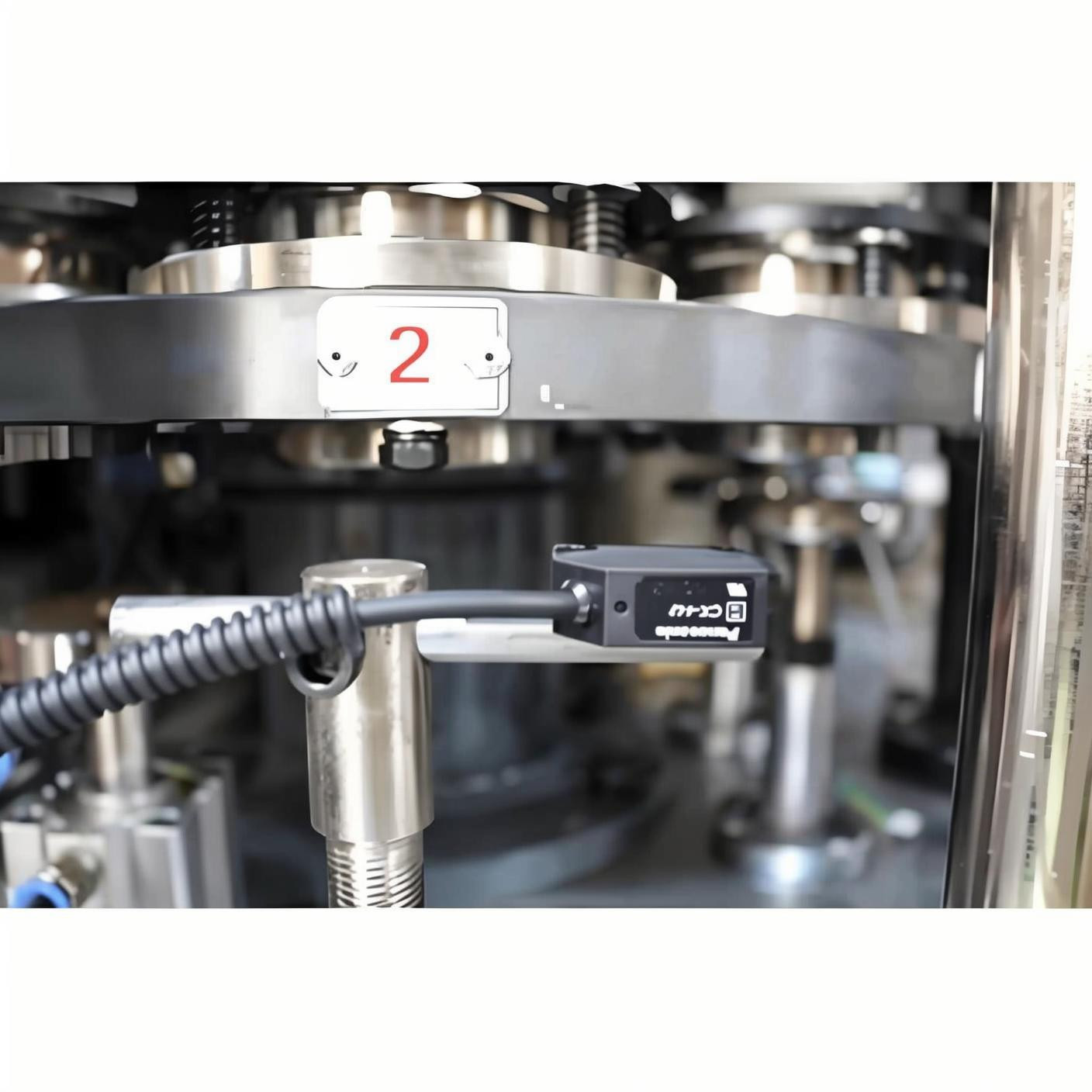

Inspection system(Option):

Unique design. Our factory set up on final turn station,more stable than set up on flying tube. Do not need to buy extra inspection machine, less factory space needed. Inspection accuracy can be set up by self.

Single / Double PE Coated Disposable Cup Thermoforming Machine 120 130 140 150 PCS/MIN 2

PLC control system: controlled by simple and efficient PLC system.

Single / Double PE Coated Disposable Cup Thermoforming Machine 120 130 140 150 PCS/MIN 3

Oil lubracation recycling system :

Open cylindrical cam: Our factory is the first one using two cam systems, this design more costly,
but can let the top curling and bottom knurling more accuracy, stable and low noise.
Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on
the machine, our factory will test running one week, to ensure each bearing at the suitable station.

Advantages:

1. It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2. Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3. Panasonic photoelectricity checking the every part and report.
4. Open cylindrical can divide locating,heigh precision.
5. Automatically Oil lubrication system .
6. Servo motor control the gap of the bottom-paper within 0.1mm.

7. Gear and open cylindrical promote the stability and speed.

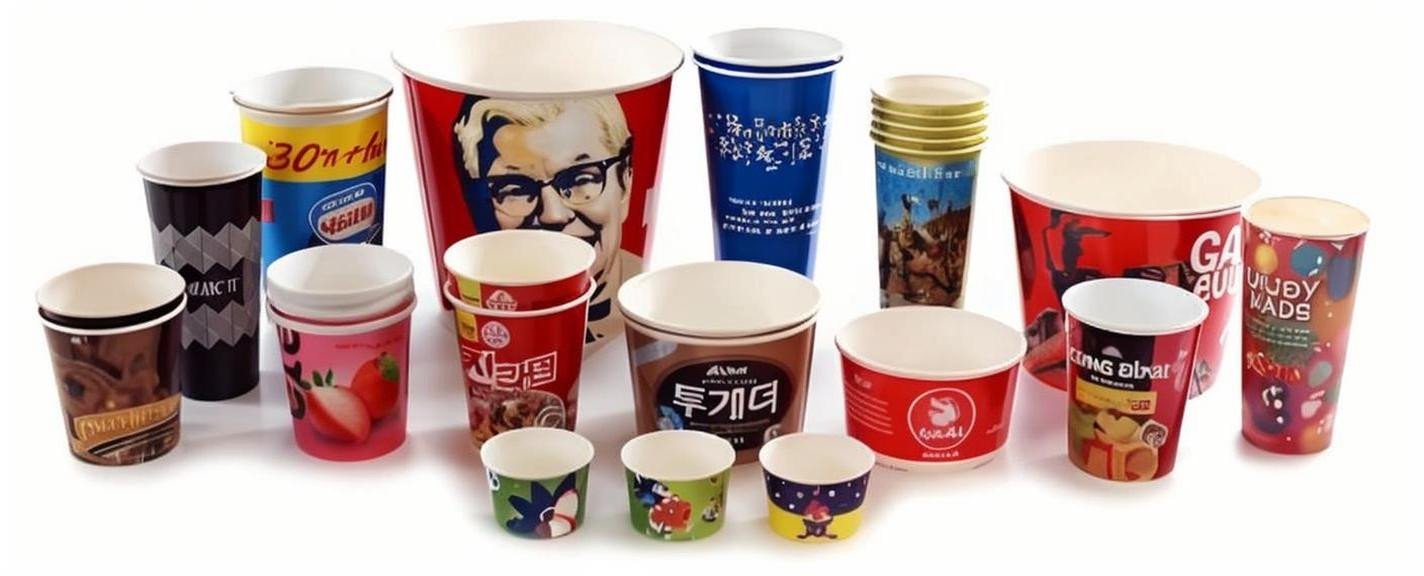

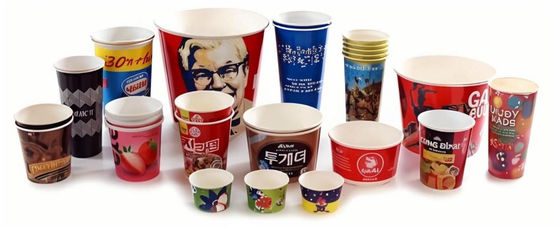

Finished paper cups:

Company Information

About Us

As the sole professional manufacturer on the paper cup machine,our factory established in 1999,located in Haining City, Zhejiang Province. We have rich experience on the paper cup machine& paper cups making ,providing high-quality, comprehensive and advanced technical products to our customers all over the word. In our factory there is...

1. 18 years experience in the paper cup machine field.

2. Attend at least 3 machine fairs (in Beijing,Wuhan,Yiwu)to meet you.

3. Accept OEM and ODM services

FAQ

Belgium:Question: Can the SMD-90 be integrated into an automated production line, and what supporting equipment is needed? Answer: Yes. The SMD-90 supports connection with automated equipment such as automatic paper feeding machines, visual inspection systems, and robotic palletizers. It only needs to be equipped with a standard interface (provided by the manufacturer) to realize seamless integration into the production line, improving the automation level and meeting the needs of large Belgian packaging enterprises.
Peru:Question: How to solve the problem of poor sealing (leakage) of paper cups produced by the SMD-90? Answer: First, check whether the paper's coating is uniform (replace unqualified paper); second, adjust the ultrasonic heating time (0.8-1.2 seconds for single-wall cups, 1.2-1.5 seconds for double-wall cups); finally, clean the sealing mold (remove residual paper scraps), which can effectively solve the leakage problem.
Denmark:Question: Does the SMD-90 have carbon footprint certification, and is it suitable for Danish green factories? Answer: Yes. The SMD-90 has obtained the EU Carbon Footprint Certificate (CFP), with a carbon emission of 0.02kg CO₂ per 1,000 cups produced, which is 30% lower than the industry average. It meets the carbon reduction requirements of Danish green factories and can help enterprises obtain relevant policy support.
Egypt:Question: What is the voltage stability requirement of the SMD-90, and how to deal with frequent power outages in Egypt? Answer: The equipment requires a voltage stability range of ±10% (220V/380V). For areas with frequent power outages, it is recommended to configure a 10kVA UPS power supply (backup time ≥30 minutes), which can ensure the completion of the current production batch and avoid equipment damage caused by sudden power outages.
Austria:Question: How to train employees to operate the SMD-90, and is there a multilingual operation manual? Answer: The manufacturer provides free on-site training (2-3 days) for 2-3 employees, covering equipment operation, maintenance, and fault handling. The operation manual supports 8 languages including English, German, and French, and is equipped with video tutorials. Austrian employees can quickly master the operation skills through the manual and training.
