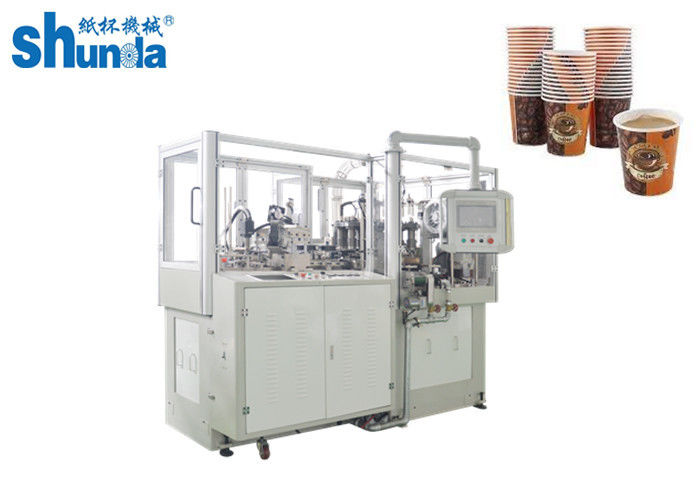

Paper Tea Cup Making Machine,high speed digital control process inspect paper tea cup making machine
Description
SMD-90 is a Paper Cup Making machine,which is designed By HAINING CHENGDA MACHINERY
CO.,LTD,It can produce both single and Double PE coated paper Bowls.
As technology development, it will take place of the formally machines in market.

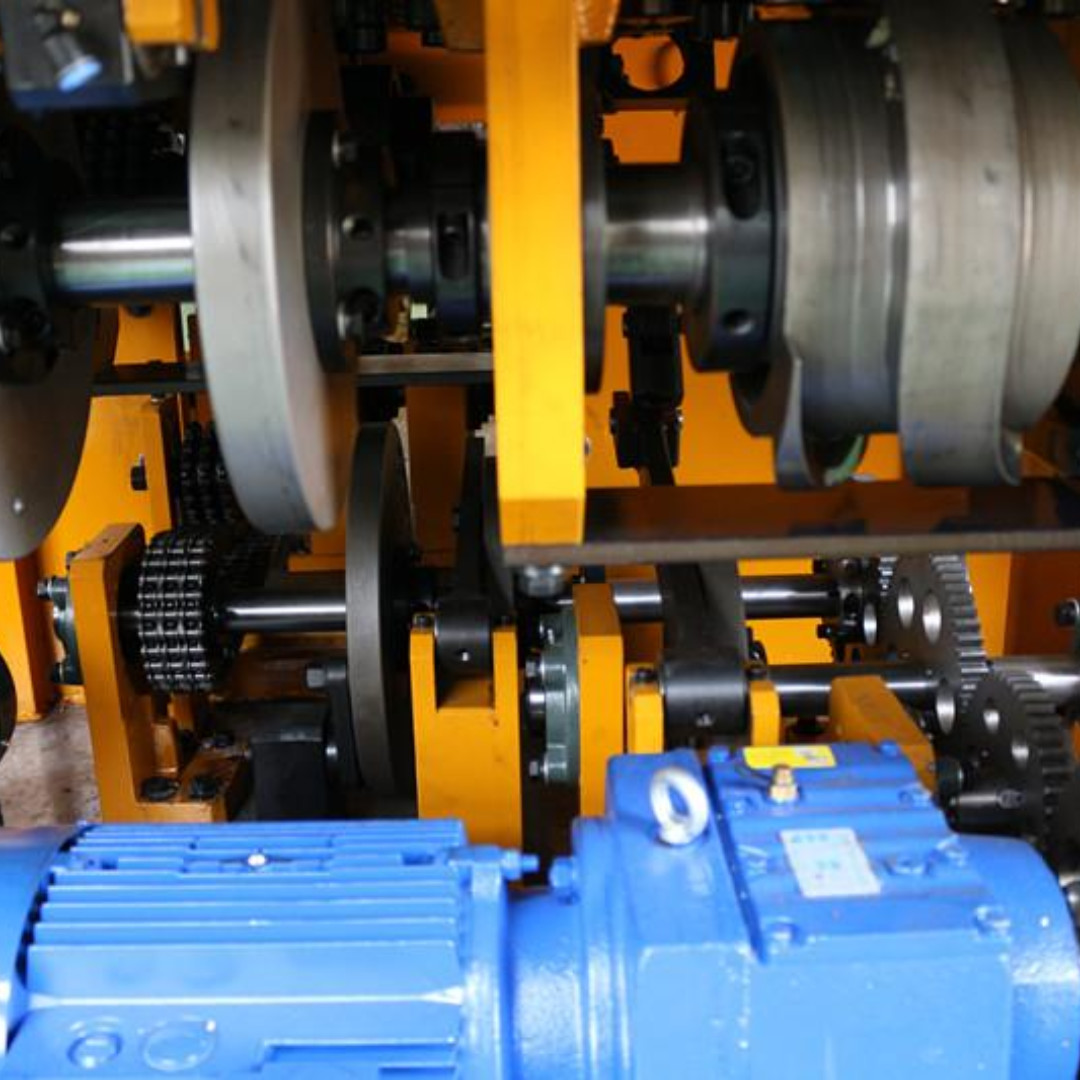

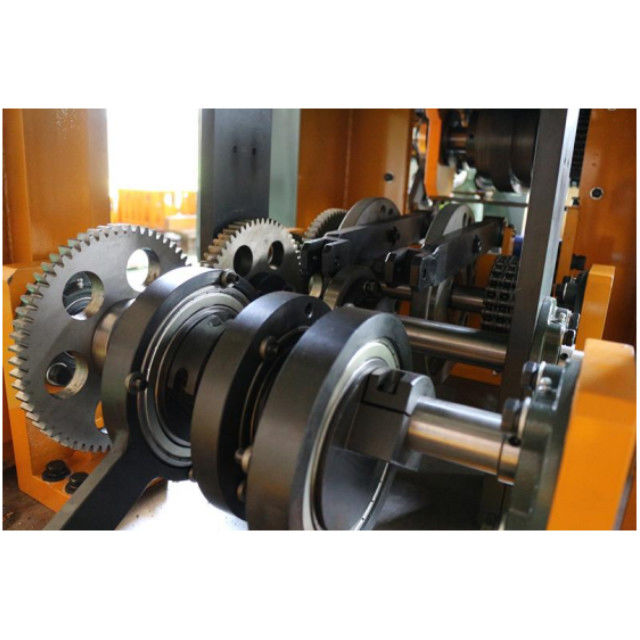

1. Hi-tech Cylindrical indexing gear
2. Switzerland Hot air sealing device
3. Mitsubishi PLC tracking and Touch screen Controlling cabinet
4. Servo-driven bottom-web feed with infinitely variable setting
5. Automatic lubrication system
6. Infinitely variable drive
7. Safety Door opening protection device
8. Photoelectric tracking and detecting every step
9. Automatic collecting and counting cups
Specification
| MODEL |
SMD 90 AUTOMATICAL MIDDLE SPEED PAPER CUP MACHINE |
| SPEED |
100 CUPS/MINUTE |
| CUP SIZE |
TOP DIAMETER 60MM TO 100MM
BOTTOM DIAMETER 40MM TO 80MM
HEIGHT 50MM TO 150MM
|
| PAPER FAN |
135 TO 450 GRAM |
| CONFGURATION |
ULTRASONIC HOT AIR HEATING |
| OUTPUT |
12KW , 380V/220V, 60HZ |
| MACHINE WEIGHT |
3.5TONS |
| MACHINE SIZE |
2500 X1800 X1700 MM |
| CUP COLLECTOR SIZE |
900X900X1760 MM |
| AIR COMPRESSOR |
0.45MPA |
Highlights
Original Leister heaters
Panasonic track switches
food grade moulds
Anti rust components
Ultrasonic system from Taiwan--EVERGREEN brand
Quality control
1).All parts are inspected then applied
2).10 year experience assembly workers,always follow strict quality rules
3). 3 years warranty, 7 day 24 hour service availble.
QUANTITY GUARANTEE
The Seller guarantee the machines are new 100% and the guarantee period shall be
given 36 (thirty-six) months which starts from the date of the machine’s arrival.
During this period, the Seller shall provide free spare parts that caused by the machine
quality.
INSTALLATION SERVICE
The Seller shall send one technician to install the machine for The Buyer and will train
the workers how to operate the machines, but the Buyer shall be in charge of all the
technician’s expenses including transportation expenses( including round way tickets),
visa, accommodation, food. And the Buyer also shall be in charge of salary for technician
( USD 150/day).
Locate us--1.5 hours drive from Shanghai Pudong Airport
1. What Is a Paper Cup Machine & How Does It Work?
Q: What is a paper cup machine, and what are its core working steps?
A: A paper cup machine is automated equipment for producing disposable paper cups. It processes PE - coated paper blanks and bottom paper rolls into finished cups through these key steps: paper feeding → sealing (heat / ultrasonic) → bottom forming → curling → quality inspection → stacking. Most machines lack printing and pre - cutting functions for fan - shaped paper; they only cut bottom rolls.
2. Raw Materials & Specifications
Q: What raw materials are needed for a paper cup machine? What GSM is suitable?
A: Required materials: single / double PE - coated pre - cut and printed fan - shaped paper, bottom paper rolls, food - grade silicone oil, and a small air compressor. The typical GSM range is 155–165 for small cups and 180–220 for large / double - wall cups, balancing sturdiness and cost.
3. Mold Change & Cup Size Flexibility
Q: Can one machine make multiple cup sizes? How to change molds?
A: One machine comes with one standard mold set. To make different sizes, you can buy extra half - set molds (easy to replace) or full - set molds (difficult, low success rate). It is recommended to change 1–3 half - set molds with the same bottom diameter. Frequent mold changes will prolong downtime and damage parts, especially for high - speed machines.
4. Production Preparation & Installation
Q: What else do I need to start production? How to install and get training?
A: Besides the machine and raw materials, prepare food - grade silicone oil and a small air compressor. Machines are pre - installed and tested before delivery. Suppliers usually provide operation / training videos; on - site training can be arranged for an extra fee.
