Shunda Paper Cup Forming Machine, Coffee Cup ,Ice Cream Bowl,High Speed Machine

Basic Information

Place of Origin:	China
Brand Name:	Shunda
Model Number:	HSM-200

Minimum Order Quantity:	one set
Price:	negotiation
Packaging Details:	wooden pallet for paper cup machine
Delivery Time:	30 working days after received your payment
Payment Terms:	T/T, L/C
Supply Ability:	20 sets per month

Get Best Price Contact Now

Detail Information

Raw Material:	PE Cpated Paper	Speed:	130-160 Pcs/m
Paper Thickness:	150-450GSM	Machine Dimension:	250013002000
Net Weight:	3.5tons	Machine Name:	Semi-servo Motor Paper Cup Making Machine
Machine Model:	HSM-200	Power Max:	22KW
Highlight:	paper cup making machinery , paper cups manufacturing machines

Product Description

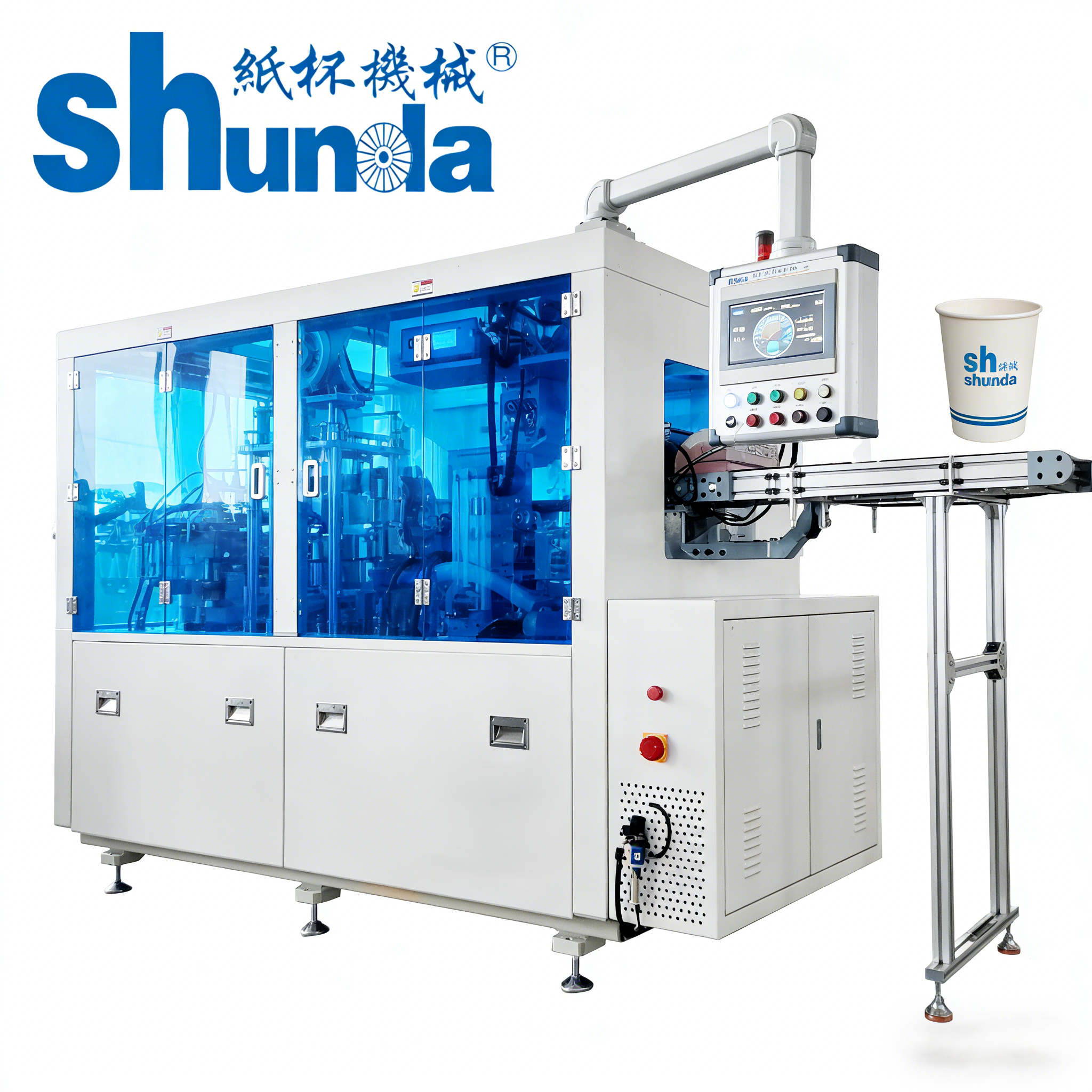

Shunda Paper Cup Forming Machine, Coffee Cup ,Ice Cream Bowl,High Speed Machine

New Semi-Servo Paper Cup Machine by Chengda Machinery

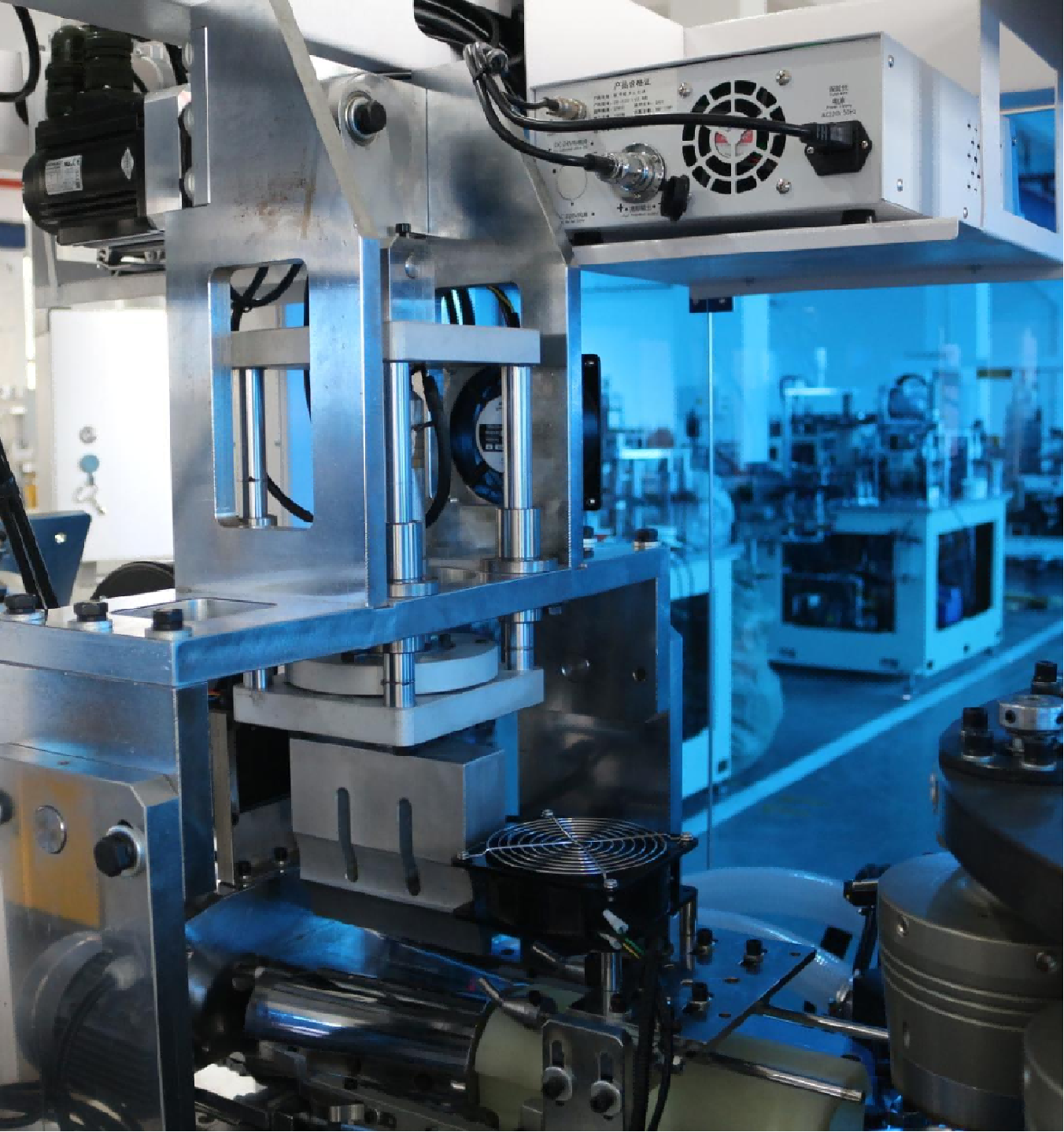

This new semi-servo paper cup machine builds on the traditional mechanical design with an innovative servo motor upgrade. Servo motors are applied to the main motor, main turntable, ultrasonic heating, and bottom paper feeding, delivering more stable, efficient operation and greatly improved precision.

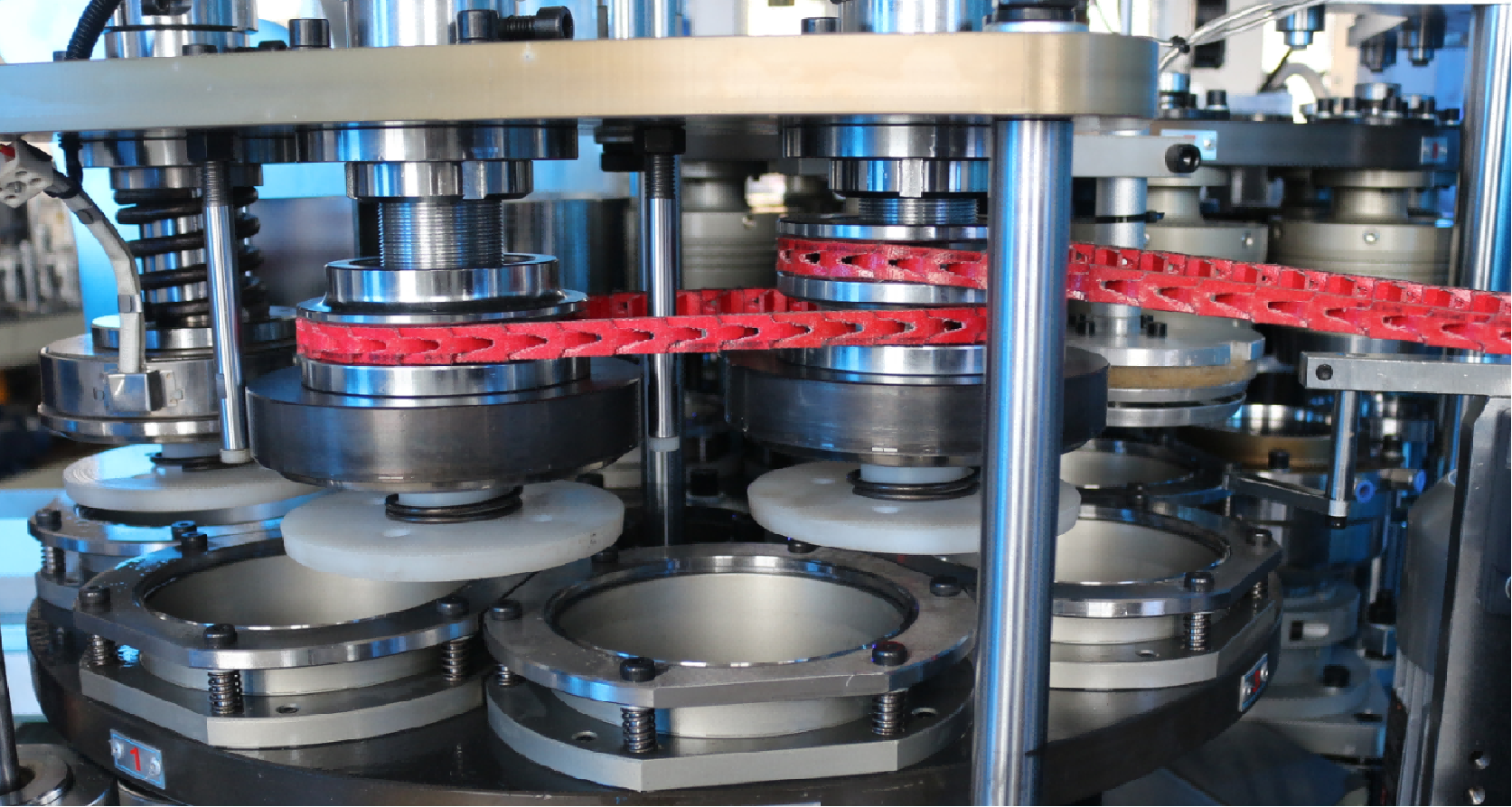

Featuring a 3-station curling system, it produces firmer, more accurate curling for paper cups and bowls. The machine adopts a dual-cam integrated structure, which boosts productivity while significantly reducing noise.

With inclined suction feeding, mechanical lubrication, and a mechanical cup discharge system, the machine is more energy-saving. It also has a more compact structure and an attractive appearance.

Shunda Paper Cup Forming Machine, Coffee Cup ,Ice Cream Bowl,High Speed Machine 0

Specifications

Shunda Paper Cup Forming Machine, Coffee Cup ,Ice Cream Bowl,High Speed Machine 1

Paper cup making process

Shunda Paper Cup Forming Machine, Coffee Cup ,Ice Cream Bowl,High Speed Machine 2

Shunda Machine Advantages

Shunda Paper Cup Forming Machine, Coffee Cup ,Ice Cream Bowl,High Speed Machine 3 Integrating the aforementioned core technological advantages, this system achieves simultaneous improvements in operational efficiency and stability.

Production speed reaches 130-160 pieces per minute.

Efficiency is increased by 46% compared to traditional mechanical systems.

Dimensions: 2500×1300×2000mm → Small footprint, suitable for large, medium, and small factory layouts.

→ Helps businesses reduce costs and improve efficiency.

Shunda Paper Cup Forming Machine, Coffee Cup ,Ice Cream Bowl,High Speed Machine 4

Paper cup sample

Shunda Paper Cup Forming Machine, Coffee Cup ,Ice Cream Bowl,High Speed Machine 9
