Key Attributes

Brand Name:Shunda
Model Number:SMD-90
Place of Origin:China
Minimum Order Quantity:1 set
Price:negotiable
Supply Ability:20 sets per month
Delivery Time:25-35 working days
Payment Terms:T/T or L/C, Western Union
Standard Packaging:wooden pallet for paper cup machine

Product Summary

Paper Tea Cup Making Machine,automatic max 100cups/min paper tea cup making machine-great quality installation warranty Description Automatic Paper Cup Machine SMD-90 is used for paper cup forming,raw material is PE coated paper fan(single PE coating and double PE coating are workable). Applicable ...

Product Details

Highlight:

paper cup making machinery

,

paper cups manufacturing machines

Cup Size: 2-32oz
Speed: Max 100cups/min
Power: 380V,50Hz,12Kw
Air Supply: 0.5Mpa
Paper Type: Single Or Double Pe Coat
Paper Weight: 135-450gsm
Machine: 3400Kg,2.5x1.8x1.7m
Highlights: Ultrasonic System,digital Control,inspect,pack
Product Description
Detailed Specifications & Features



Paper Tea Cup Making Machine,automatic max 100cups/min paper tea cup

making machine-great quality installation warranty







Description



Automatic Paper Cup Machine SMD-90 is used for paper cup forming,raw material

is PE coated paper fan(single PE coating and double PE coating are workable).



Applicable paper fan volume 2-32oz

weight range 135-450gsm



Paper Tea Cup Making Machine,automatic max 100cups/min paper tea cup making machine-great quality installation warrantyPaper Tea Cup Making Machine,automatic max 100cups/min paper tea cup making machine-great quality installation warranty







Specification



MODEL SMD 90 AUTOMATICAL MIDDLE SPEED PAPER CUP MACHINE
SPEED 100 CUPS/MINUTE
CUP SIZE

TOP DIAMETER 60MM TO 100MM

BOTTOM DIAMETER 40MM TO 80MM

HEIGHT 50MM TO 150MM

PAPER FAN 135 TO 450 GRAM
CONFGURATION ULTRASONIC HOT AIR HEATING
OUTPUT 12KW , 380V/220V, 60HZ
MACHINE WEIGHT 3.5TONS
MACHINE SIZE 2500 X1800 X1700 MM
CUP COLLECTOR SIZE 900X900X1760 MM
AIR COMPRESSOR 0.45MPA







Highlights

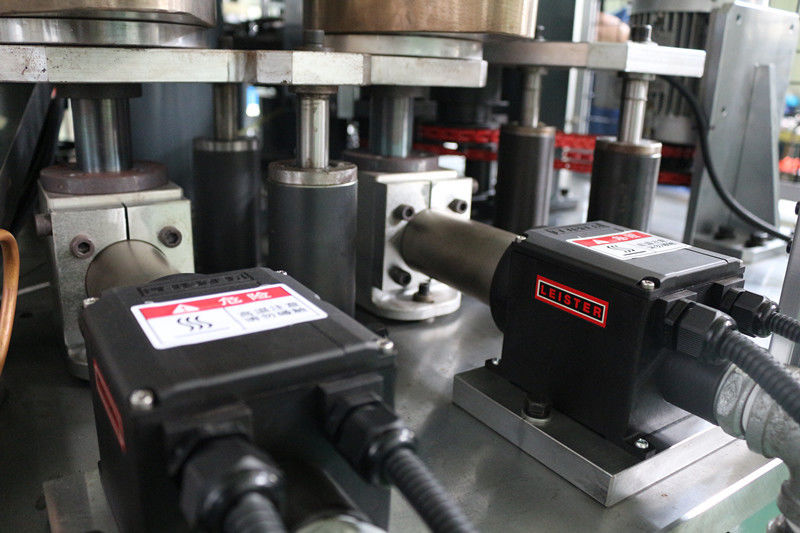

Original Leister heaters

Panasonic track switches

food grade moulds

Anti rust components



Paper Tea Cup Making Machine,automatic max 100cups/min paper tea cup making machine-great quality installation warranty



Ultrasonic system from Taiwan--EVERGREEN brand



Paper Tea Cup Making Machine,automatic max 100cups/min paper tea cup making machine-great quality installation warranty







Quality control



1).All parts are inspected then applied



2).10 year experience assembly workers,always follow strict quality rules



3). 3 years warranty, 7 day 24 hour service availble.



Paper Tea Cup Making Machine,automatic max 100cups/min paper tea cup making machine-great quality installation warranty



Locate us--1.5 hours drive from Shanghai Pudong Airport.



Paper Tea Cup Making Machine,automatic max 100cups/min paper tea cup making machine-great quality installation warranty



Paper Tea Cup Making Machine,automatic max 100cups/min paper tea cup

making machine-great quality installation warranty



FAQ





  1. Philippines:Question: What is the water consumption of the SMD-90, and is it suitable for areas with insufficient water supply in the Philippines? Answer: The equipment adopts air cooling technology, with zero water consumption during normal operation. It only needs 5-10L of water for wet the paper fan before production. which is very suitable for areas in the Philippines with limited water resources and can reduce production costs.
  2. Netherlands:Question: Does the SMD-90 support remote monitoring and fault diagnosis, and what technical conditions are required? Answer: Yes. The SMD-90 is equipped with a 4G/WiFi module, which can connect to the manufacturer's cloud platform. Users can monitor production data (speed, yield, defective rate) and receive fault alerts through a mobile app or computer. It only needs a stable network connection (bandwidth ≥10Mbps) to realize remote management, meeting the needs of Dutch intelligent factories.
  3. Colombia:Question: What is the maximum thickness of paper that the SMD-90 can handle, and is it suitable for producing thickened paper cups for cold drinks? Answer: The equipment can handle paper with a thickness of 135-450g/㎡, which is suitable for producing thickened single-wall/double-wall paper cups for cold drinks. For 16-22oz large-capacity cold drink cups, it is recommended to use 250-300g/㎡ paper, which can ensure the cup's rigidity and prevent deformation.
  4. Sweden:Question: How to ensure that the SMD-90 meets Sweden's strict noise pollution standards (≤75dB)? Answer: The SMD-90 is equipped with a sound insulation cover (standard configuration), and the operating noise is 65-70dB, which is lower than Sweden's industrial equipment noise limit (≤75dB). In addition, regular lubrication of the transmission system (every 15 working days) can further reduce noise.
  5. Nigeria:Question: What is the minimum raw material requirement for the SMD-90 to start production, and how to store the raw materials locally? Answer: The minimum raw material requirement for a single production batch is 50kg of paper. The raw materials (paper rolls, PLA coating) should be stored in a dry and ventilated warehouse (humidity ≤60%, temperature 15-30℃) to avoid moisture and mildew. It is recommended to use moisture-proof packaging for long-term storage, which is suitable for Nigeria's tropical climate.
