Black / Green Tea Paper Cup Forming Machine Automatic Single PE Coated Paper

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: SMD-90
Minimum Order Quantity: 1 set
Packaging Details: Wooden pallet for paper tea cup machine
Delivery Time: 20-35 working days
Detail Information
Steady Speed: 100-120pcs/min Material: 135-450gram(single PE Coated Paper )
Cup Size: 2-46oz Output: 220/380v 50HZ 16kw
Heating System: Ultrasonic Heating Size: 2500*1800*1700mm
High Light:

paper cups manufacturing machines


disposable cup thermoforming machine

Product Description


Black / Green Tea Paper Cup Forming Machine Automatic Single PE Coated Paper ​

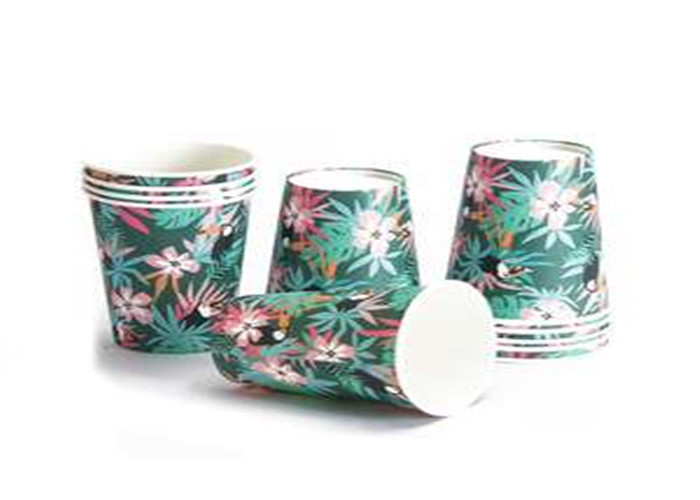

Black / Green Tea Paper Cup Forming Machine Automatic Single PE Coated Paper 0




SMD-90 type paper cup forming machine is an automatic paper cup machine

with multi-running positions. The machine runs a whole procedure of paper feeding , guling , oiling , bottom punching , heating , rolling , rounding and tripping . It uses the microcomputer control frequency changer , and it may automatically transform the speed.




Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Top diameter:110
Bottom Diameter:80
Top diameter:125
Bottom Diameter:100
Suitable Paper Thickness gsm 135-450
Sealing Method   Ultrasonic and hot air system
Running Power KW 10 11 12
Air compressor   0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860



Whole process


Black / Green Tea Paper Cup Forming Machine Automatic Single PE Coated Paper 1






Economical and practical

Ultrasonic heating system seal the paper body

Working for 24 hours with no stopping

Just need one worker to operate



After service


1 The CD and service&support guide booklet will be sent with machine to guide the installation process

    works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.

2.Test run of the machine&training:

   We will adjust the machine well for one week before the delivery, ensure the machine has the perfect


3.We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the

   buyer in charge of the salary, traffic fee, boarding and lodging, communication.

4.Training of buyer in China:

   We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!

   The cost of air ticket,boarding and lodging should provided by buyer

5.We supply the consumable spare parts for free for two years use





Q1:What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer FOB shanghai price .but we also accept other way like L/C , western union ,and do CFR&CIF etc.

Q2.Where I can get the raw material?
solution1: buy printed and cutted paper cup fan from us
solution2: find the factory in your area to print and cut for you
solution3:buy the flexo printing machine and die cutting machine to print and cut by yourself .
if you are new in this field ,i suggest you'd better to adopt solution 1 or 2 when you are in first stage.

Q3.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one worker ,what you do is just learn some basic thing like wet the paper cup fan , lubricating the moving parts regularly .And we will sent you video ,we suggest you to come to visit our factory to learn more thing by yourself for free , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 24 hrs .Our engineer also can be distributed to overseas as you required.

Q4. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
