| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE201090502/CE |
| Model Number: | SMD-90 |
| Minimum Order Quantity: | 1 set |
| Price: | $ 450000-60000 USD/SET |
| Packaging Details: | wooden package |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 15 set per mouth |
| Speed: | 100-130 Pcs/min | Material: | Single Or Double PE Coated Paper |
|---|---|---|---|
| Color: | Red | Cup Range: | < 16 Oz |
| Heating System: | Hot Air System (from Switzerland) | Air Compressor: | 0.5M^3/min |
| Product Output: | 380V,16 KW,50HZ, Three Phase Four Wire | Machine Size: | 2500×1800×1700mm |
| Counter Size: | 900×900×1760 Mm | Weight: | 3.5 Tons |
| High Light: | paper cups making machines,disposable cup making machine |
||

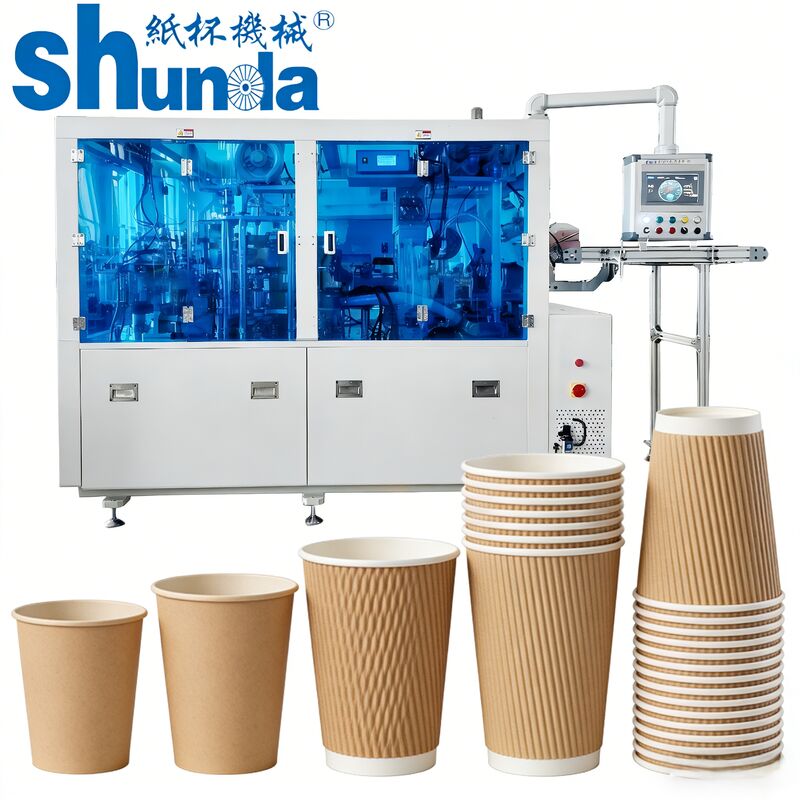

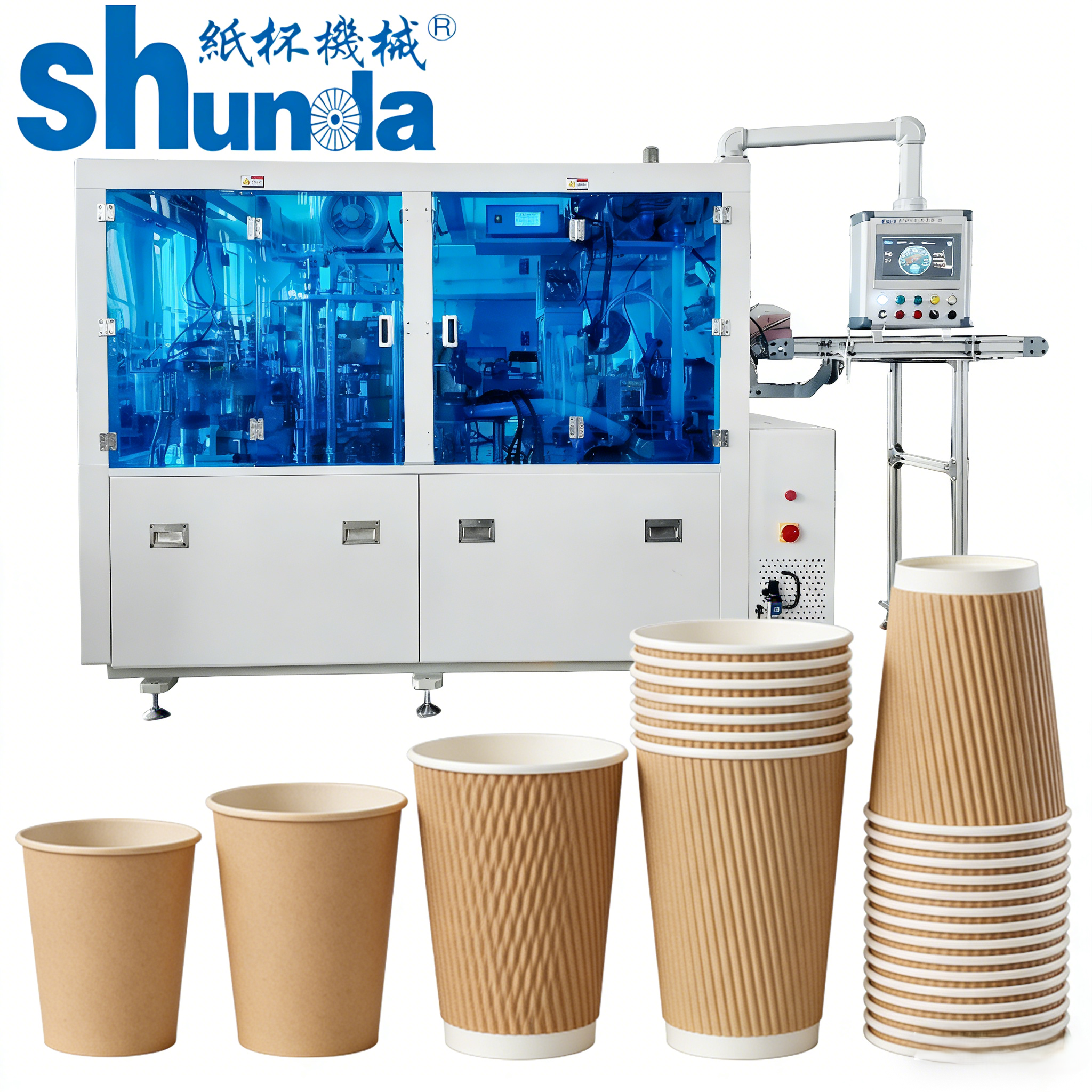

High Efficiency Automatic Cup Making Machine PLC Control Hot Air System
High Speed Paper Cup Making Machine is as automatic machine with multi-working station which has function of photocell detection failure alarm counter and the advantage of humanism design ,safer operation and easier maintenance
Based on the normal machine,through innovation and improvement. Overall stability and speed of production has been greatly improved .
It produces both one-side and two-side PE coated paper cup,paper bowl after running a whole procedure of automatic pre-printed -fan-shape-paper feeding ,two-step pre-heating,bowl-side-body.Sealing( ultrasonic wave ) silicone oil lubricating ( for top curling ) bottom punching ,two step bottom heating ,bottom pre-folding ,bottom knurling ,top curling and cup ( bowl ) discharging etc.
It is an ideal equipment of making both hot and cold drinks paper cups.
Technology Specification
| Model | SMD-90 |
| MATERIAL | SINGLE AND DOUBLE PE COATED PAPER |
| Paper cup size | 2-16 OZ |
| Speed | 100-130 PCS/MIN |
| Machine power | 12KW |
| Output | 380V/220V, 60HZ/50HZ,THREE PHASE FOUR WIRE |
| Working air source | 0.4M3/MIN |
| Paper material | 135-450 GRAM |
| Total weight | 3.4 TONS |
| Overall dimension | 25001800*1700 MM |
Machine Running Video
http://www.youtube.com/watch?v=OX6v6k-0sLo&feature=youtu.be
FAQ:
1.what’s your product range?

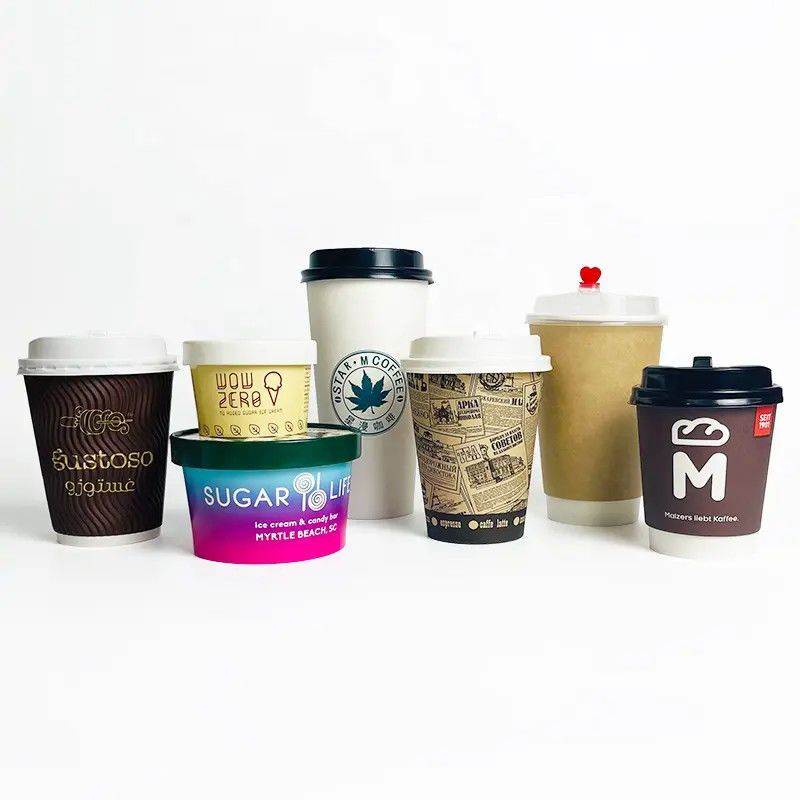

Tea cups,coffee cups,ice cream cups,noodle bowl, KFC bowl etc.
2.What size can this machine make?
This machine can make paper cups from 2OZ-16OZ.
3.How can I do the paper cup
Solution 1:you can buy die cutting machine and printing machine from us.
Solution 2:you can buy die cutting machine and printing machine in your native.
Solution 3: you can buy teh shaped paper fan and bottom paper.
4.Are you a manufacturer?
Yes,We have been in making paper cup machine over 16 years.
5.Do you have stock product to sell?
We have little stock ,But most of our products are designed according to customer’s requirement.
6.What information should i let you know if i want to get a quotation?
--Quantity
--What’s the detailed size (top diameter,bottom diameter,and height)
--What’s the paper sickness
--It is usage
7.What about the delivery time?
Usually 30 working days,but will depend on your quantity and size.
8.what about the payment term ?
Mostly 30%T/T in advanced,the rest need paid before shipping.
9.what’s your advantages ?
--16 years experience:We have been in making paper cup machine for 16 years.
--Customers all over the world
--Certificate: CE certificate,ISO 9001
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
We will reply your email or fax within 24 hours.
You can call us at any time if there is any question on our production.
