Detail Information

Speed:	100-120 Pcs/min(max 150pcs/min)	Cup Size:	2-46OZ
Material:	135-450gsm(single And Double PE Coated Paper )	Color:	As Per Requirement
Configuration:	Ultrasonic&hot Air System	Output:	12KW,380V/220V,60HZ/50HZ
Air Compressor:	0.4 M³/Min 0.5MPA	Net Weight:	3.4 TONS
Dimension Of Machine:	2500×1800×1700 MM	Dimension Of Cup Collector:	900×900×1760 MM

Product Description

2026 Intelligent Paper Cup Making Machine | Vision Inspection & Low Energy

Specifications:

Model	SMD-90 Intelligent Paper Cup Machine
Speed	120-160pcs/min
Cup size Range	2-46oz
Material	Single and double PE coated paper
Heating system	Ultrasonic &hot air system
Output	380V,12 KW ,60HZ, Three Phase four wire
Net weight	3.4 TONS
Machinery Size	2500 17001600 MM
Paper request	135gsm-450gsm
Warranty	3 Years
Description	smd-90 paper cup machine is a high gram paper cup shaping machine, it runs a whole procedure of the paper feeding, gluing, oiling, and bottom punching, heating, rolling, rounding, and tripping.It is an automatic machine you can control the speed according to the production! For a better cup body and bottom connection, it used ultrasonic and two hot air for heating, the heating phase into three steps, advanced technology allowed facility more safty both on itself and operator.It is an ideal equipment to make the paper cups for hot drink, cold drink, and ice cream paper cups.

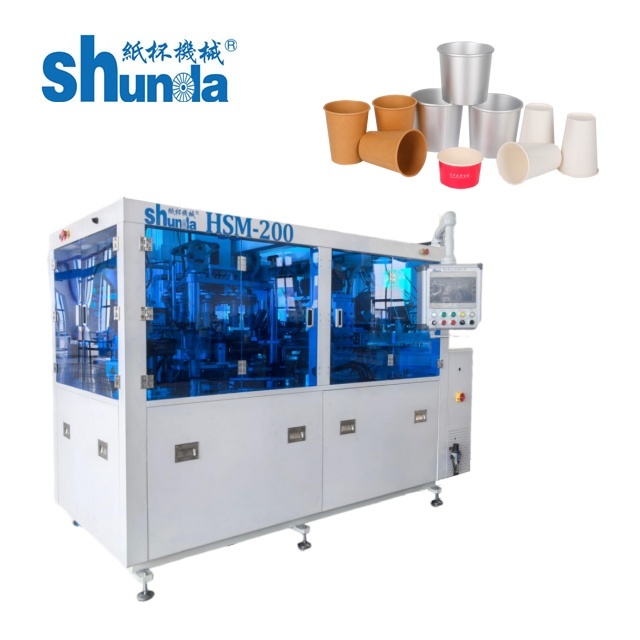

2026 Intelligent Paper Cup Making Machine | Vision Inspection & Low Energy 0

advantage:

1. photoelectric tracking can check every part and report.It can detect the cup rim and cup bottom.such as unstuck stain,broke,curl.Imported from Japan

2. 2sets of original hot air system guarantee the stability of heating.Imported fom Switzerland by Leister.

3. Servo motor control the gap of the bottom-paper within 0.1mm.And it will not skew,keep the distance same between the two sides of the bottom-paper.From Taiwan by TECO.

4. camera system can inspect the cup situation.If the cup is standard,it will blow into this tube,the defective production will blow into this tube.

5. Automatic Oil lubrication system for the machien’s moving parts,which is very useful,cause the worker don’t have to operate it every day,It save many time ang promote the efficiency and the life of the machine.

6. one labor can operate multi machine at same time,decrease the artificial cost.

.............

Inpection system or Inspeciton Machine

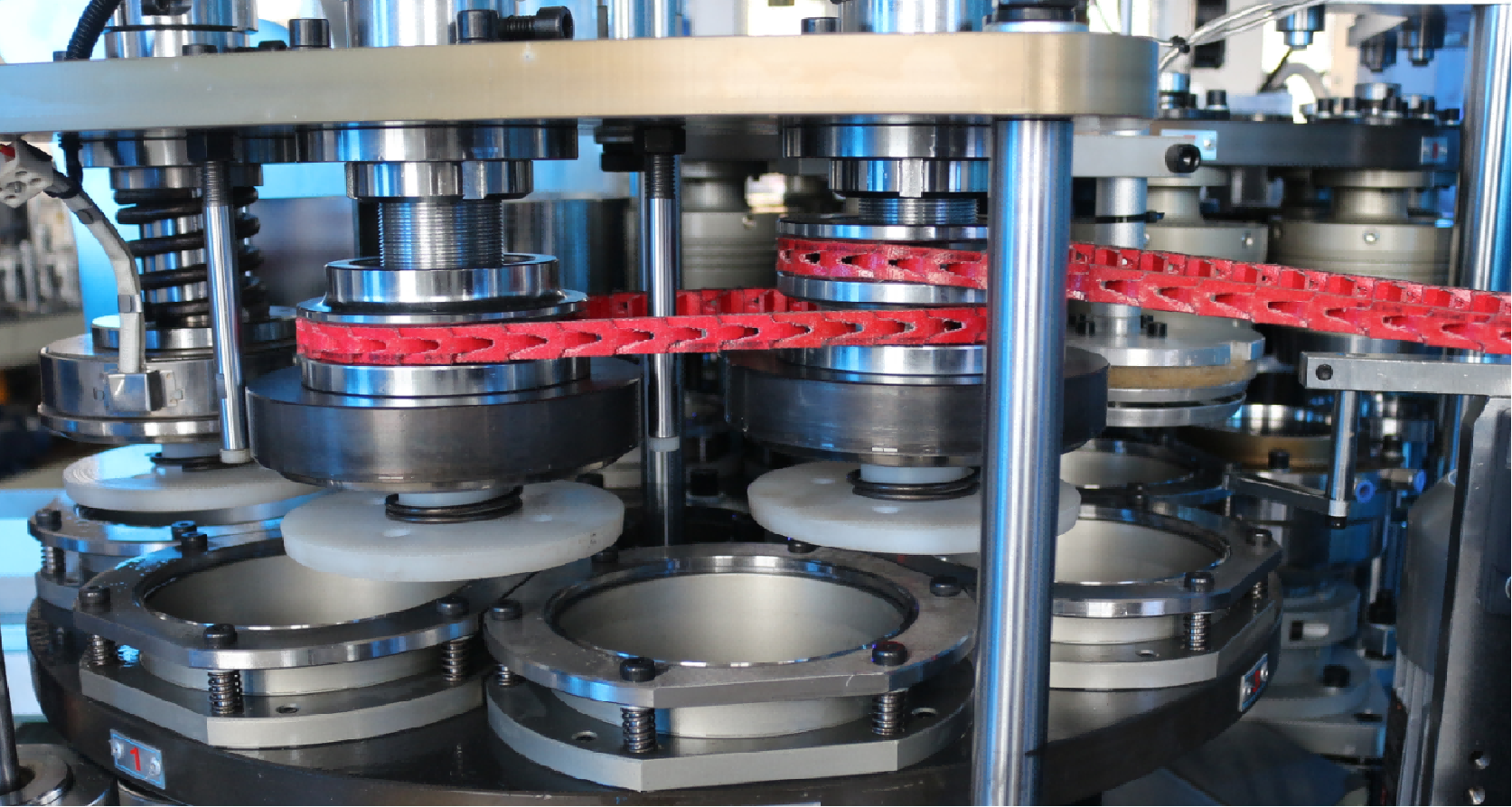

2026 Intelligent Paper Cup Making Machine | Vision Inspection & Low Energy 1

picture:

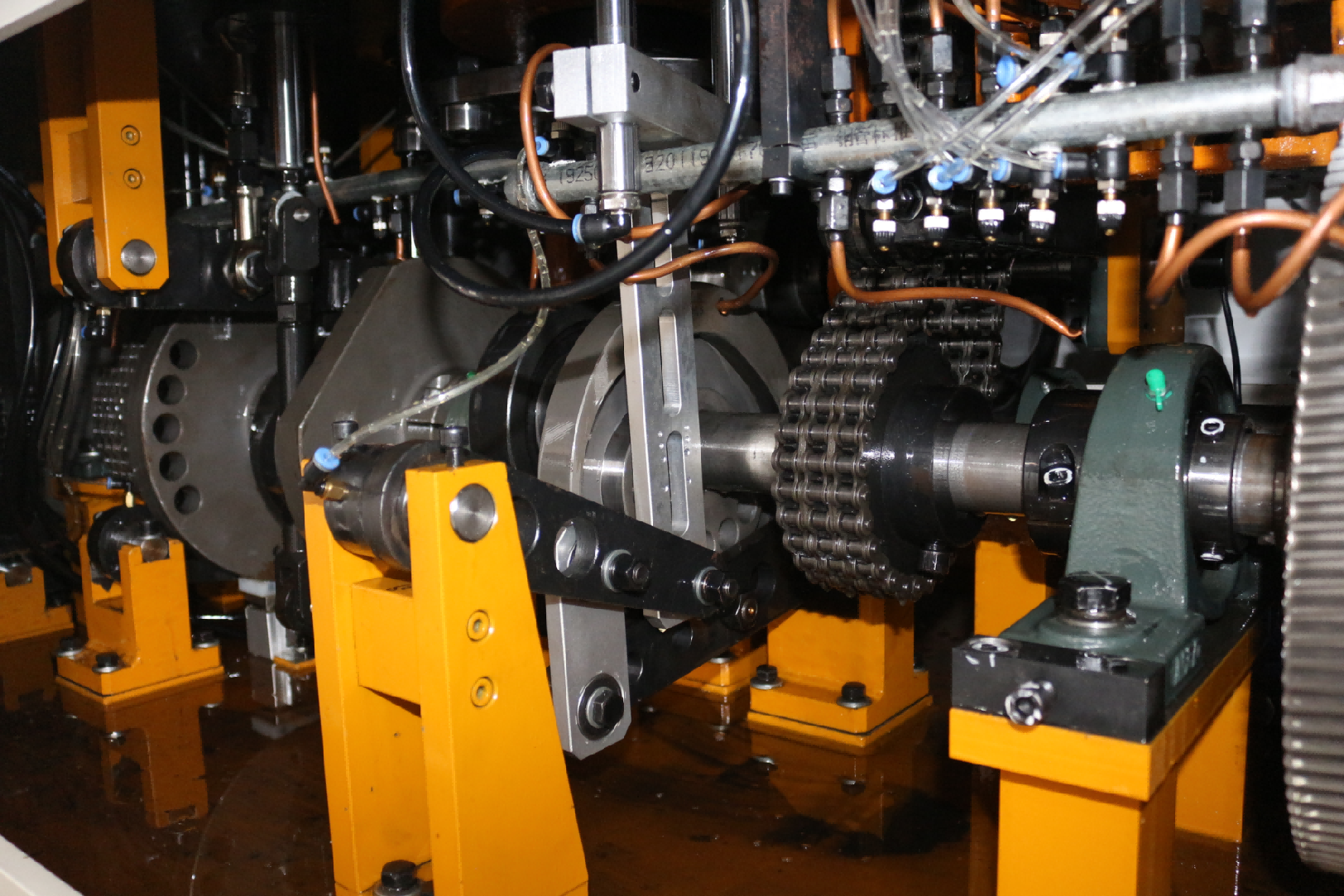

2026 Intelligent Paper Cup Making Machine | Vision Inspection & Low Energy 2

❓ FAQ About the SMD-90 Paper Cup Machine with Inspection System

Q1: What cup sizes can this machine produce?

A1: It supports cups with a top diameter (D1) from 40mm to 110mm, bottom diameter (D2) from 35mm to 80mm, and height (H) from 45mm to 140mm, covering most common coffee, tea, and cold drink cup sizes.

Q2: Can the machine use eco-friendly PLA paper?

A2: Yes, the SMD-90 is compatible with both single/double PE-coated paper and PLA plastic-free paper, allowing you to meet market demand for sustainable disposable cups.

Q3: How does the inspection system improve production?

A3: The AI vision inspection system checks each cup for leaks, uneven rims, bottom defects, and printing errors. It automatically rejects defective cups, reducing waste, labor costs, and improving overall production efficiency.

Q4: What are the power and air requirements?

A4: The machine runs on 380V/220V, 50/60Hz with a rated power of 20KW. It also requires an air compressor of 0.4 m³/min at 0.5 MPa.

Q5: Is the machine suitable for small businesses?

A5: Yes, the adjustable production speed (100-160 pcs/min) and compact design make it suitable for both small-scale workshops and medium to large factories.

Place of Origin:	China
Brand Name:	Shunda
Certification:	CE
Model Number:	SMD-90

Minimum Order Quantity:	1 set paper cup machine
Price:	negotiation
Packaging Details:	wooden case
Delivery Time:	30-40 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 sets/month
