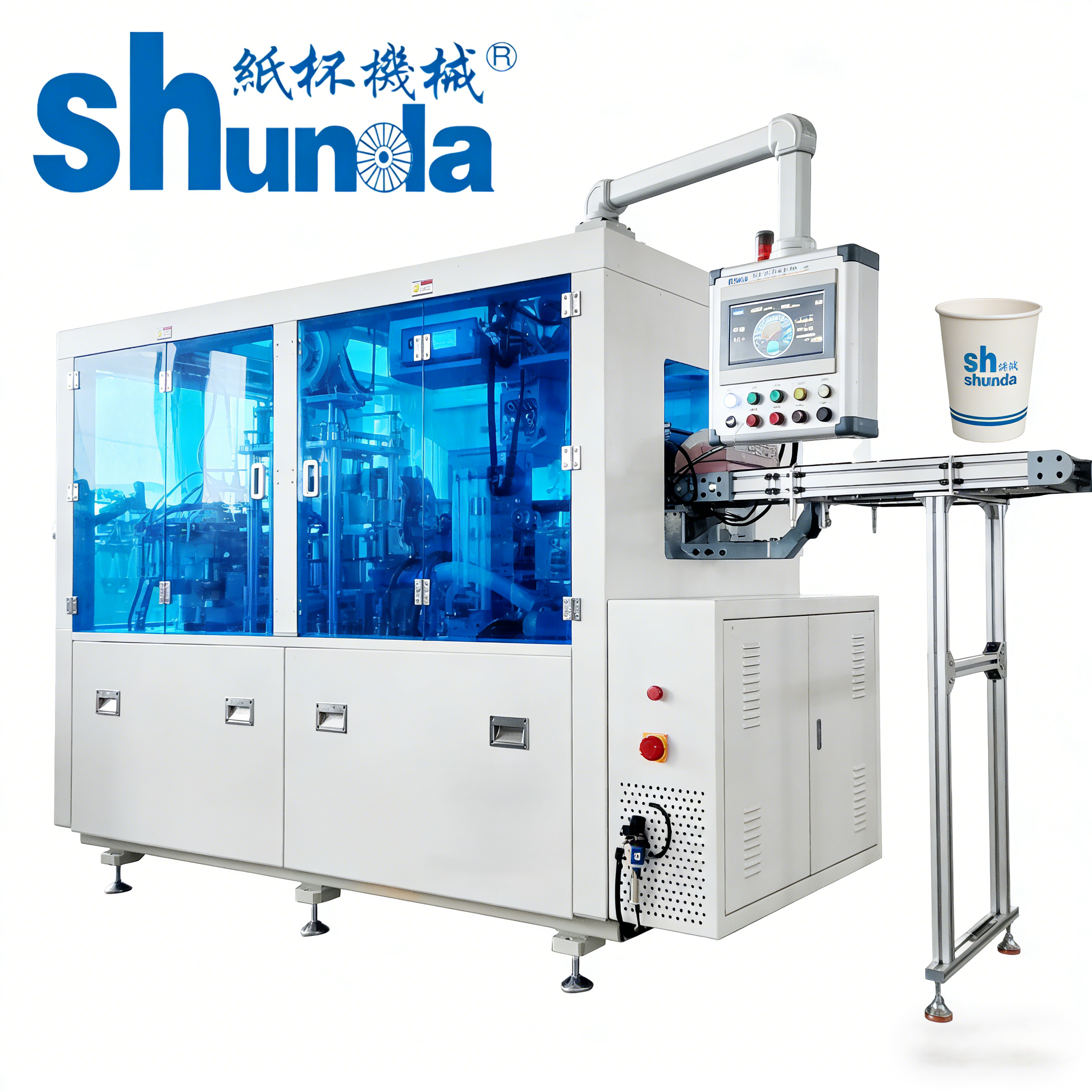

Single / Double PE Coated High Speed Servo Paper Cup Machine For Coffee / Tea
Key Attributes
Product Summary
Single / Double PE Coated High Speed Servo Paper Cup Machine For Coffee / Tea SpecificationsModel SMD-90Capacitypcs/min140-160120-140100-130Cup Size Rangemm(max)D1:40 (min)D1: 90D1: 110D2: 35 (min)D2:80D2:80H:45 (min)H: 140H: 140Suitable Papergsm135-450Paper Type/Single/Double PE-coated Paper, PLA ...
Product Details
Single / Double PE Coated High Speed Servo Paper Cup Machine For Coffee / Tea
Specifications
| Model | SMD-90 | |||
| Capacity | pcs/min | 140-160 | 120-140 | 100-130 |
| Cup Size Range | mm(max) | D1:40 (min) | D1: 90 | D1: 110 |
| D2: 35 (min) | D2:80 | D2:80 | ||
| H:45 (min) | H: 140 | H: 140 | ||
| Suitable Paper | gsm | 135-450 | ||
| Paper Type | / | Single/Double PE-coated Paper, PLA Plastic Free Paper | ||
| Rated Power | KW | 380V/220V,60HZ/50HZ, 20KW | ||
| Air Compressor | / | 0.4 M³/Min 0.5MPA | ||
| Net Weight | Kg | 3500 | ||
| Machine Dimension | mm | 2500*1800*2000 | ||
| Collector Dimension | mm | 1000*900 *1760 | ||
Advantage:
1.It has 4 sets of original imported hot air system heater guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Imported Janpan photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6.4 Servo motors control the whole production
Product Description of Automatic Middle Speed Paper Cup Machine for Hot and Cold Drink Cup
Company Profile
Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional paper container equipment manufacturer integrating R&D, production and sales. With many years of industry experience, we own a strong technical team and R&D center, holding multiple national patents for core machines.
Equipped with modern workshops and professional quality control centers, we develop intelligent molding machines with international advanced tech, featuring automatic detection and remote connection systems.
Our main products include paper cup/bowl/tube/lid machines, doner box machines, skiving machines and other paper packaging equipment.
We operate a complete 6S service system, offering one-stop support from sales to after-sales, customized solutions and training. Focused on customer needs, we win high recognition from global clients in the industry.
Chengda Machinery,the paper container making machine expert!
Detail pictures
FAQ
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
