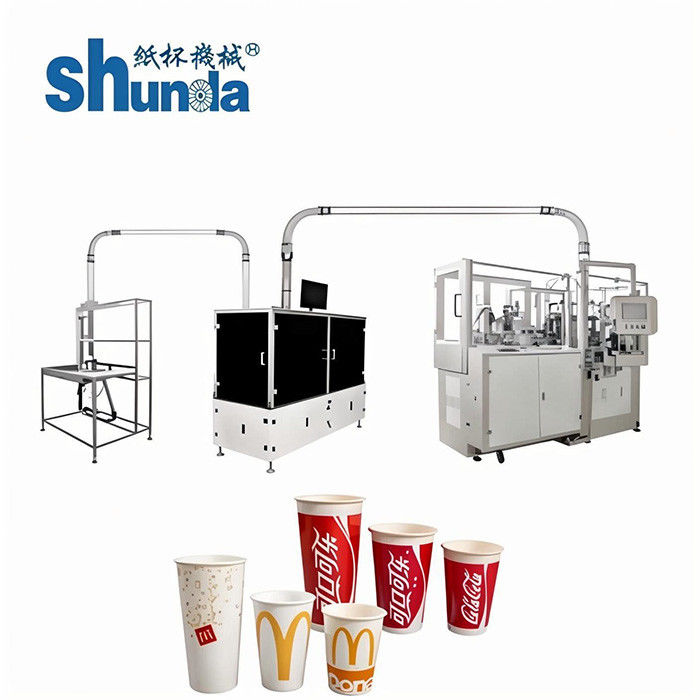

PLC Control High Speed Paper Cup Machine With Automatic Counting System
Key Attributes
Product Summary
Product Pictures of paper cup machine Product Description of paper cup machine MODEL SMD-90 PAPER CUP MACHINESpeed 90-100 PCS/MINCup size Range 2-24 oz Material Single and Double PE coated paper Paper request Gram 135-450GSM(single and double PE coated paper) Heating system Hot air system (from ...
Product Details
paper cups making machines
,disposable cup making machine

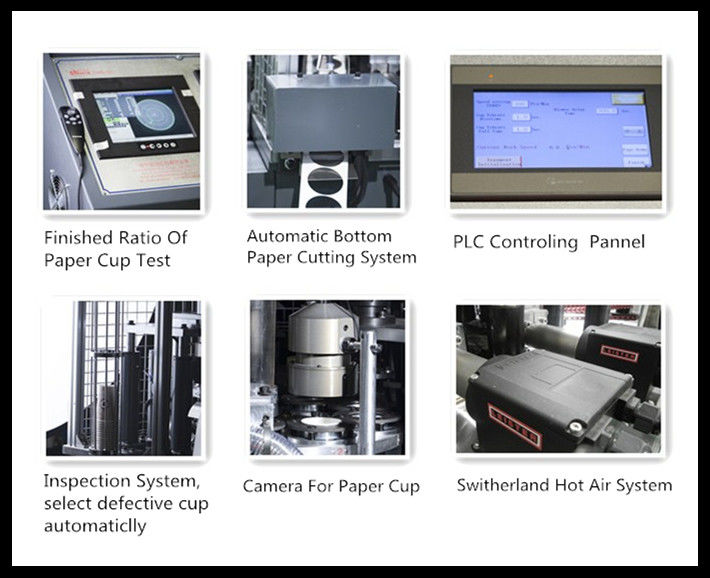

Product Pictures of paper cup machine
Product Description of paper cup machine
MODEL | SMD-90 PAPER CUP MACHINE |
Speed | 90-100 PCS/MIN |
Cup size Range | 2-24 oz |
Material | Single and Double PE coated paper |
Paper request Gram | 135-450GSM(single and double PE coated paper) |
Heating system | Hot air system (from Switzerland) |
Output | 380V/220V 16 KW,50HZ, Three Phase four wire |
Air compressor | 0.5 M³/Min |
Net weight | 3.5 TONS |
Machinery Size | 2500 ×1800 ×1700 MM |
Counter Size | 900 ×900 ×1760 MM |
Output
Normal Running Speed | 90 pcs/min | 50 pcs/min | 40 pcs |
1 Day(12 Hours) | 90pcs*60min*12hours=64800 pcs | 50pcs*60min*12hours=36000 pcs | 28800pcs |
1 Week (5 Days) | 64800pcs*5days=324000pcs | 36000pcs*5days=180000pcs | 144000pcs |
1 Mouth(22 Days) | 64800pcs*22days=1425600pcs | 360000pcs*22days=792000pcs | 633600pcs |
You can create 633600 piece paper cup more than normal speed machine as profit each mouth
Paper cup making process
1. Q: Is your company a factory or trading company?
A: Our company is a manufacturer.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1).All raw material we used are environmental-friendly; 2).Skilful workers care every details in handling the producing and packing processes; 3).Quality Control Department specially responsible for quality checking in each process.
Contact person: Suki Wang 008613586301909
We will reply your email or fax within 24 hours.
You can call us at any time if there is any question on our production.
