OEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine Supplier

OEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine Supplier

Key Attributes

Brand Name:Shunda
Model Number:HSM-200
Place of Origin:China
Minimum Order Quantity:1 SET
Price:negotiation
Supply Ability:20 SETS per month
Delivery Time:30 working days after received your payment
Payment Terms:T/T or L/C
Standard Packaging:wooden pallet for paper cup machine

Product Summary

OEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine Supplier Specifications: Description: Chengda Semi‑Servo Paper Cup MachinePrecision. Stability. Efficiency.Upgraded with servo control for smoother, more accurate performance.3‑station curling for stronger, better‑finished cups...

Product Details

Highlight:

paper cups making machines

,

machine for paper cup production

Product Name: High Speed Paper Cup Machine
Color: White Or Customized
CUP Thickness: 0.3-0.47 MM
Speed: 130-160 Pcs/min
Material: Single/Double PE Coated Paper
Extra: Can Connect With Inspection System
AIR COMPRESSOR: 0.5 M³/Min
PKG: 2 PCS
Product Description
Detailed Specifications & Features

OEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine Supplier

Specifications:

OEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine Supplier




Description:


Chengda Semi‑Servo Paper Cup Machine

  • Precision. Stability. Efficiency.

  • Upgraded with servo control for smoother, more accurate performance.

  • 3‑station curling for stronger, better‑finished cups.

  • Dual‑cam integrated structure for higher output and lower noise.

  • Energy‑saving, compact, and professionally designed.

Where innovation meets reliability.




Finished Product Range:

· Top Diameter: 65 - 95mm
· Bottom Diameter: 54 - 80mm
· Total Height: 90 - 150mm
 Other sizes upon request


Cup size

OEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine Supplier

OEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine SupplierOEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine SupplierOEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine SupplierOEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine Supplier

Applications:

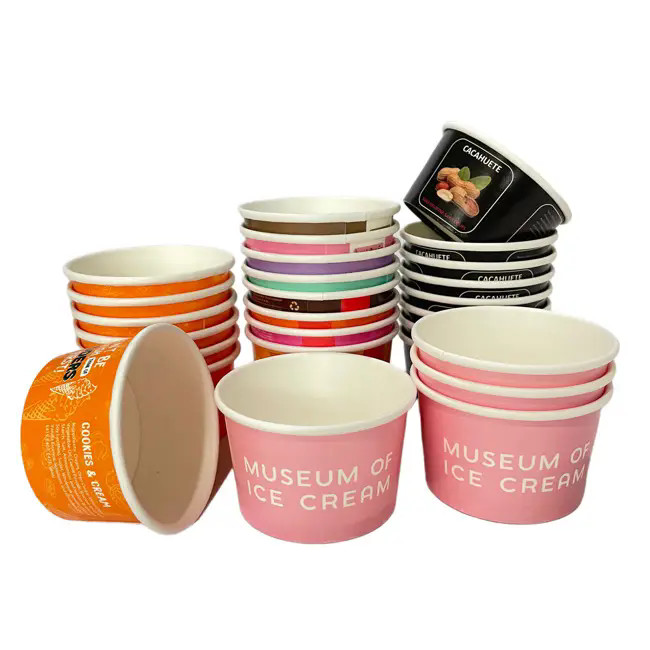

Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc

OEM Paper Cup Making Machine High Speed Double Wall Cup Forming Machine Supplier

FAQ

1. about machine
Q: What is a paper cup machine, and what are its core working steps?
A: A paper cup machine is automated equipment for producing disposable paper cups. It processes PE - coated paper blanks and bottom paper rolls into finished cups through these key steps: paper feeding → sealing (heat / ultrasonic) → bottom forming → curling → quality inspection → packaging

2. about raw material
Q: What raw materials are needed for a paper cup machine? What GSM is suitable?
A: Required materials: single / double PE - coated pre - cut and printed fan - shaped paper, bottom paper rolls, food - grade silicone oil, and a small air compressor. The typical GSM range is 150–180 for small cups and 180–310 for large / double - wall cups, balancing sturdiness and cost.


3. Mold Change & Cup Size Flexibility

Q: Can one machine make multiple cup sizes? How to change molds?
A: One machine comes with one standard mold set. To make different sizes, you can buy extra half - set molds (easy to replace) or full - set molds (difficult, low success rate). It is recommended to change 1-2 half-set ofmolds with the same bottom diameter. Frequent mold changes will prolong downtime and damage parts, especially for high - speed machines.
