Customized Intelligent Paper Tea Cup Making Machine Single PE Coated Paper

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Export wood case
Delivery Time: 30-45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 20 SETS per month
Detail Information
Product Name: Paper Tea Cup Making Machine Color: White, Grey, Any Color As Client Request
CUP SIZE: 4-46oz Speed: 120pcs/min
Material: Single PE Coated Paper CONFIGURATION: Ultrasonic And Air Heater
OUTPUT: 380V/220V,60HZ Machine Size: 2700*1500*1500
High Light:

paper cups manufacturing machines


disposable cup thermoforming machine

Product Description

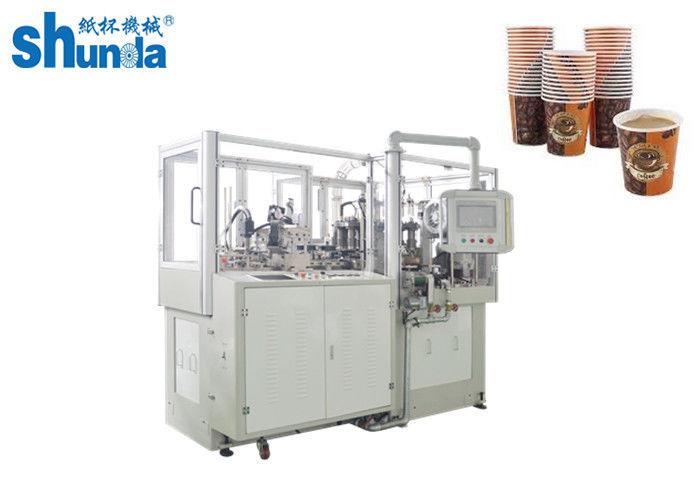

Custom Intelligent Paper Tea Cup Making Machine Single PE Coated Paper







Single PE coated paper cup machine is the automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom-punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment of producing drinking cup, ice-cream cup and other food cone-shaping containers. This type paper cup machine mainly used to making one side PE coated paper cups from 4oz to 46oz.






Full automatic

Automatic control adopts optically controlled non-contact switch
Micro-controlled transducer
Step-less speed adjustment
Paper Cup-fan-wall body sealed by heater
Paper Cup bottom sealed by heater.
Easy changing molds produce different sizes paper cups
Easy operating by operator (one operator is enough)
Easy maintenance with minimum cost
Cheap operating cost and low investment


Technical Parameters:


Model SMD-90
Speed 100-120 pcs/min
Cup size Top Diameter: 60mm(min)-125mm(max)
Bottom Diameter: 45mm(min)-100mm(max)
Height: 60mm(min)-170mm(max)
Raw material 135-450 GRAM
Output 12KW,380V/220V,60HZ/50HZ
Air compressor 0.4 M³/Min 0.5MPA
Net weight 3.4 TONS
Dimension of machine 2500×1800 ×1700 MM
Dimension of cup collector 900 ×900 ×1760 MM


Customized Intelligent Paper Tea Cup Making Machine Single PE Coated Paper 0


Machine Running Video



Paper cup making process

Customized Intelligent Paper Tea Cup Making Machine Single PE Coated Paper 1






1. Is your company a factory or trading company?

---Our company is a factory, also have export license.

2. Where is your factory located? How can I visit there?
---Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !
3. How does your factory do regarding quality control?
---Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
4. Will you teach how to use the machine?
---Yes, engineers available to service machinery overseas or learn in our factory.
5. How about the shipment?
---Normally 30-40 days after confirming order, detail delivery date should be decided according to production season and order quantity.
6. Which payment term do you accept? ---T/T, L/C
7. Do you have warranty?
---1 year for electronic parts from shipment date; 3 years for mechenical parts from shipment date.
8.Do you have OEM/OEM service?
---Yes, OEM/ODM service are available here. We can make some changes on machine according to your requirements.
