Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE, ISO9001
Model Number: SMD-80A
Minimum Order Quantity: 1 set double wall paper cup machine
Price: negotiable
Packaging Details: Standard seaworthy packing, pp film+woode plate+wooden case
Delivery Time: 35-45 working days after confirmed cup size and received deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 18 sets per month
Detail Information
Product Name: Paper Cup Sleeve Machine Speed: 80-100pcs/min
Material: Single/Double PE Coated Paper CONFIGURATION: Leister Hot Air
Control: PLC Intelligent: Touch Screen
Eletricity Brand: Evergreen Air Compressor: 0.4 M³/Min 0.5MPA
Dimension Of Machine: 2500×1800 ×1700 MM Dimension Of Cup Collector: 900 ×900 ×1760 MM
High Light:

high speed paper cup machine

,

disposable cup making machine


Product Description

Paper Cup Sleeve Machine,automatic paper cup sleeve machine with

ultrasonic system,Leister heater,digital control





Specification



MODEL SMD-80A
SPEED 80-100PCS/MIN
CUP SIZE 6-22OZ
MATERIAL 135-450GRAM
CONFIGURATION ULTRASONIC&HOT AIR
OUTPUT 10KW,380V/220V,60HZ/50HZ
AIR COMPRESSOR 0.4 M³/Min 0.5MPA
NET WEIGHT 3.0TONS
MACHINE SIZE 2500 ×1800 ×1700 MM
COUNTER SIZE 900 ×900 ×1760 MM





Description



Paper Cup Sleeve machine  is great thermal insulation container.
Our company developed fast speed double wall paper Cup machine, using Gear working, it has better promotion for noise,speed,stability .





Application

Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup double wall sleeving,etc





Highlights

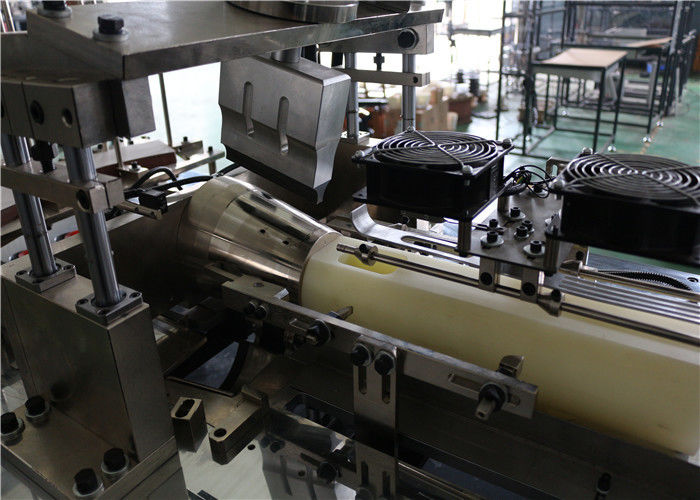

Rubber tube: set up after the side sealing, when the cups finished cup side sealing, can fix the cup
posiion. And the fans are foldable, when you change the paper fan thickness and adjustment, it is
easy to take the cups out.



Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control 0Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control 1





Paper fan delivery: our factory special design for paper fan delivery. A lot of small ball at the bottom, instead of chain or block, can efficient avoid paper fan jam.



Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control 2Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control 3





Open cylindrical cam: Our factory is the first one using two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on the machine, our factory will test running one week, to ensure each bearing at the suitable station.



Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control 4Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control 5





PLC control system: controlled by simple and efficient PLC system.



Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control 6





FAQ



1. Q: Is your company a factory or trading company?

A: Our company is a factory.



2. Q:Where is your factory located? How can I visit there?

A: Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !



Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control 7



3. Q: How does your factory do regarding quality control?

A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end:

1).All raw material we used are environmental-friendly;

2).Skilful workers care every details in handling the producing and packing processes;

3).Quality Control Department specially responsible for quality checking in each process.



4. Q: How about after sale service?
1).The CD and service& support guide booklet will be sent with machine to guide the installation process works, adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2). We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance!
3).We supply the free training of buyer, the training won’t stop until the buyer control the whole lesson. The cost of air ticket, boarding and lodging should provided by buyer.





Paper Cup Sleeve Machine,automatic paper cup sleeve machine with ultrasonic system,Leister heater,digital control 8
