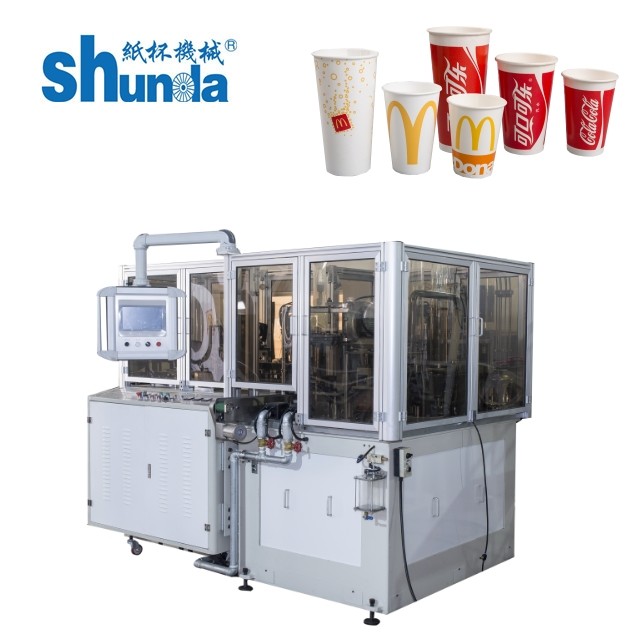

Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control

Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control

Key Attributes

Brand Name:Shunda
Model Number:SMD-90
Place of Origin:China
Certification:SGS
Minimum Order Quantity:1 SET
Price:negotiation
Supply Ability:20 SETS per month
Delivery Time:25 working days after received your payment
Payment Terms:T/T or L/C
Standard Packaging:Export wood pallet for paper cup machine

Product Summary

Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control Shunda is a professional paper cup/bowl and container supplier, focusing on paper cup forming solution for over 26 years. We supply customers smarter, more intelligent paper container solutions. Description SMD-90 paper cup ...

Product Details

Highlight:

paper cup making machinery

,

paper cups manufacturing machines

Product Name: Paper Tea Cup Making Machine
Color: White Or Customized
CUP SIZE: 2-46oz
Speed: 40-50pcs/min
Material: Single/Double PE Coated Paper
CONFIGURATION: ULTRASONIC&HOT AIR
OUTPUT: 380V/220V,60HZ
MATERIAL: 135-450GRAM
Product Description
Detailed Specifications & Features

Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control

Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control

Shunda is a professional paper cup/bowl and container supplier, focusing on paper cup forming solution for over 26 years. We supply customers smarter, more intelligent paper container solutions.



Description



SMD-90 paper cup making machine is an improved and upgraded machine of the low speed types. In order to realize optimal functions and performance, it utilizes open cam design, interrupted division, gear drive and longigudinal axis structure.

It could produce 3-46 oz cold and hot drink paper cup, such as coffee cup ,tea cup , water cups etc .especially it is popular for making small coffee cup 3oz for Algeria market.





Shinning points for this model SMD-90 Paper cup making machine



a.Advanced double barrel cam indexing

b.PLC colsed-loop control system

c.Automatic oil lubrication system

d.Cup inspection and intelligent control

e. Servo control for bottom feeding

f. Flameless hot air sealing





Specifications



Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Height:140
Top diameter:110
Bottom Diameter:80
Height:170
Top diameter:125
Bottom Diameter:100
Height:170
Suitable Paper Thickness gsm 135-450
Sealing Method   Ultrasonic and hot air system
Running Power KW 10 11 12
Air compressor   0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860





Application



Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control



Production Process



Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC ControlUltrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control



Installation service



1.oversea engineer support is available

2.Free training in Chengda factory

3.Video and drawing support service





Lead Technology

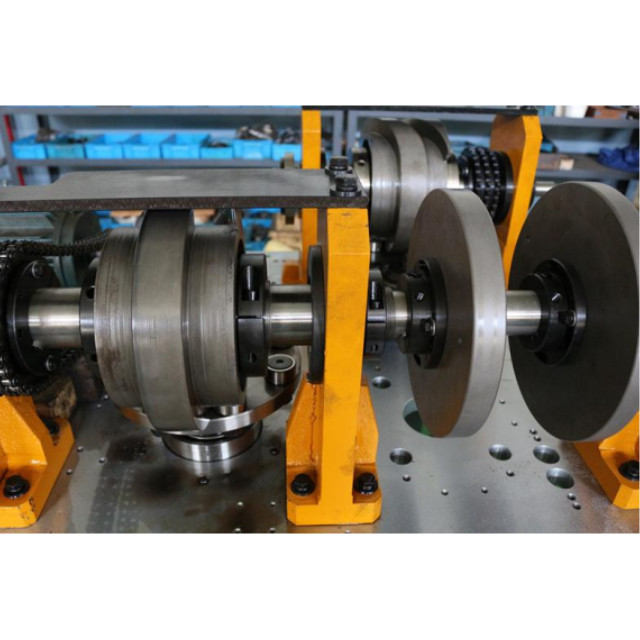

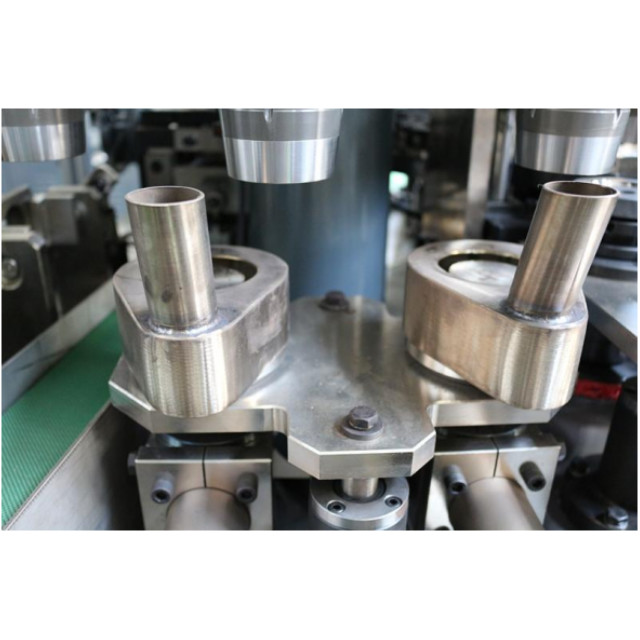

Gear Transmission                   Open Cam Drive                      Two Servo motor System

Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control            Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control             Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control



The whole Oil Lubricatoin          PLC control System          Photoelectric detection system

Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control            Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control            Ultrasonic Sealing Paper Tea Cup Making Machine With Mitsubishi PLC Control





Machine video



Max speed of 160 pcs/min paper cup making machine.    https://www.youtube.com/watch?v=3vboPdSjjAo
