Paper Tea Cup Making Machine,Shunda high quality paper tea cup making machine USD9800 only.
Key Attributes
Product Summary
Paper Tea Cup Making Machine,Shunda high quality paper tea cup making machine USD9800 only. Description SMD-90 is designed to produce single and double PE coated paper cups for cold and hot drinking cups. Inspection system can detect such as paper cup dirty, open rim and other defects. Specification ...
Product Details
paper cup making machinery
,paper cups manufacturing machines
Paper Tea Cup Making Machine,Shunda high quality paper tea cup making machine USD9800 only.
Description

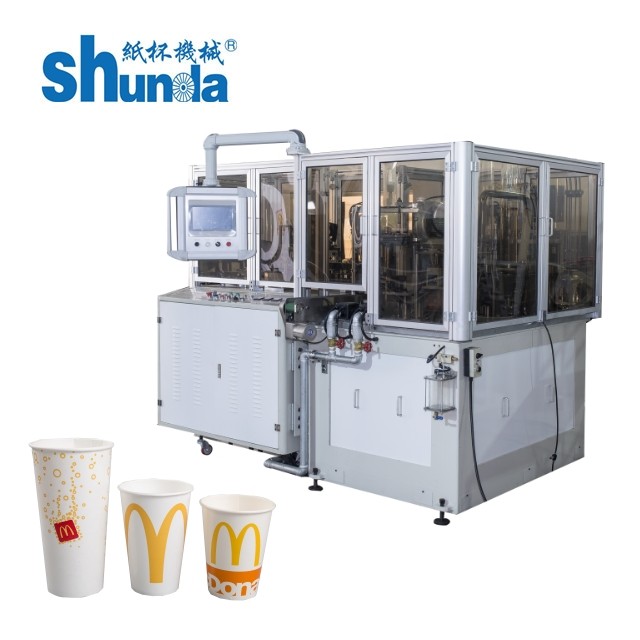

SMD-90 is designed to produce single and double PE coated paper cups for cold and hot drinking cups. Inspection system can detect such as paper cup dirty, open rim and other defects.
Specification
| Model | SMD-90 | |||
| Capacity | pcs/min | 100-120 | 90-110 | 80-100 |
| Size Range | mm(max) | Top diameter:90 Bottom Diameter:80 Height:140 |
Top diameter:110 Bottom Diameter:80 Height:170 |
Top diameter:125 Bottom Diameter:100 Height:170 |
| Suitable Paper Thickness | gsm | 135-450 | ||
| Sealing Method | Ultrasonic and hot air system | |||
| Running Power | KW | 10 | 11 | 12 |
| Air compressor | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa | |
| Net weight | Kgs | 3400 | 3500 | 3600 |
| Machine dimension | mm | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
| Collector Dimension | mm | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
Advantages
| 领先技术 Leading Technoloyg | |||
| 专业双圆柱凸轮驱动 | Advanced double barrel cam indexing | ||
| PLC智能闭环控制 | PLC closed-loop control system | ||
| 全自动润滑,适用24小时工作 | Automatic oil lubrication system | ||
| 纸杯在线检测 | Cup inspection and intelligent control | ||
| 伺服送底纸 | Servo control for bottom feeding | ||

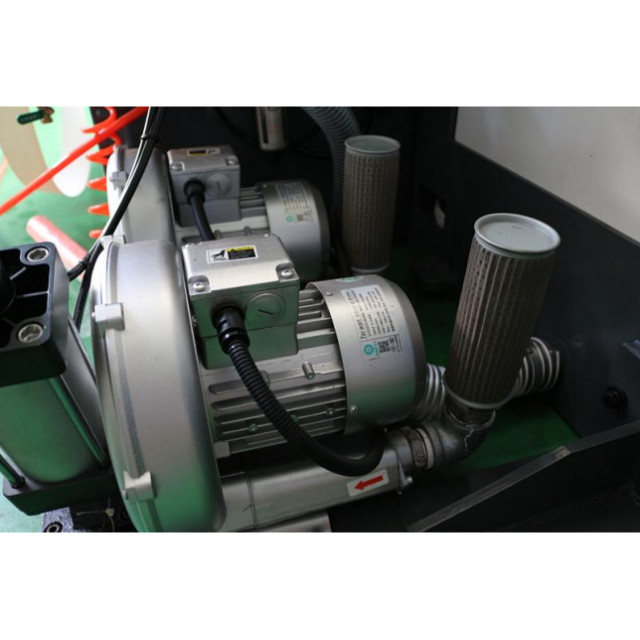

| 无焰热风封合 | Flameless hot air sealing | ||
Applications

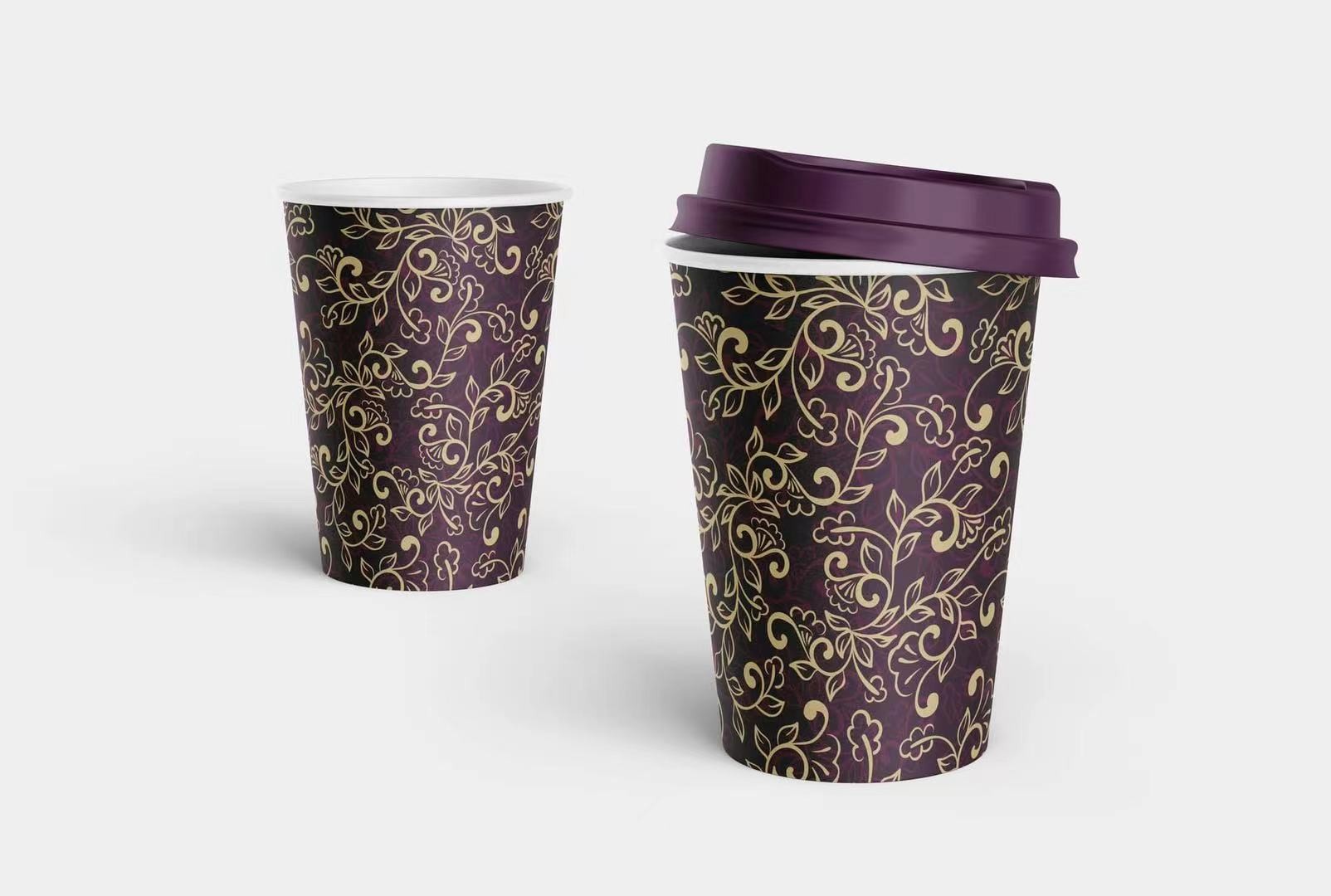

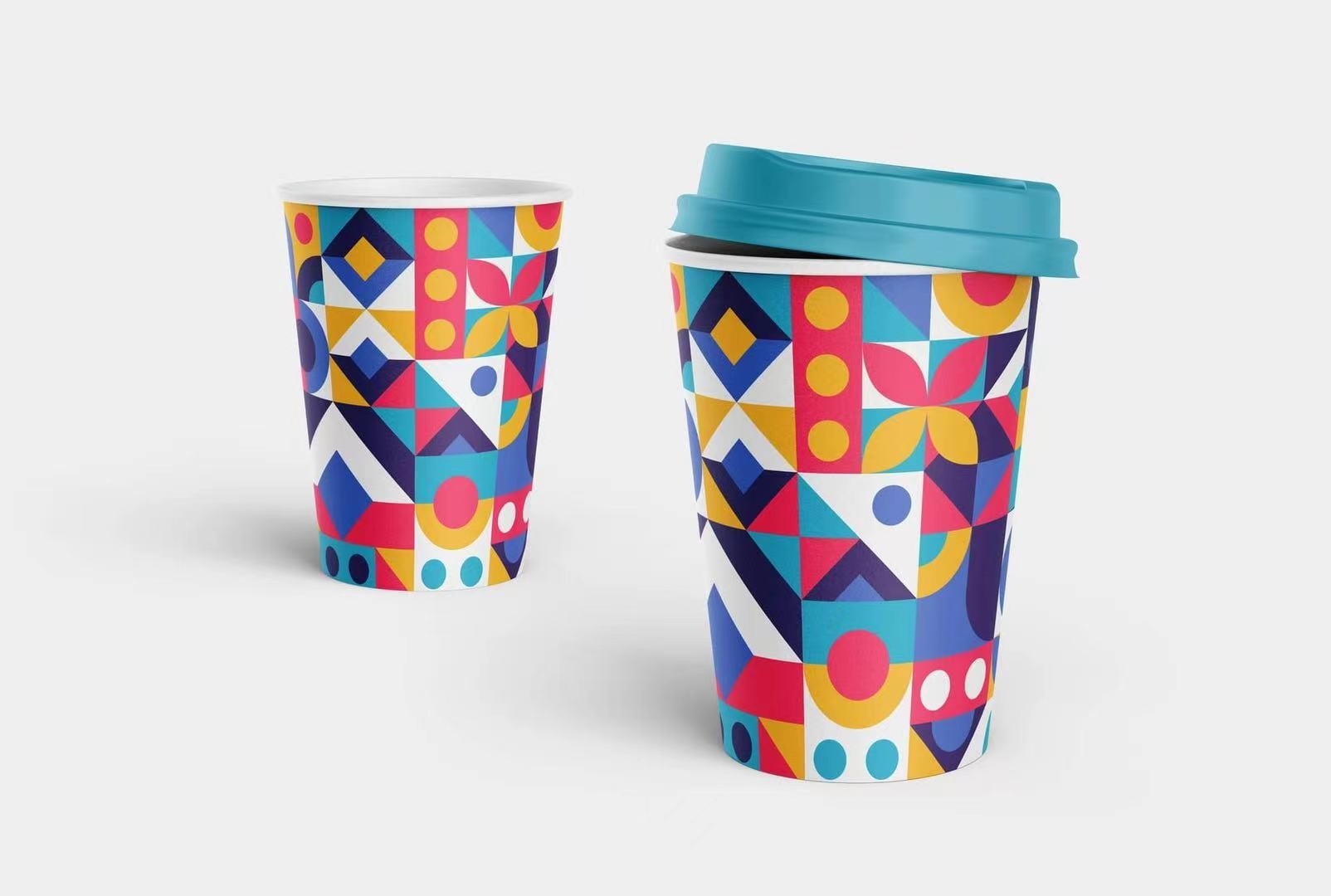

This paper cup machine could make hot and cold drinking cup, as well as tea cup, coffee cup, beverage cup and so on. Paper could be single or double PE coated.
Highlights
Quality control
1).All parts are inspected then applied
2).10 year experience assembly workers,always follow strict quality rules
3). 3 years warranty, 7 day 24 hour service availble.
Locate us--1.5 hours drive from Shanghai Pudong Airport.
