Mid-Speed Disposable Paper Cup Forming Machine - 160 Cups/Min Max, 100-130 Cups/Min Stable

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: ZBJ-9A
Minimum Order Quantity: 1 SET
Packaging Details: wooden pallet for paper cup machine
Delivery Time: 30 working days
Supply Ability: 15 sets/month
Detail Information
Speed: 110-130pcs/min Material: 135-300gram(single And Double PE Coated Paper )
Cup Size: 2-46oz Output: 220/380v 50HZ 414KW
Heating System: Hot Air Heating And Ultrasonic System
Highlight:

paper cup making machinery

,

paper cups manufacturing machines


Product Description

Mid-Speed Disposable Paper Cup Forming Machine - 160 Cups/Min Max, 100-130 Cups/Min Stable

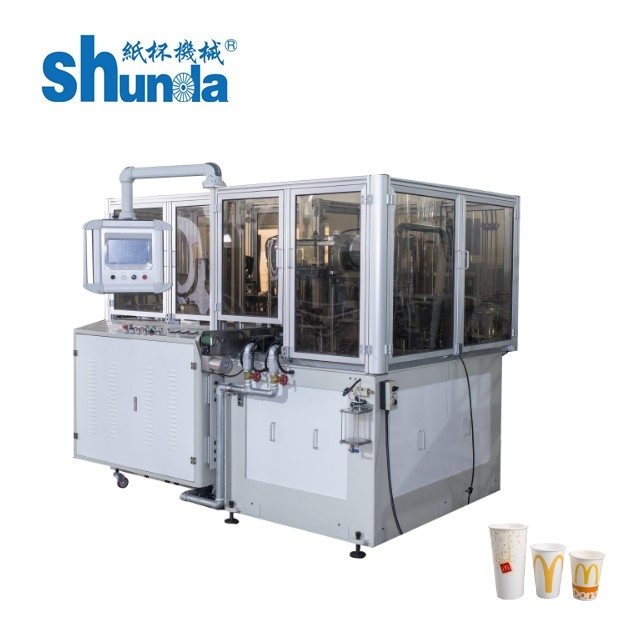

Mid-Speed Disposable Paper Cup Forming Machine - 160 Cups/Min Max, 100-130 Cups/Min Stable 0



1.Machine introduction of cup machine



Countries with a high demand for disposable products include those with significant coffee consumption, such as Brazil, Switzerland, Colombia, and Vietnam, where the popularity of coffee culture drives the demand for disposable paper cups. Additionally, countries where fast-food culture is prevalent, like the United States and China, tend to have a higher demand for disposable paper bowls, as they are commonly used in street food and casual dining settings.





2.Techinical Specifications



Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Height:140
Top diameter:110
Bottom Diameter:80
Height:170
Top diameter:125
Bottom Diameter:100
Height:170
Suitable Paper Thickness gsm 135-450
Sealing Method   Ultrasonic and hot air system
Running Power KW 10 11 12
Air compressor   0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860







♦ Advantages

  1. Quality assurance both for our products and service for after-sales.
  2. Favorable price.
  3. Great variety of products.
  4. Attractive design.
  5. Environment Friendly Technology
  6. OEM and ODM service provided.

♦ Our QC team



A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.





Working principles:



1. Square paper pieces be printed(use offset printer)and cut(use die-cutting machine)in

advance, becomes cup-fan-wall-papers to make cup body.

2. Paper sender delivers the cup-fan-wall-papers to molds, sealing the body.

3. The cup bottom paper (reel) automatic feed to the bottom cut parts, be cut into round

pieces and sent to molds with the sealed cup body.

4. Pre heating the cup bottom, bottom heating, curlinging the top edge.

5. Sealing the bottom with body.

6. Knurling the cup bottom.

7. Discharging finished cups automatically from molds. Sending to collector and be collected

and piled and counted automatically


Mid-Speed Disposable Paper Cup Forming Machine - 160 Cups/Min Max, 100-130 Cups/Min Stable 1



FAQ



1. Q: Is your company a factory or trading company?

A: Our company is a factory.



2. Q:Where is your factory located? How can I visit there?

A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai

.All our clients, from home or abroad, are warmly welcome to visit our company !



3. Q:How does your factory do regarding quality control?

A:Quality is priority. Shunda people always attach great importance to quality controlling from the very

beginning to the very end: 1).All raw material we used are environmental-friendly; 2).Skilful workers care

every details in handling the producing and packing processes; 3).Quality Control Department specially

responsible for quality checking in each process.





Introduction of our company

ZBJ -9A small Paper Tea Cup Making Machine all through quenching treatment

Our company established in 1998,has been 26 years.We sale machine over 32 countries, in Algeria the large paper cup company MTP /ATP all have our more than 60 machines.You can be at ease about our machine quality,we have client bought our machine 13 years ago still keep it working well.

We support 3 years warranty and free training.Any problem of the mechanical part we will send you the spare part for 3 years for free.Because our machinery all produced by ourselves,we have our own workshop,have faith of our machine quality.
