| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE,ISO9001 |
| Model Number: | SMD-90 |
| Minimum Order Quantity: | 1 set |
| Price: | USD 13500 -- 14500 per set |
| Packaging Details: | standard seaworthy package,with waterproof film,wood plate&box |
| Delivery Time: | 18-21 days |
| Supply Ability: | 12 sets per month |
| Speed: | 100-160cups/min | Cup Size: | 2-46oz |
|---|---|---|---|
| Paper Type: | Single/double PE Coated Paper | Paper Weight: | 135-450gsm |
| Heating Mode: | EVERGREEN Ultrasonic System | Main Functions: | Cup Body Sealing,bottom Knurling,hemming |
| High Light: | high speed paper cup machine,disposable cup making machine |
||
Specification
| Model | SMD-90 | |||
| Capacity | pcs/min | 100-120 | 90-110 | 80-100 |
| Size Range | mm(max) | Top diameter:90 Bottom Diameter:80 Height:140 |
Top diameter:110 Bottom Diameter:80 Height:170 |
Top diameter:125 Bottom Diameter:100 Height:170 |
| Suitable Paper Thickness | gsm | 135-450 | ||
| Sealing Method | Ultrasonic and hot air system | |||
| Running Power | KW | 10 | 11 | 12 |
| Air compressor | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa | |
| Net weight | Kgs | 3400 | 3500 | 3600 |
| Machine dimension | mm | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
| Collector Dimension | mm | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
Description

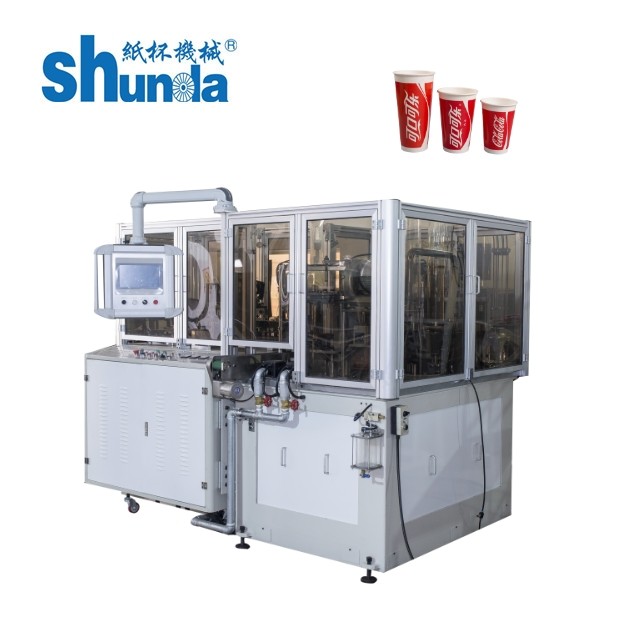

SMD-90 paper cup making machine is an improved and upgraded machine of the low speed types. In order to realize optimal functions and performance, it utilizes open cam design, interrupted division, gear drive and longigudinal axis structure.
It could produce 3-46 oz cold and hot drink paper cup, such as coffee cup ,tea cup , water cups etc .especially it is popular for making small coffee cup 3oz for Algeria market.
Advantage
a.Advanced double barrel cam indexing
b.PLC colsed-loop control system
c.Automatic oil lubrication system

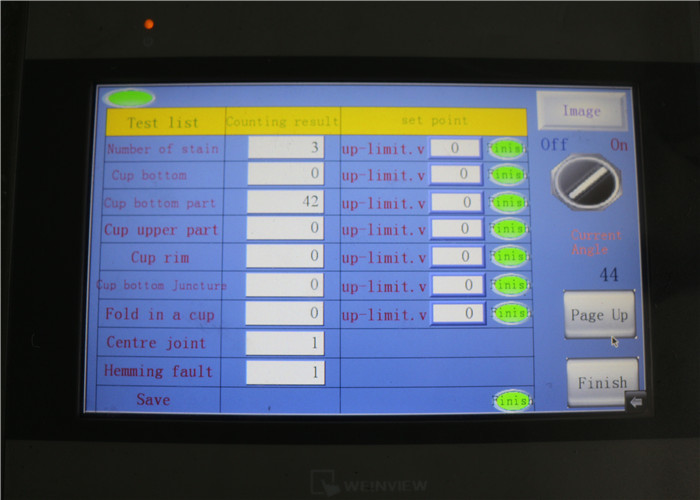

d.Cup inspection and intelligent control
e. Servo control for bottom feeding
f. Flameless hot air sealing
Our QC team
12 Technicians focusing on each step of machine manufaction.
--Material: Strictly control of material using.
--Assembly:Extremely detail drawings and 10 year experienced workers.
--Trial running test:until perfect working condition
--Final inspection:loading and shipping are not our quality ending,we deliver 3 years promise of quality working conditon.
FAQ
1. Q: Is your company a factory or trading company?
A: Factory established in year 1999.
2. Q:Where is your factory located? How can I visit there?
A: Haining City, Zhejiang Province--70 minutes by car from Shanghai.
3. Q:How does your factory do regarding quality control?
A: 3 YEARS warranty promise based on 26 years of experiences and reputation.
The Paper Cup Forming Machine is a fully automatic machine used for manufacturing paper cups, specifically designed for ice cream paper cups. It is manufactured by a renowned company, making it a top choice for businesses in the food and beverage industry.
With dimensions of 2500x1800x1700 mm, this machine is compact and space-saving, making it suitable for small to medium-sized production facilities. It is also equipped with advanced technology, ensuring high precision and efficiency in cup forming.
The automatic grade of this machine eliminates the need for manual labor, increasing productivity and reducing production costs. It can produce up to 80 cups per minute, making it an ideal choice for high-volume production.
The collector dimension of 900x900x1760 mm allows for easy collection and packaging of the formed cups. This feature ensures a smooth and continuous production process, reducing any downtime.
The power supply requirement for this machine is 220V/380V, making it adaptable to different power sources. This flexibility allows it to be used in various locations without the need for additional modifications.
The Paper Cup Forming Machine is designed to use paper with a weight range of 135-450 gsm, making it suitable for producing sturdy and durable paper cups. This versatility allows for the production of different sizes and shapes of ice cream paper cups according to the specific needs of the business.
In conclusion, the Ice Cream Paper Cup Making Machine is a top-of-the-line product that offers precision, efficiency, and flexibility in manufacturing ice cream paper cups. Its automatic grade, compact size, and advanced technology make it a valuable investment for businesses in the food and beverage industry.
