Detail Information

Speed:	120-160pcs/min	Cup Size:	2-32oz
Material:	135-450gram	Configuration:	Ultrasonic Heating
Output:	380V/220V,60HZ	Power:	14Kw
Highlight:	high speed paper cup machine , disposable cup making machine

Product Description

Fully Automatic Disposable Paper Coffee Cup Making Machine 120-160 Pcs/Min

Product description of machine

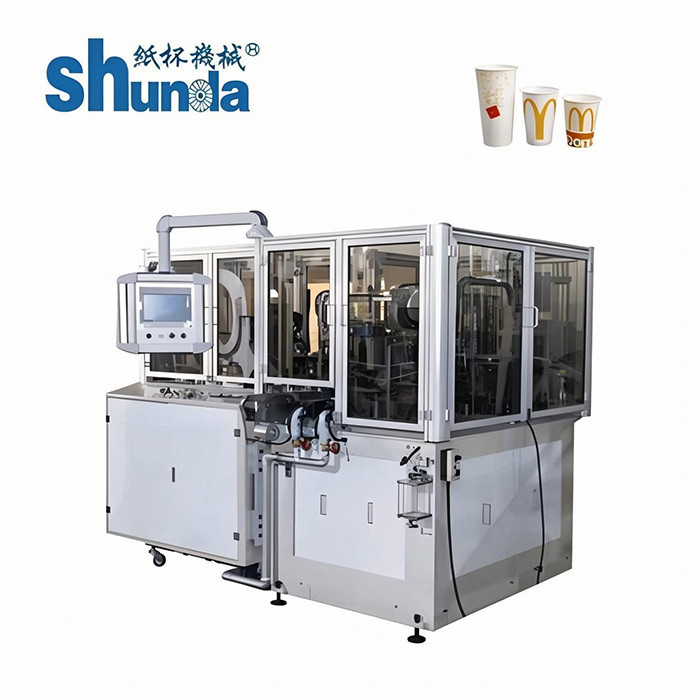

Fully Automatic Disposable Paper Coffee Cup Making Machine 120-160 Pcs/Min 0

Paper cup making process

Fully Automatic Disposable Paper Coffee Cup Making Machine 120-160 Pcs/Min 1

Paper cups simples:

Fully Automatic Disposable Paper Coffee Cup Making Machine 120-160 Pcs/Min 2

About us

Haining Chengda Machinery Co.,LTd always abides by the business strategy of "high-quality products & reasonable price", the service concept of "showing respect to you & trying my best", and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers the best products and services. With a history of over 12 years, ship to more than 100 countries.

Why Choose Us

♦ Advantages

Quality assurance both for our products and service for after-sales.
Favorable price.
Great variety of products.
Attractive design.
Environment Friendly Technology
OEM and ODM service provided

Fully Automatic Disposable Paper Coffee Cup Making Machine 120-160 Pcs/Min 3

FAQ

8. Safety Precautions

Q: What safety measures should I take when operating the machine?A: Operators must wear gloves and goggles; ensure all parts are fastened; follow safety protocols; keep the workspace unobstructed; perform regular safety checks and fix issues promptly.

9. Ultrasonic Sealing vs Heat Sealing: Which Is Better for Paper Cups?

Q: What are the differences between ultrasonic sealing and heat sealing for paper cup machines, and which one should I choose?A: Heat sealing uses thermal energy to melt the PE coating of paper for bonding; it is cost - effective, suitable for standard single - wall cups, but may cause over - sealing or uneven edges if temperature is not controlled. Ultrasonic sealing relies on high - frequency vibration to generate heat for bonding; it offers stronger, more uniform seals, is ideal for double - wall cups or thick PE - coated paper, and has lower energy consumption. Choose heat sealing for low - cost, small - batch production; choose ultrasonic sealing for high - quality, large - volume production of premium cups.

10. How to Adjust the Production Speed of a Paper Cup Machine?

Q: What steps should I take to adjust the production speed of a paper cup machine, and what factors should I consider?A: Adjust speed via the control panel’s speed regulator knob or touchscreen interface (steps vary by model):

Start the machine at low speed and run it idle for 5–10 minutes to warm up components.
Gradually increase the speed, and check cup forming quality (sealing, curling, bottom bonding) after each adjustment.
Lock the speed setting only when stable, qualified cups are produced.

Key considerations: Do not exceed the machine’s rated maximum speed; match the speed to paper quality (thicker paper requires lower speed) and operator proficiency to avoid jams or defective products.

11. Why Do Paper Cups Have Leakage Issues After Production?

Q: What are the main reasons for paper cup leakage after being made by the machine, and how to fix it?A: Leakage is mainly caused by defective sealing or raw material problems:

Causes: Insufficient sealing temperature/pressure, contaminated sealing molds, low - quality PE - coated paper (uneven coating or thin PE layer), misaligned bottom - sealing components.
Solutions: Adjust sealing parameters (increase temperature/pressure moderately); clean molds with alcohol to remove paper dust or residue; replace with qualified food - grade PE - coated paper; realign bottom - sealing dies to ensure full contact.

12. How to Reduce Energy Consumption of a Paper Cup Machine?

Q: What practical ways can I use to cut down the energy consumption of a paper cup machine during daily operation?A: Adopt these 4 effective measures:

Avoid long - term idle running: Turn off the machine promptly when stopping production for more than 15 minutes.
Optimize speed settings: Run the machine at its optimal efficiency speed (not the maximum speed) to balance output and energy use.
Regular maintenance: Lubricate moving parts to reduce friction; clean air filters of the air compressor to lower its load.
Insulate heating components: Use heat - resistant insulation covers on sealing heating plates to reduce heat loss.

13. Can a Paper Cup Machine Process Paper Without PE Coating?

Q: Is it possible to use uncoated paper (without PE coating) on a paper cup machine to make cups?A: No. Standard paper cup machines are designed for PE - coated paper only. The PE (polyethylene) coating acts as a waterproof barrier and a bonding medium for heat/ultrasonic sealing. Uncoated paper lacks water resistance and cannot be sealed effectively—cups made from it will leak immediately when filled with liquid and cannot maintain their shape. If you need eco - friendly alternatives, choose machines compatible with PLA - coated paper (a biodegradable alternative to PE).

Tag:

Place of Origin:	China
Brand Name:	Shunda
Model Number:	SMD-90

Minimum Order Quantity:	1 set
Packaging Details:	Wooden Package
Delivery Time:	30 Working Days
Payment Terms:	L/C, T/T

Fully Automatic Disposable Paper Coffee Cup Making Machine 120-160 Pcs/Min
