Disposable PE Coated Paper Cup Production Machine High Efficiency
Key Attributes
Product Summary
Disposable PE Coated Paper Cup Production Machine High Efficiency Product Description speed 90-100cups/min material 135-350gsm(single and double PE coated paper ) cup size
Product Details
high speed paper cup machine
,disposable cup making machine

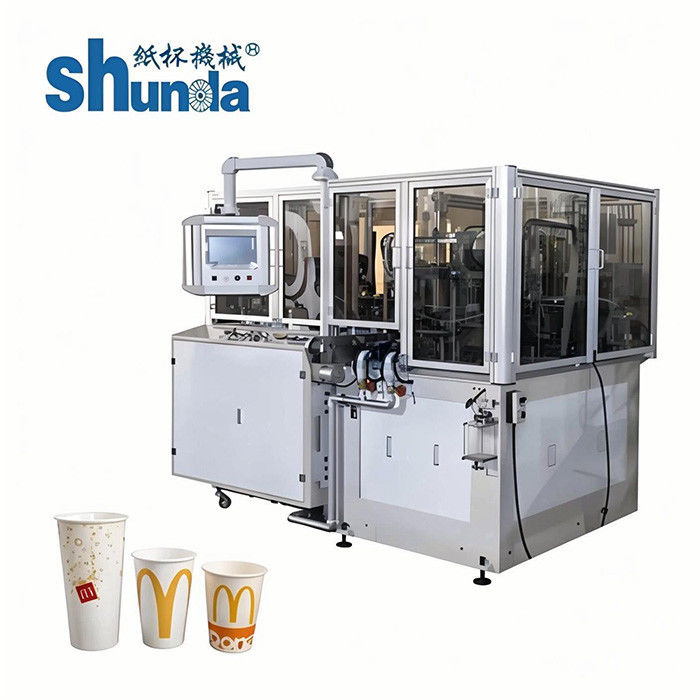

Disposable PE Coated Paper Cup Production Machine High Efficiency
Product Description
| speed | 90-100cups/min |
| material | 135-350gsm(single and double PE coated paper ) |
| cup size | <20oz |
| output | 380/220v 60HZ 12KW |
| glue system | ultrasonci&hot air system |
| description | It can produce both hot and cold drink cups.one labor can control 2 machines at same time,equal to 4 low speed machine.Automation and stability are very high with international standard configuration. |
Production show of paper cup machine
paper cups of disposable paper cup machine/shunda paper cup machiene
Why Choose Us
♦ Advantages
- Quality assurance both for our products and service for after-sales.
- Favorable price.
- Great variety of products.
- Attractive design.
- Environment Friendly Technology
- OEM and ODM service provided.
♦ Our QC team
A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Question: How does a paper cup machine work step by step?
- Paper feeding
Food-grade PE/PLA coated paper rolls are fed into the machine via a feeding unit, and guided by positioning rollers to ensure smooth conveying.
- Blank cutting
The machine cuts the paper roll into individual fan-shaped blanks that match the cup size.
- Body forming & sealing
Blanks are folded into a cylindrical shape, and the overlapping edges are heat-sealed to form the cup body.
- Bottom feeding & bonding
Pre-cut bottom blanks are fed into the station, aligned with the cup body, and thermally bonded to the bottom of the cylinder.
- Rim curling
The top edge of the cup is curled inward to form a smooth, thickened rim for user safety and structural stability.
- Cooling & shaping
The semi-finished cups are cooled to solidify the sealed parts and fix the cup shape.
- Counting & discharging
Finished cups are counted automatically and discharged in batches to the collection zone.
