High Gram Material Paper Tea Cup Making Machine 380V 50HZ 4.8KW Tea And Ice Cream Cup Hot/Cold Drink Cup Making Machine

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: ZBJ-12A
Minimum Order Quantity: 1 Set
Packaging Details: Wooden Package
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 10/month
Detail Information
Material: 135-450gsm Single Or Double PE Coated Paper Speed: 45-50Pcs/Min
Configuration: Ultrasonic Cup Size: 2-32Oz (Mould Replacement Is Available)
Cup Range: Hot /Cold Drink Cup Weight: 1500KG
Output: 380V ,50HZ , 4.8KW Machine Size: 2700*1500*1500MM
High Light:

paper cup making machinery

,

disposable cup thermoforming machine


Product Description



High Gram Material Paper Tea Cup Making Machine 380V 50HZ 4.8KW Tea And



Ice Cream Cup Hot/Cold Drink Cup Making Machine





Description:

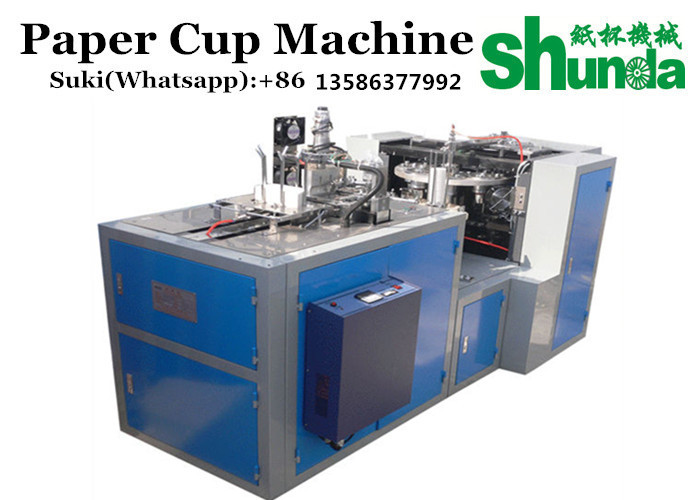

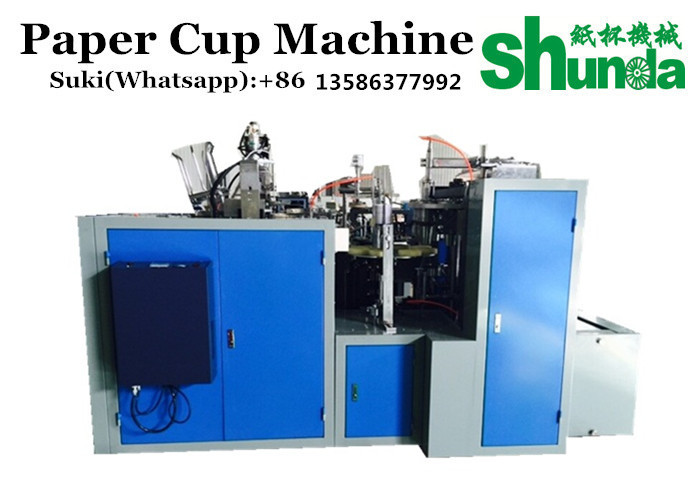

ZBJ-12A is high gram material paper cup forming machine , runs a whole procedure of automatic

paper feeding , cup-fan-wall sealing , oiling , bottom-pressing , rolling , rounding and tripping . We

creat this kind of machine base on the westem customers’ request , it adapt super sonic for heaing .

For a better cup body and bottom connection , we take heating phase into three steps. Cup moul

d replacement is available .



Specification:



MODEL

ZBJ-12A

SPPED

45-50PCS/MIN

MATERIAL

135-450GSM (SINGLE OR DOUBLE PE COCATED PAPER)

CONFIGURATION

ULTRASONIC

CUP SIZE

2-32OZ (MOULD REPLACEMENT IS AVAILABLE)

WEIGHT

1500KG

OUTPUT

380V , 50HZ , 4.8KW

MACHINE SIZE

2700*1500*1500MM





Advantage:



Ultrasonic and hot air system seal the paper body .

Working for 24 hours with no stopping

Just need one worker to operate



High Gram Material Paper Tea Cup Making Machine 380V 50HZ 4.8KW Tea And Ice Cream Cup Hot/Cold Drink Cup Making Machine 0

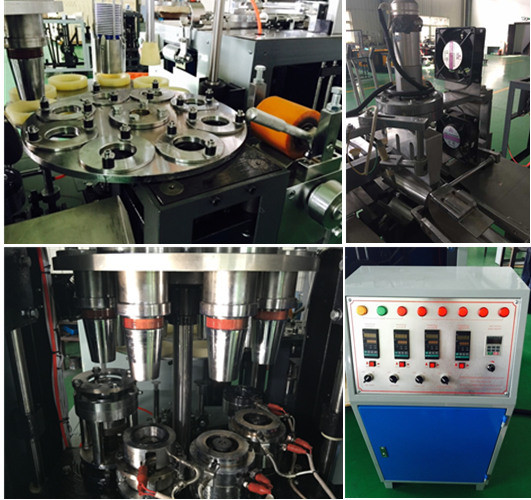

Whole process:





High Efficiency Tea / Juice Paper Cup Forming Machine 40-50 Pcs/Min

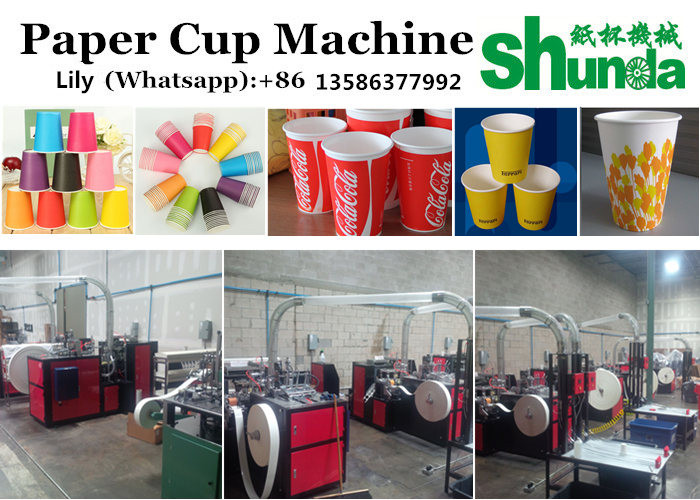

Cup Sample:



High Velocity Ice Cream Disposable Cup Making Machine 380V / 220V 60HZ



About us:



Introduction --



Haining Chengda Machine Co .,Ltd established in 1999,located in Haining City , Zhejiang Province . It is a

professional manufacturer of paper cup machine factory , providing high- quality , comprehensive and advanced technical producting to our customers all over the world . To under

stand the customers ’ request and to learn more advanced technology is the principle for us .





After service:

1 The CD and service&support guide booklet will be sent with machine to guide the installation process

works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.

2.Test run of the machine&training:

We will adjust the machine well for one week before the delivery, ensure the machine has the perfect

performance.

3.We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer in

 charge of the salary, traffic fee, boarding and lodging, communication.

4.Training of buyer in China:

We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The

cost of air ticket,boarding and lodging should provided by buyer

5.We supply the consumable spare parts for free for two years use



Warranty:

1.We warranty against any any defects in design and workmanship for 3 years from the shipment date
2.This warranty won’t be applied to parts which are subject to wear and require normal replacement and

to the durability of condition
3.We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance,

force injury and other reasons beyond our responsibility.





FAQ:



Q1:What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually

offer FOB shanghai price .but we also accept other way like L/C , western union ,and do CFR&CIF etc.


Q2.Where I can get the raw material?
solution1: buy printed and cutted paper cup fan from us
solution2: find the factory in your area to print and cut for you
solution3:buy the flexo printing machine and die cutting machine to print and cut by yourself .
if you are new in this field ,i suggest you'd better to adopt solution 1 or 2 when you are in first stage.


Q3.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one worker ,what you do is just learn some

basic thing like wet the paper cup fan , lubricating the moving parts regularly .And we will sent you

video ,we suggest you to come to visit our factory to learn more thing by yourself for free , and if

there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions

within 24 hrs .Our engineer also can be distributed to overseas as you required.


Q4. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our

quality is good ,in case it broken within one year ,we will sent you for free.
