Self Action Beverage Paper Coffee Cup Making Machine Ultrasonic And Hot Air

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Packaging Details: Wooden Package for paper cup machine
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SET PER MONTH
Detail Information
Material: Single And Double PE Coated Paper Speed: 100-160 Pcs/Min
Configuration: Ultrasonic&Hot Air Cup Size: 2-46Oz
Cup Rang: Hot/Cold Drinks Cup Output: 380V/220V 60HZ
High Light:

cup packaging machine


disposable cup making machine

Product Description

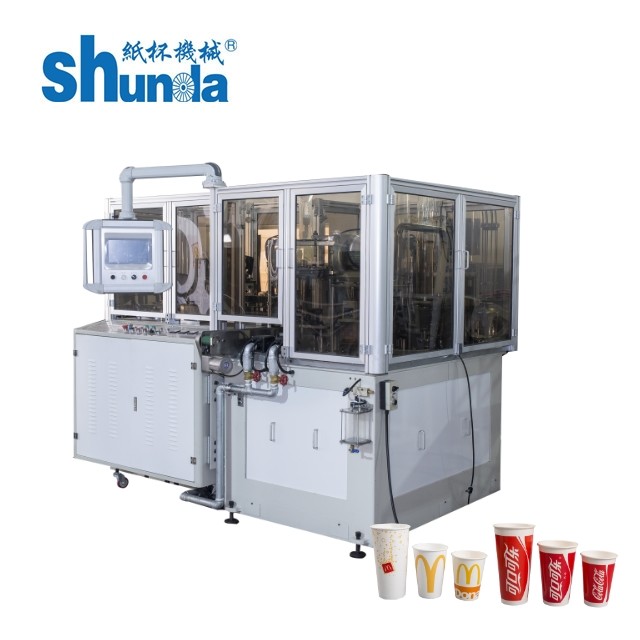

Self Action Beverage Paper Coffee Cup Making Machine Ultrasonic And Hot Air


Self Action Beverage Paper Coffee Cup Making Machine Ultrasonic And Hot Air 0




Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Top diameter:110
Bottom Diameter:80
Top diameter:125
Bottom Diameter:100
Suitable Paper Thickness gsm 135-450
Sealing Method   Ultrasonic and hot air system
Running Power KW 10 11 12
Air compressor   0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860





Shunda is a professional paper cup/bowl and container supplier, focusing on paper cup forming solution for over 26 years. We supply customers smarter, more intelligent paper container solutions.


SMD-90 paper cup making machine is an improved and upgraded machine of the low speed types. In order to realize optimal functions and performance, it utilizes open cam design, interrupted division, gear drive and longigudinal axis structure.

It could produce 3-46 oz cold and hot drink paper cup, such as coffee cup ,tea cup , water cups etc .especially it is popular for making small coffee cup 3oz for Algeria market.



Product Advantage:

1. One machine with one mould for free, the mould size according to buyer’s
2. Divided box: 125’ type, it has the long life than 100’
3. Valve:SMC(Japan)
4. Transducer: Danfoss(Danmark)
5. Machine and eletricity cabinet are seperately, to avoide the dusty and  Eleltricity parts damage by             Vibration, or cable aging.
6. Use Stainless Steel plate, plastics sparying with the machinery surface.
7. Evergreen Ultrasonic(from Taiwan)
8. Chinese brand bearing and speed reducer.


Cup Sample:

Self Action Beverage Paper Coffee Cup Making Machine Ultrasonic And Hot Air 1


After Service:


1 The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2.Test run of the machine&training:
We will adjust the machine well for one week before the deliverying,ensure the machine has the perfect performace!
3.We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer incharge of the salary, traffice fee,boarding and lodging, communication.
4.Training of buyer in China:
We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The cost of air ticket,boarding and lodging should provided by buyer
5.We supply the consumable spare parts for free for two years use





1.We warranty against any any defects in design and workmanship for 3 years from the shipment date
2.This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition
3.We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
