High Speed 100-130 pcs/min Paper Cup Making Machinery Single / Double PE/PLA Coated Paper

Machinery Specification:

SMD-90 Advantages:

1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.

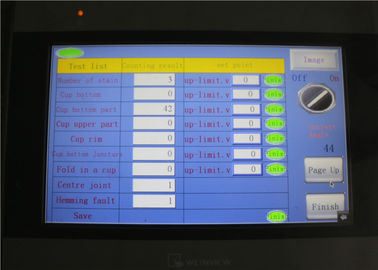

3.Panasonic photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6.Servo motor control the gap of the bottom-paper within 0.1mm.
7.Gear and open cylindrical promote the stability and speed.

Machine Picture.

About Us:

Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998,as Chinese earliest paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed, matured and specialized in machine types as below,

--Middle speed paper bowl machine SMD-80B 70-80cups/min

--Middle speed double wall paper cup machine SMD-80A 100-120cups/min

--High speed paper cup machine SMD-90 100-120cups/min

With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.

How to select my paper ?

Mostly, cup manufacturers use PE coated paper from production. In recent years, PLA coated paper (bio-degradable) also used in certain market along with the rising of environmental awareness. For paper cup industrial, we suggest manufacturers to use minimum PE thickness single PE 18 g/m2 or double PE 18/12 g/m2. According to the common sense of paper cup machinery(Paper thickness is more imortant than base weight). Paper thickness tolerance of each size should be within 0.02 mm.

Ultrasonic or hot air sealing?

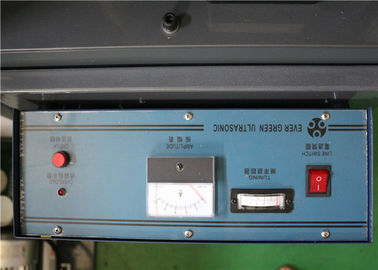

The normal output of ultrasonic is 80 strikes/min.Unless you use costly ultrasonic device. However, the usage of ultrasonic provides clients with larger paper usage choices. We suggest you to choose ultrasonic if your paper supply is relatively thin or with larger thickness difference.

Under stable paper usage conditions, hot air sealing is the main trend and it provides a faster output as well as stable productivity.
