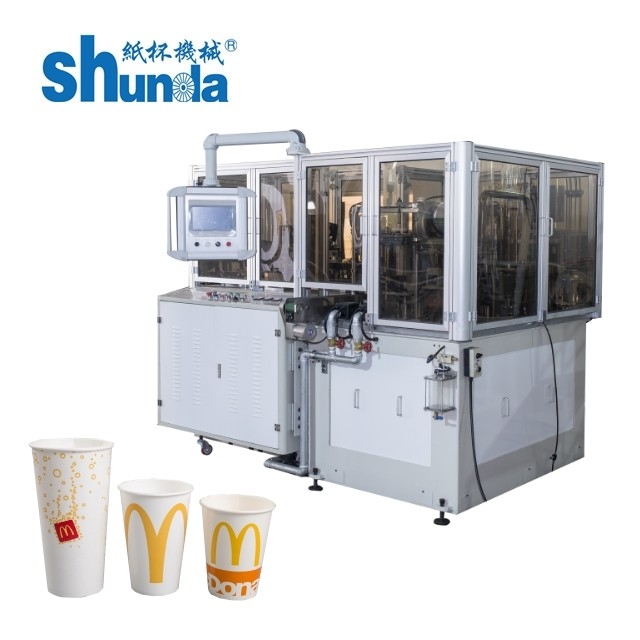

High Speed Durable Paper Coffee Cup Making Machine Speed at 145 cups per minute

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE,SGS,FDA
Model Number: SMD-90
Minimum Order Quantity: 1 set paper cup machine
Price: negotiation
Packaging Details: wood case
Delivery Time: 30-40 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 SETS per Month
Detail Information
Speed: 100-120 Pcs/Min((Max 150pcs/min)) Cup Size: 4-16oz
Raw Material: 135-450 GRAM Configuration: ULTRASONIC & HOT AIR SYSTEM
Output: 12KW,380V/220V,60HZ/50HZ Air Compressor: 0.4 M³/Min 0.5MPA
Weight: 3400kg Dimension Of Machine: 2500×1800×1700 MM
Dimension Of Cup Collector: 900×900×1760 MM
High Light:

cup packaging machine

,

high speed paper cup machine


Product Description

High Speed Durable Paper Coffee Cup Making Machine Speed at 145 cups per minute



Machinery details:



MODEL

SMD-90 PAPER CUP MACHINE

Speed

100-120 PCS/MIN (max 150pcs/min)

Cup size  Range

4-16oz

Material

Single  and  Double  PE coated paper

Paper request Gram

135-450GSM(single and double PE coated paper)

Heating  system

Hot air system (from Switzerland)

Output

380V/220V 12 KW,50HZ, Three Phase four wire

Air compressor

0.4 M³/Min

Net weight

3.4 TONS

Machinery Size

2500  ×1800 ×1700 MM

Counter Size

900 ×900 ×1760 MM





SMD-90 Advantages:


1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.

High Speed Durable Paper Coffee Cup Making Machine Speed at 145 cups per minute 0


2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.

High Speed Durable Paper Coffee Cup Making Machine Speed at 145 cups per minute 1


3.Panasonic photoelectricity checking the every part and report.


4.Open cylindrical can divide locating,heigh precision.


5.Automatically Oil lubrication system .

High Speed Durable Paper Coffee Cup Making Machine Speed at 145 cups per minute 2


6.Servo motor control the gap of the bottom-paper within 0.1mm.

High Speed Durable Paper Coffee Cup Making Machine Speed at 145 cups per minute 3


7.Gear and open cylindrical promote the stability and speed.





About Us:


Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998,as Chinese earliest
paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed,
matured and specialized in machine types as below,

--Middle speed paper bowl machine SMD-80B 70-80cups/min

--Middle speed double wall paper cup machine SMD-80A 80-100cups/min

--High speed paper cup machine SMD-90 100-120cups/min(max 150pcs/min)



With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.





QC team:


A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.

High Speed Durable Paper Coffee Cup Making Machine Speed at 145 cups per minute 4





Certificate

High Speed Durable Paper Coffee Cup Making Machine Speed at 145 cups per minute 5
