Place of Origin: | China |
---|---|
Brand Name: | Shunda |
Certification: | CE |
Model Number: | SMD-90 |
Minimum Order Quantity: | 1 set |
Price: | negotiable |
Packaging Details: | wooden pallet for paper cup machine |
Delivery Time: | 25-35 working days after deposit |
Payment Terms: | T/T or L/C, Western Union, MoneyGram |
Supply Ability: | 20 sets per month |
Product: | Paper Coffee Cup Making Machine | Color: | As Per Requirement |
---|---|---|---|
CUP SIZE: | 2.5-46oz | CONFIGURATION: | ULTRASONIC&HOT AIR |
OUTPUT: | 380V/220V,60HZ | MATERIAL: | 135-450GRAM |
Highlight: | cup packaging machine,disposable cup making machine |
Specifications
Model | SMD-90 |
Speed | 100-120 pcs/min |
Cup size | Top Diameter: 60mm(min)-125mm(max) |
Bottom Diameter: 45mm(min)-100mm(max) | |
Height: 60mm(min)-170mm(max) | |
Raw material | 135-450 GRAM |
Configuration | ULTRASONIC & HOT AIR SYSTEM |
Output | 12KW,380V/220V,60HZ/50HZ |
Air compressor | 0.4 M³/Min 0.5MPA |
Net weight | 3.4 TONS |
Dimension of machine | 2500×1800 ×1700 MM |
Dimension of cup collector | 900 ×900 ×1760 MM |
Description

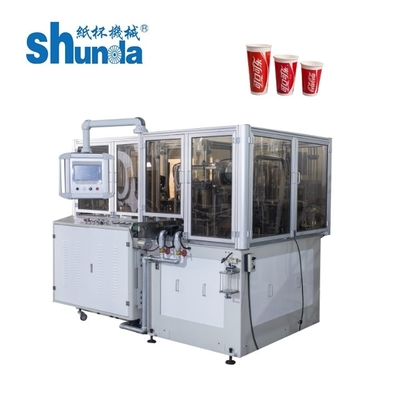

SMD-90 AUTOMATICALLY PAPER CUP MACHINE , IT INCLUDS DELIVER PAPER (PRINTED AND CUTED PAPER FAN), SEAL(HEATING), OIL INDECTION, BOTTOM CUT, HEAT,BOTTOM SEALING, HEMMING AND CUP DISCHARGE ,ALSO , IT HAS PHOTOELECTRIC CONTROL, SHORT CIRCLE PROTECTION,AND AUTOMATICALLY COUNTING. IT PRDODUCE COLD AND HOT DRINK CUP .
The production process of paper cups involves the use of specialized paper cup machines. Sheets of paper are fed into the machine, where they are precisely cut, formed, and sealed to create the cup shape. The machine ensures accurate alignment and smooth edges, while also applying any necessary coatings or finishes. After the forming process, the cups are inspected for quality and packaged for distribution. This automated process guarantees consistent, high-quality paper cups.

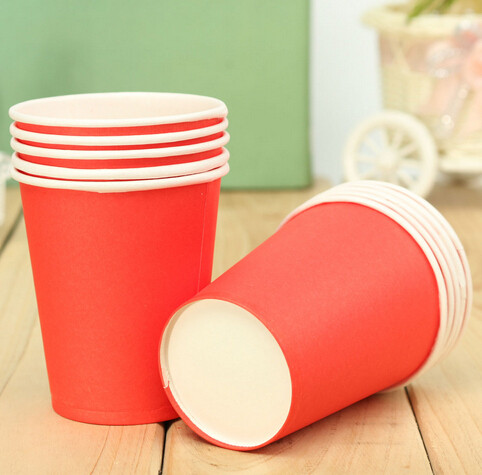

Cup size from 2oz to 46oz
Advantages
SMD-90 has Favorable price.Great variety of products. Environment Friendly Technology and OEM and ODM service provided.
FAQ
1. Q: Is your company a factory or trading company?
A: Our company is a factory since year 1999.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Haining City, Zhejiang Province, China, about 80 minutes by car from Shanghai .
After Service
1.warranty: 3 year
2.the guide booklet will be sent with machine to guide the installation process works,adjust
the whole machine,production,avoide or solve the problem which the buyer will face.
3.we will adjust the machine well for one week before the delivery,ensure the machine has the perfect performance.
4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.
5.we supply the free training of buyer,the training won't stop until the buyer control the whole lesson!
6.we supply the consumable spare parts for frees for three year use.
Exhibitions
Model | SMD-90 | |||
Capacity | pcs/min | 100-120 | 90-110 | 80-100 |
Size Range | mm(max) | Top diameter:90 Bottom Diameter:80 Height:140 |
Top diameter:110 Bottom Diameter:80 Height:170 |
Top diameter:125 Bottom Diameter:100 Height:170 |
Suitable Paper Thickness | gsm | 135-450 | ||
Sealing Method | Ultrasonic and hot air system | |||
Running Power | KW | 10 | 11 | 12 |
Air compressor | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa | |
Net weight | Kgs | 3400 | 3500 | 3600 |
Machine dimension | mm | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
Collector Dimension | mm | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
