Custom Disposable Paper Cup Production Machine , 5oz / 7oz / 10oz Paper Cup Making Plant

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: FDA
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Export wood case,20ft can load 2 sets of machine
Delivery Time: 25 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 100 SETS per month
Detail Information
Product Name: Paper Tea Cup Making Machine Speed: 100-160pcs/min
Output: 380/220V MATERIAL: 135-450GRAM

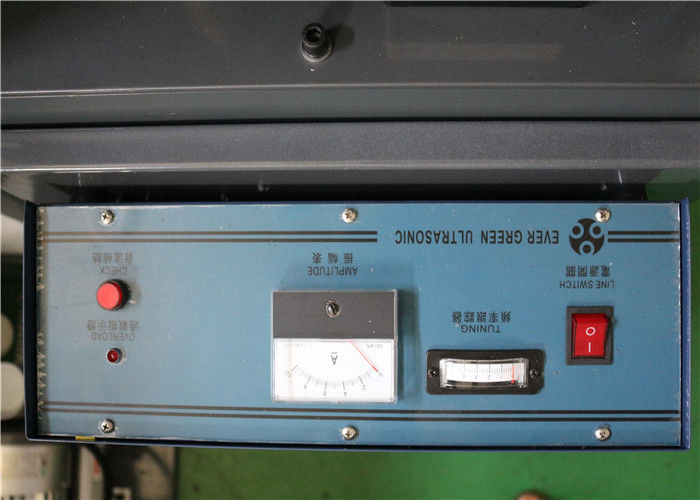

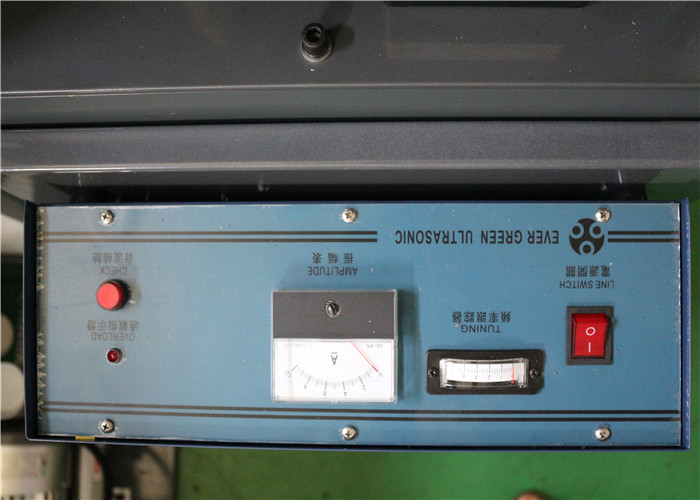

Eletricity Board: Ultrasonic Heating
Highlight:

automatic paper cup making machine

,

high speed paper cup making machine


Product Description

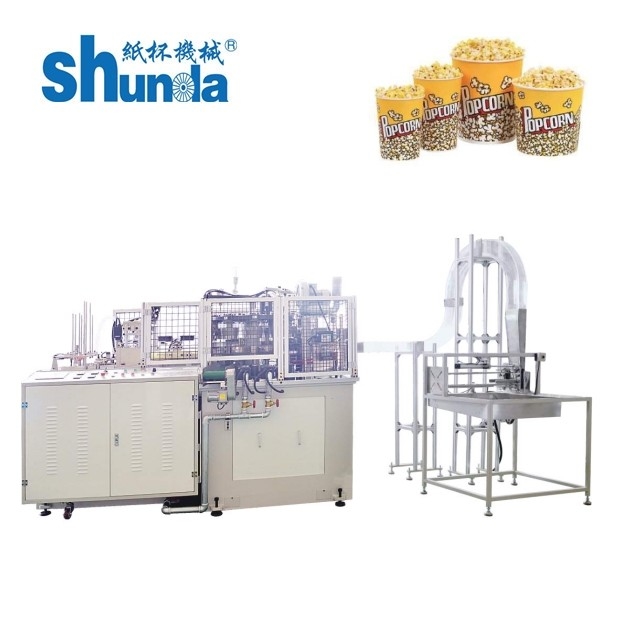

Custom Disposable Paper Cup Production Machine , 5oz / 7oz / 10oz Paper Cup Making Plant





Product advantage :


1. Danfos Transducer
2. 125’ diving box
3. Photoelectric tracking

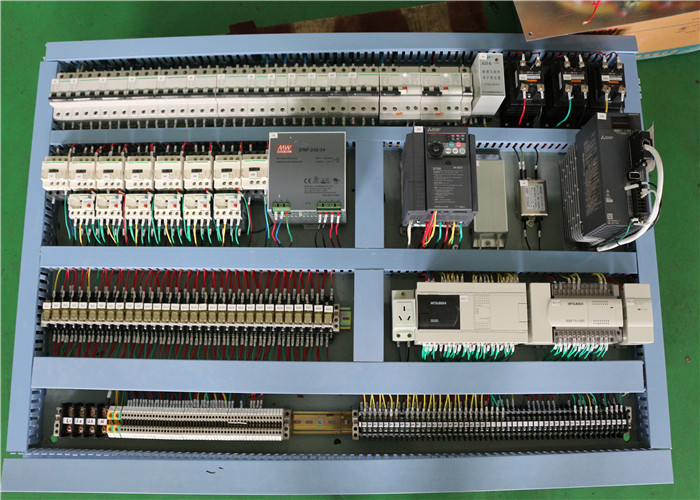

4. Electricity box and machine are separate.







Specifications:



Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top diameter:90
Bottom Diameter:80
Height:140
Top diameter:110
Bottom Diameter:80
Height:170
Top diameter:125
Bottom Diameter:100
Height:170
Suitable Paper Thickness gsm 135-450

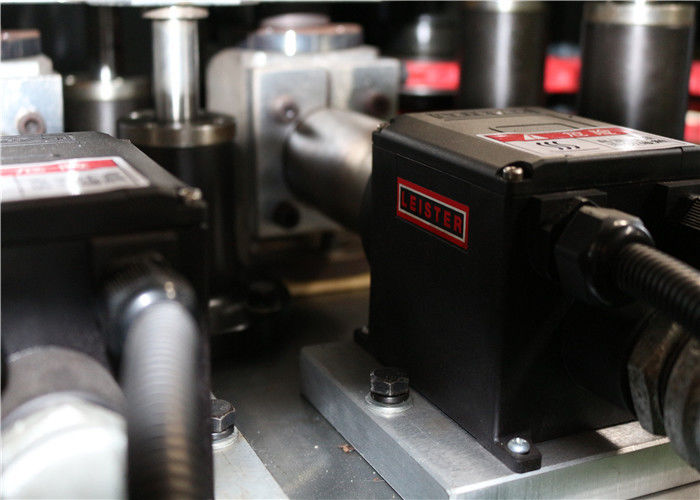

Sealing Method   Ultrasonic and hot air system
Running Power KW 10 11 12
Air compressor   0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net weight Kgs 3400 3500 3600
Machine dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860





Description:



ZBJ-9A INCLUDS DELIVER PAPER (PRINTED AND CUTED PAPER FAN), SEAL(HEATING), OIL INDECTION, BOTTOM CUT, HEAT,BOTTOM SEALING, HEMMING AND CUP DISCHARGE ,ALSO , IT HAS PHOTOELECTRIC CONTROL, SHORT CIRCLE PROTECTION,AND AUTOMATICALLY COUNTING. IT PRDODUCE COLD AND HOT DRINNK CUP , TEA PAPER CUP, COFFEE PAPER CUP,ICE CREAM PAPER CUP. ONE PERSON EASY OPERATION, STABLE PERFORMANCE, LESS PLACE, HIGH EFFICIENCY .







Advantages





Machine size is small,can operate more easy



Custom Disposable Paper Cup Production Machine , 5oz / 7oz / 10oz Paper Cup Making Plant 0







Cup Size



Custom Disposable Paper Cup Production Machine , 5oz / 7oz / 10oz Paper Cup Making Plant 1





Our QC team



A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.





FAQ



1. Q: Is your company a factory or trading company?

A: Our company is a factory.

2. Q: How does your factory do regarding quality control?

A: Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1). All raw material we used are environmental-friendly; 2). Skilful workers care every details in handling the producing and packing processes; 3). Quality Control Department specially responsible for quality checking in each process.

3.Q: Do you have Guiding Box or CD video for clients?

A: Yes,we  have,we will send guiding box with CD together to clients.
