| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE,ISO9001 |
| Model Number: | SMD-90 |
| Minimum Order Quantity: | 1 Sset |
| Price: | negotiable |
| Packaging Details: | standard seaworthy package |
| Delivery Time: | 21 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 18 sets per month |
| Speed: | 90-1--pcs/min | Cup Size: | <32oz |
|---|---|---|---|
| Material: | 135-450gram | Output: | 380V/220V,60HZ |
| Net Weight: | 3.4 Tons | Machine Size: | 2500 ×1800 ×1700 MM |
| Counter Size: | 900 ×900 ×1760 MM | ||
| High Light: | automatic paper cup making machine,high speed paper cup making machine |
||

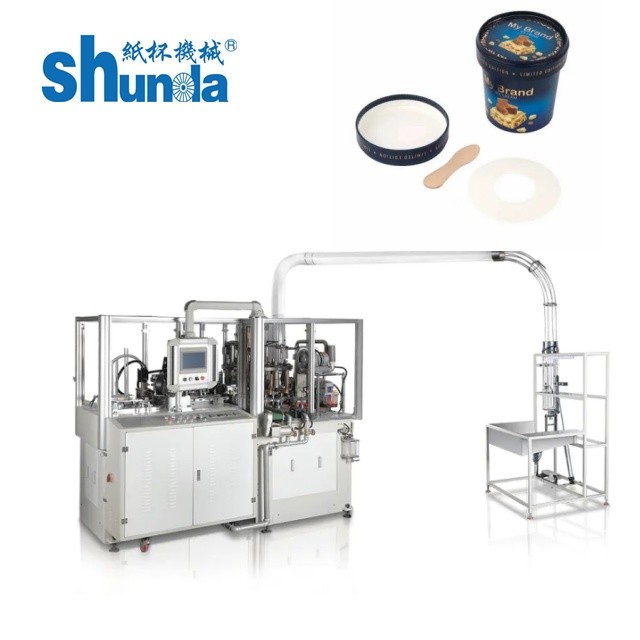

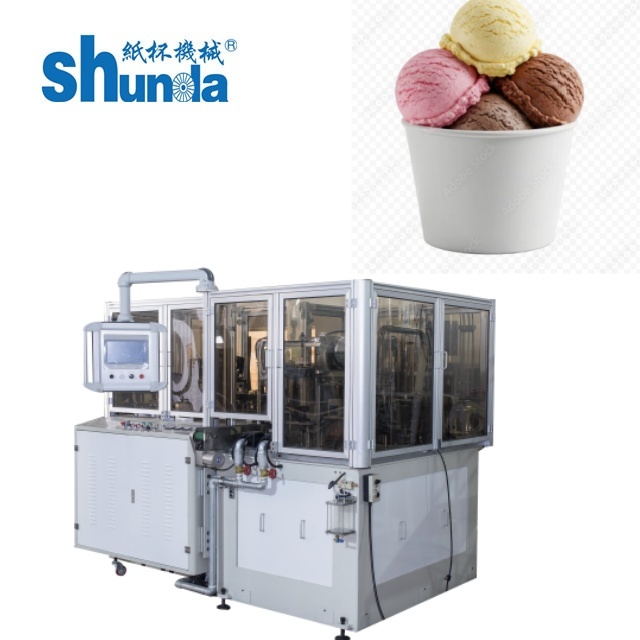

Ice Cream Cup Making Machine,automatic ice cream paper cup making machine
high speed digital control
Description
SMD-90is a Paper Cup Making machine,which is designed By HAINING CHENGDA MACHINERY
CO.,LTD,It can produce both single and Double PE coated paper Bowls.
As technology development, it will take place of the formally machines in market.
1. Hi-tech Cylindrical indexing gear
2. Switzerland Hot air sealing device
3. Mitsubishi PLC tracking and Touch screen Controlling cabinet
4. Servo-driven bottom-web feed with infinitely variable setting
5. Automatic lubrication system
6. Infinitely variable drive
7. Safety Door opening protection device
8. Photoelectric tracking and detecting every step
9. Automatic collecting and counting cups

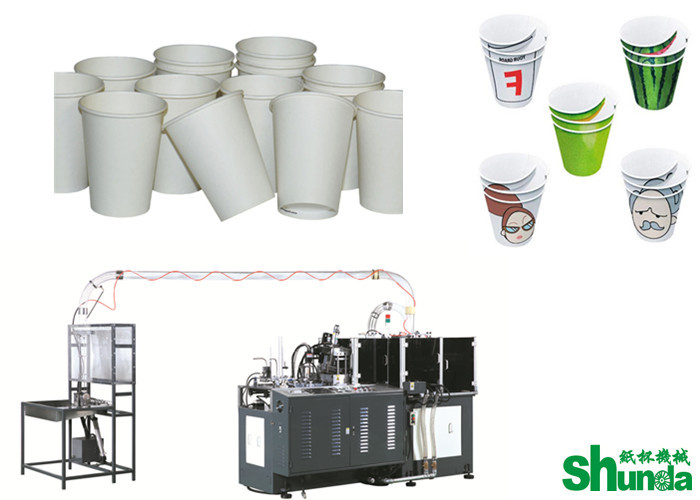

Samples made by our automatic paper cup machine
Technology Specification
| Model | SMD-90 |
| MATERIAL | SINGLE AND DOUBLE PE COATED PAPER |
| Paper cup size | 2-32oz OZ |
| Speed | 90-100 PCS/MIN |
| Machine power | 11KW |
| Output | 380V/220V, 60HZ/50HZ,THREE PHASE FOUR WIRE |
| Working air source | 0.4M3/MIN |
| Paper material | 135-450 GRAM |
| Total weight | 3.4 TONS |
| Overall dimension | 25001800*1700 MM |
Highlights
Original Leister heaters
Panasonic track switches
food grade moulds
Anti rust components
Ultrasonic system from Taiwan--EVERGREEN brand
Quality control
1).All parts are inspected then applied
2).10 year experience assembly workers,always follow strict quality rules
3). 3 years warranty, 7 day 24 hour service availble.
QUANTITY GUARANTEE
The Seller guarantee the machines are new 100% and the guarantee period shall be
given 36 (thirty-six) months which starts from the date of the machine’s arrival.
During this period, the Seller shall provide free spare parts that caused by the machine
quality.
INSTALLATION SERVICE
The Seller shall send one technician to install the machine for The Buyer and will train
the workers how to operate the machines, but the Buyer shall be in charge of all the
technician’s expenses including transportation expenses( including round way tickets),
visa, accommodation, food. And the Buyer also shall be in charge of salary for technician
( USD 150/day).
