PE Coated Paper Cup Making Machine Single Double Wall Cup Forming Machine OEM

Basic Information

Place of Origin:	China
Brand Name:	Shunda
Model Number:	HSM-200

Minimum Order Quantity:	1 SET
Packaging Details:	wooden pallet for paper cup machine
Delivery Time:	30 working days
Supply Ability:	20 sets/month

Get Best Price Contact Now

Detail Information

Speed:	130-160pcs/min	Material:	135-450gsm(single And Double PE Coated Paper )
Cup Size:	<32oz	Output:	380/220v 60HZ 22KW
Configuration:	Ultrasonic&hot Air System	Working Mode:	Gear Working And Open Cylindrical Cam
Highlight:	automatic paper cup making machine , disposable paper cup making machine

Product Description

PE Coated Paper Cup Making Machine Single Double Wall Cup Forming Machine OEM

Chengda Semi‑Servo Paper Cup Machine

Precision. Stability. Efficiency.

Upgraded with servo control for smoother, more accurate performance.

3‑station curling for stronger, better‑finished cups.

Dual‑cam integrated structure for higher output and lower noise.

Energy‑saving, compact, and professionally designed.

Where innovation meets reliability.

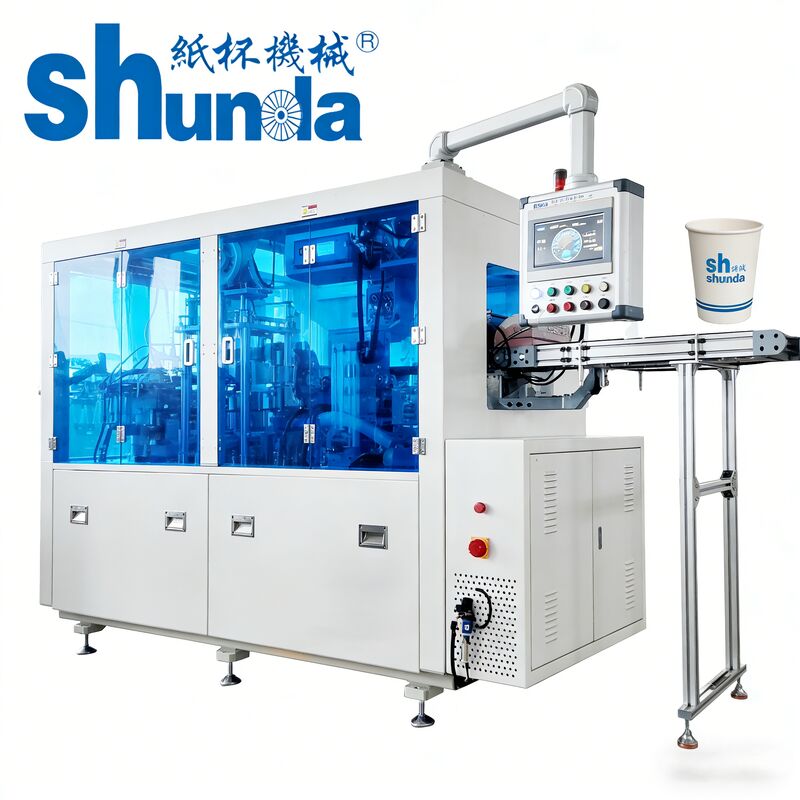

picture:

PE Coated Paper Cup Making Machine Single Double Wall Cup Forming Machine OEM 0

Specifications:

PE Coated Paper Cup Making Machine Single Double Wall Cup Forming Machine OEM 1

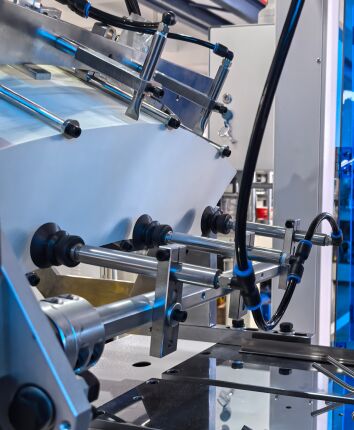

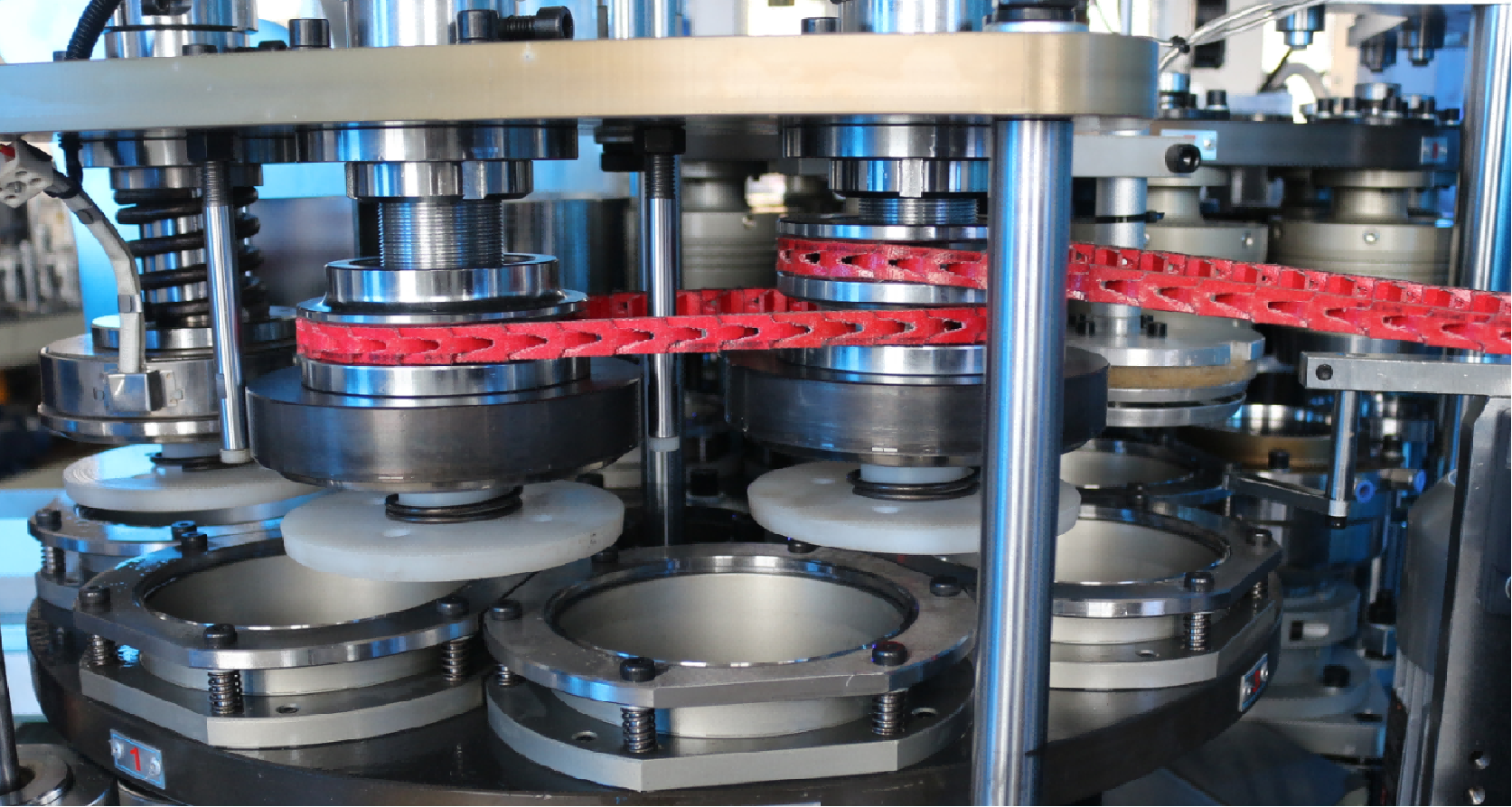

Machine details

PE Coated Paper Cup Making Machine Single Double Wall Cup Forming Machine OEM 2

FAQ

11. Why Do Paper Cups Have Leakage Issues After Production?

Q: What are the main reasons for paper cup leakage after being made by the machine, and how to fix it?A: Leakage is mainly caused by defective sealing or raw material problems:

Causes: Insufficient sealing temperature/pressure, contaminated sealing molds, low - quality PE - coated paper (uneven coating or thin PE layer), misaligned bottom - sealing components.
Solutions: Adjust sealing parameters (increase temperature/pressure moderately); clean molds with alcohol to remove paper dust or residue; replace with qualified food - grade PE - coated paper; realign bottom - sealing dies to ensure full contact.

12. How to Reduce Energy Consumption of a Paper Cup Machine?

Q: What practical ways can I use to cut down the energy consumption of a paper cup machine during daily operation?A: Adopt these 4 effective measures:

Avoid long - term idle running: Turn off the machine promptly when stopping production for more than 15 minutes.
Optimize speed settings: Run the machine at its optimal efficiency speed (not the maximum speed) to balance output and energy use.
Regular maintenance: Lubricate moving parts to reduce friction; clean air filters of the air compressor to lower its load.
Insulate heating components: Use heat - resistant insulation covers on sealing heating plates to reduce heat loss.

13. Can a Paper Cup Machine Process Paper Without PE Coating?

Q: Is it possible to use uncoated paper (without PE coating) on a paper cup machine to make cups?A: No. Standard paper cup machines are designed for PE - coated paper only. The PE (polyethylene) coating acts as a waterproof barrier and a bonding medium for heat/ultrasonic sealing. Uncoated paper lacks water resistance and cannot be sealed effectively—cups made from it will leak immediately when filled with liquid and cannot maintain their shape. If you need eco - friendly alternatives, choose machines compatible with PLA - coated paper (a biodegradable alternative to PE).
