| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE,ISO9001 |
| Model Number: | SMD-80A |
| Minimum Order Quantity: | 1 set double wall paper cup machine |
| Price: | negotiable |
| Packaging Details: | Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per Month |
| Speed: | 80-100 Pcs/min | Cup Size: | 6-22OZ |
|---|---|---|---|
| Raw Material: | 135-450 GRAM | Configuration: | ULTRASONIC |
| Output: | 10KW,380V/220V,60HZ/50HZ | Air Compressor: | 0.4 M³/Min 0.5MPA |
| Net Weight: | 3.0 TONS | Dimension Of Machine: | 2500×1800 ×1700 MM |
| Dimension Of Cup Collector: | 900 ×900 ×1760 MM | ||
| High Light: | paper cup machine,paper cups machines |
||

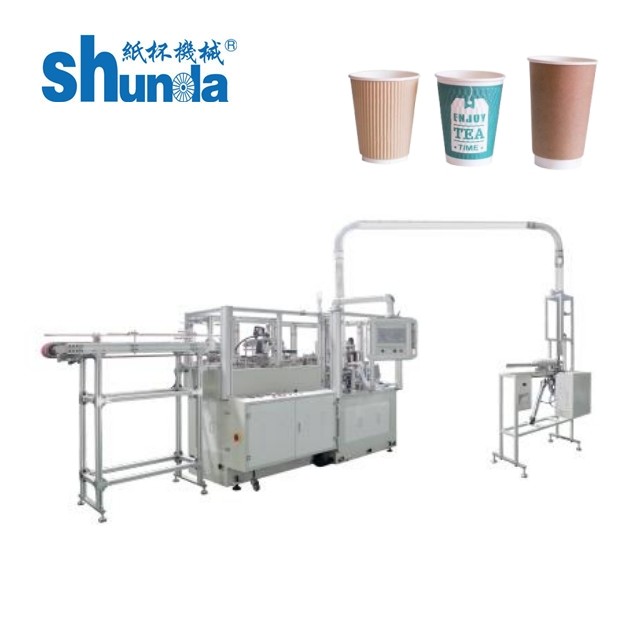

Fully Automatic Double Walled Paper Coffee Cups With Logo Making Machine Size Range 6-22oz
Technical Data:
| MODEL | SMD-80A Double Wall PAPER CUP MACHINE |
| Speed | 80-100 PCS/MIN |
| Cup size Range | 6-22 oz |
| Material | Single and Double PE coated paper |
| Paper request Gram | 135-450GSM(single and double PE coated paper) |
| Heating system | Hot air system (from Switzerland) |
| Output | 380V/220V 10KW,50HZ, Three Phase four wire |
| Air compressor | 0.4 M³/Min |
| Net weight | 3 TONS |
| Machinery Size | 2500 ×1800 ×1700 MM |
Application
This is designed for paper cup and plastic cup afterward process. Its main function is to wrap and sleeve printed blanks perfectly to the cups. The out layers have heat-resistant funtion, it can increase the strengh and can have better printing effect of the cups.
Advantages:
1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Open cylindrical can divide locating,heigh precision.
4.Automatically Oil lubrication system .
5.Servo motor control the gap of the bottom-paper within 0.1mm.
6.Gear and open cylindrical promote the stability and speed.
Finished products:
Output counting:
| Normal Running Speed | 90 pcs/min | 50 pcs/min | 40 pcs |
| 1 Day(12 Hours) | 90pcs*60min*12hours=64800 pcs | 50pcs*60min*12hours=36000 pcs | 28800pcs |
| 1 Week (5 Days) | 64800pcs*5days=324000pcs | 36000pcs*5days=180000pcs | 144000pcs |
| 1 Mouth(22 Days) | 64800pcs*22days=1425600pcs | 360000pcs*22days=792000pcs | 633600pcs |
About us:
Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional paper container equipment manufacturer. We have R&D,production and sales department .After 20 years of hard working, our company has a strong technical team and a research and development center cooperate with Taiwan's senior paper container molding technology team and obtained national patents such as a straight tube machine. Our company has modern assembly workshops, precision parts processing workshops, training centers, QA centers and other infrastructure. Our company has CE, ISO9001 certification system and national import and export rights.
In recent years, based on the characteristics of Chinese paper and the development trend of paper containers home and abroad, we have developed a batch of international synchronization technology unit of the intelligent molding Machine with automatic detection systems and remote connection system for paper cup machine, paper tube machine, paper lid machine,doner box machine and etc.
We lead the market by advanced technology and excellent product quality.In the future, we will continue to feed customers' needs, be brave in innovation, use perfect pre-sales and after-sales service systems to serve customers, and constantly explore the development of paper container molding machines. The new trend is to provide customers with total industry-wide solutions with competitive products.
FAQ:
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A:We hold firm faith that quality comes first,and promise 3 YEARS warranty.
Because our debuggers test and adjust every machine for 1 week before packing and shipping out of workshop, no compromises on quality.
4. Will you teach how to use the machine?
Yes, engineers available to service machinery overseas or learn in our factory.
5. How about the shipment?
Normally 30-40 days after confirming order, detail delivery date should be decided according to
production season and order quantity.
6. Which payment term do you accept?
T/T, L/C
7. Do you have warranty?
1 year for electronic parts from shipment date
3 years for mechenical parts from shipment date
8.Do you have OEM/OEM service?
Yes, OEM/ODM service are available here. We can make some changes on machine according to your requirements.
After-sale Service:
1.warranty: 3 year
2.the guide booklet will be sent with machine to guide the installation process works, adjust the whole machine,production,avoide or solve the problem which the buyer will face.
3.we will adjust the machine well for one week before the delivery,ensure the machine has the perfect performance.
4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.
5.we supply the free training of buyer,the training won't stop until the buyer control the whole lesson!
6.we supply the consumable spare parts for frees for three year use.
