Detail Information

Capacity:	70-100 Cups/min	Sealing Pattern:	Evergreen/Genuode Ultrasonic System
Waster Collecting Pattern:	Automatic Cutting System	Paper Fan Weight Range:	135g--450g
Air Compressor:	0.4 M³/Min 0.5MPA	Output:	10KW,380V/220V,60HZ/50HZ
Packing Weight:	3000 Kg	Colors:	As Per Requirements
Dimension Of Machine:	2500×1800 ×1700 MM	Dimension Of Cup Collector:	900 ×900 ×1760 MM
Highlight:	paper cup machine , paper cups machines

Product Description

TAutomatic PLC System Double Wall Paper Cup Machine for Highly Precise Cup

SMD-80 is designed for paper cups and plastic cups afterward process. The main function of the out layer is to resist the hot temperature and easy printing.
Technical Data:

Model	SMD-80A
Speed	pcs/min	80-100	70-90
Power Source		220V/380V, 50/60Hz
Size range	OZ	4-46 oz
Top Diameter	max mm	100	150
Bottom Diameter	max mm	80	80
Height	max mm	110	140
Suitable paper thickness	gsm	135-450
Paper Material	Single/double PE/PLA coated
Sealing method	Ultrasonic / Glue Dispenser
Running Power	KW	9	10
Air compressor		0.4M 3 /Min 0.5MPA	0.5M 3 /Min 0.5MPA
Net weight	KG	3000	3200
Machine dimension	mm	2500 * 1800 * 1700	2700 * 1800 * 1800
Collector dimension	mm	900 * 900 * 1760	1000 * 900 * 1860
Packing Material	Wooden Case

Advantages:

1. It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2. Ultrasonic seal the paper cup body, which can produce both single and double PE-coated paper.
3. Open cylindrical can divide locating, high precision.
4. Automatically Oil lubrication system.
5. Servo motor control the gap of the bottom paper within 0.1mm.
6. Gear and open cylindrical promote stability and speed.
Automatic PLC System Double Wall Paper Cup Machine for Highly Precise Cup 0

Automatic PLC System Double Wall Paper Cup Machine for Highly Precise Cup 1

Automatic PLC System Double Wall Paper Cup Machine for Highly Precise Cup 2

Machine Optional

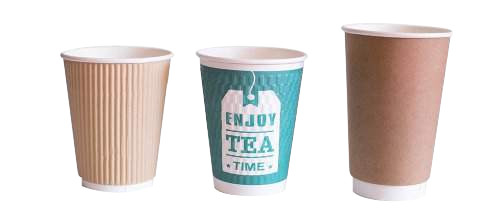

* Flat Stick Outsourcing Machine for bubble-wall cup, solid wall for paper cup and plastic cup

* Hollow Outsourcing Machine for Hollow-wall cup

* Corrugated Outsourcing Machine for ripple-wall cup

Three types for both paper cup and paperboard containers, single or double PE/PLA coated are both OK.

Machine Layout

01. Paper Fan Deliver

02. Paper Fan Seal

03. Cup Body Drop

04. Oiling for Bottom Reel

05. First Reeling

06. Second Reeling

07. Gluing

08. Cup Drop

09. First Sleeving

10. Second Sleeving

Automatic PLC System Double Wall Paper Cup Machine for Highly Precise Cup 4
For more details, please contact us at any time.
