Automatic Paper Cups Manufacturing Machines Coffee Tea Ice Cream Cup Making

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE ISO9001
Model Number: SMD-90
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard seaworthy packing with pp film,wooden plate and box.
Delivery Time: 21 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 18 sets per month
Detail Information
Cup Size: Top Diameter 6-12cm Bottom Diameter 5-9cm Height 6-18cm Speed: Max 100cups/min
Power: 380V 50Hz 12Kw Air: 0.4MPA
Paper: 190-350gsm Weight: 3400kg
Size: 2.5x1.8x1.7meter Cup Counter: 0.9x0.9x1.76meter
High Light:

fully automatic paper cup making machine

,

disposable cup making machine


Product Description



Automatic Paper Cups Manufacturing Machines Coffee Tea Ice Cream Cup Making







Description



MODEL SMD-90 double turnplate high speed paper cup machine is fit for making hot and cold drinks cup.This model can fit for making 2oz to 32oz cup sizes, new driving system and with cup detection

system as option by customers.



* Switzerland Hot air sealing device
* tracking and Touch screen Controlling cabinet
* Servo-driven bottom-web feed with infinitely variable setting
* Automatic lubrication system
* Infinitely variable drive







Application

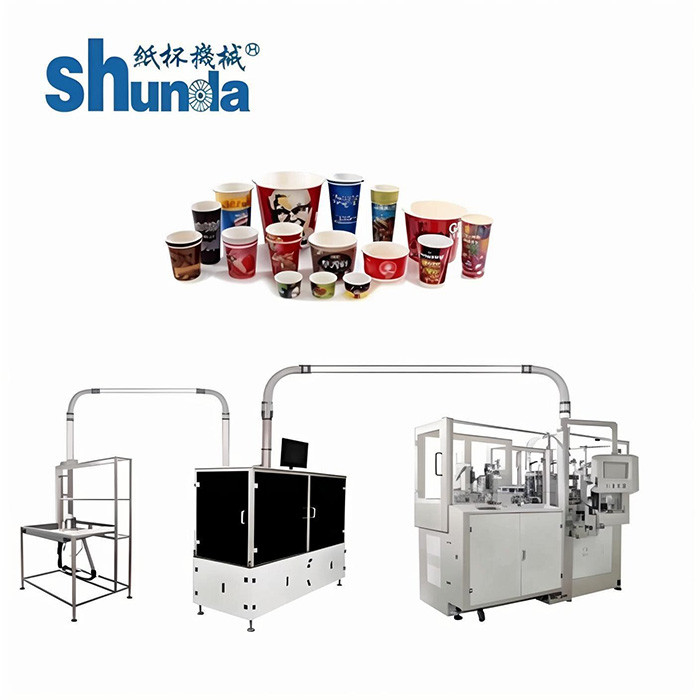

Automatic Paper Cups Manufacturing Machines Coffee Tea Ice Cream Cup Making 0







Specification



MODEL SMD-90
SPEED 90-100 PCS/MIN
CUP SIZE top diameter 6-12cm bottom diameter 5-9cm height 6-18cm
MATERIAL 190-350GRAM
CONFIGURATION ULTRASONIC&HOT AIR
OUTPUT 380V,50HZ
AIR COMPRESSOR 0.4  M³/Min
NET WEIGHT

3400Kg









SHUNDA SINCE 1999

Founded in year 1999,Shunda paper cup forming installations have been in more than 25 countries

and regions such as Algeria, Azerbaijian, Bulgaria, Ecuador, Ethiopia, Finland, France, Georgia, Libya, Indonesia, Iran, Iraq, Jordan, Mexico, Oman, Pakistan, Saudi Arabia, Senegal, Serbia, Thailand,Tunisia, Ukraine, USA, Vietnam,etc.

On China mainland market, Shunda is also a major choice for most paper cup manufacturers.



Based on reliable quality and thoughtful aftersale services, Shunda paper cup forming machines are widely used by many famous brands paper product such as,

Starbucks,Costa, Lipton,Mcdonlad's, KFC,Pepsi, Coca-cola,airports,Chinese bullet trains,etc.



With so many users witness Shunda quality and service, we all firmly believe Shunda is able to support your success of paper cup business.







Quality control



1).All parts are inspected then assemblied.



2).10 year experience assembly workers,always follow strict quality rules.



3). 3 years warranty, 7 day 24 hour service availble.



Automatic Paper Cups Manufacturing Machines Coffee Tea Ice Cream Cup Making 1







Locate us -- 1.5 hour drive from Shanghai Pudong airport.

Automatic Paper Cups Manufacturing Machines Coffee Tea Ice Cream Cup Making 2
