Place of Origin: | China |
---|---|
Brand Name: | Shunda |
Certification: | CE |
Model Number: | SMD-90 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate |
Delivery Time: | 30-40 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 30 sets per Month |
Capacity: | 120pcs/min | Diameter: | 125mm Max |
---|---|---|---|
Height: | 170mm Max | Paper Thickness: | 135-450gsm PE/PLA Coated Paper |
Sealing Method: | Ultrasonic & Hot Air System | Running Power: | 12kw |
Air Compressor: | 0.4M3/min 0.5MPA | Net Weight: | 3600kg |
Machine Dimension: | 2500*1800*1700mm | Collector Dimension: | 900*900*1760mm |
Highlight: | Servo Motor round box making machine,120pcs/min tea cup manufacturing machine,Servo Motor Automatic Paper Cup Machine |
Paper Cup Making Machine Prices/Paper Tea Glass Machine Price With Servo Motor
Machine specifications:
Model | SMD-90 small size | SMD-90 middle size | SMD-90 big size |
Stable running speed | 100-120 pcs/min | 90-110 pcs/min | 80-100 pcs/min |
Cup size | Top diameter: 90mm(max) | Top diameter: 110mm(max) | Top diameter: 125mm(max) |
Bottom diameter: 80mm (max) | Bottom diameter: 80mm (max) | Bottom diameter: 100mm (max) | |
Height: 140mm(max) | Height: 170mm(max) | Height: 170mm(max) | |
Raw material | 135-450gsm PE/PLA coated paper | 135-450gsm PE/PLA coated paper | 135-450gsm PE/PLA coated paper |
Configuration | Ultrasonic & hot air system | Ultrasonic & hot air system | Ultrasonic & hot air system |
Output | 10KW,380V/220V,60Hz/50Hz | 11KW,380V/220V,60Hz/50Hz | 12KW,380V/220V,60Hz/50Hz |
Air compressor | 0.4M3/min 0.5MPA | 0.5M3/min 0.5MPA | 0.6M3/min 0.5MPA |
Net weight | 3.4 Tons | 3.5 Tons | 3.6 Tons |
Dimension of machine | 2500x1800x1700 mm | 2600x1800x1800 mm | 2700x1800x1800 mm |
Dimension of cup collector | 900x900x1760 mm | 1000x900x1860 mm | 1100x900x1860 mm |
Warranty
- one year for electronic parts
- three years for mechnical parts
Delivery term: 30-35 days
Payment term: T/T or L/C
Packing & Delivery
machine package is seaworthy and suitable for long & bumpy roads and sea delivery.
1.Machine solidly packed in waterproof film.
2.Machine bottom tightly fixed onto wooden plate.
3.Machine body safely put into wooden case.
The machine advantages
1. The paper has too few automatic alarms
2. Multiple sheets of paper detection stop
3. Automatically track the paper and send the bottom paper
4. Ultrasonic probe does not work when there is no film
5. Servo conveying without cup bottom detection stop
6. Paper cup forming cup detection stop
7. The bottom molding does not work when it reaches the set temperature.
8. When the test stops, the heater will automatically drop when it is not working.
9. The whole machine adopts automatic detection function
10. PLC can intelligent set the number of cups in the cup holder
11. Encoder control angle can be adjusted freely
12.The detection system is imported from Panasonic.

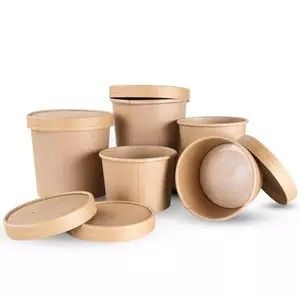

Finished Products Show:
About us:
Haining Chengda Machinery Co.,LTd always abides by the business strategy of "high-quality
products & reasonable price", the service concept of "showing respect to you & trying my best",
and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers
the best products and services. With a history of over 20 years, ship to more than 100 countries.
Trade Show
Maintaince Attention:
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.
Our Advantages:
Quality assurance both for our products and service for after-sales.
Favorable price.
Great variety of products.
Attractive design.
Environment Friendly Technology
OEM and ODM service provided.
QC team:
A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
