| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE,ISO9001,SGS |
| Model Number: | SMD-90 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 0 -- 60000 per set |
| Packaging Details: | Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate |
| Delivery Time: | 21 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 18 sets per Month |
| Capacity: | 90-100 Pcs/min | Heating Pattern: | Leister System From Swiss |
|---|---|---|---|
| Sealing Pattern: | Ultrasonic System From Taiwan | Inspecting Pattern: | Panasonic Camera System From Japan |
| Waster Collecting Pattern: | Automatic Cutting System | Paper Fan: | Single/Double PE Coated Paper |
| Cup Height Range: | 50mm--150mm | Paper Fan Weight Range: | 135g--450g |
| Colors: | As Per Requirements | Packing Size: | 2.5x1.8x1.7 Meter |
| Packing Weight: | 3500 Kg | Voltage&frequency: | As Per Local Requirement |
| Air Compressor: | 0.45 Mpa | Output: | 11Kw |
| High Light: | fully automatic paper cup making machine,disposable cup making machine |
||
Automatic Paper Cup Machine,automatical paper coffee cup tea cup ice
cream cup making machine 55ml-900ml both hot&cold
Description

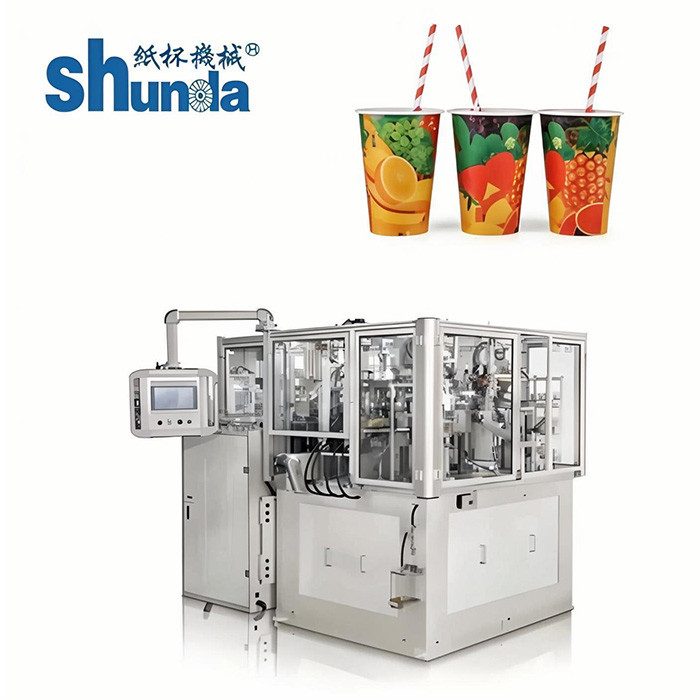

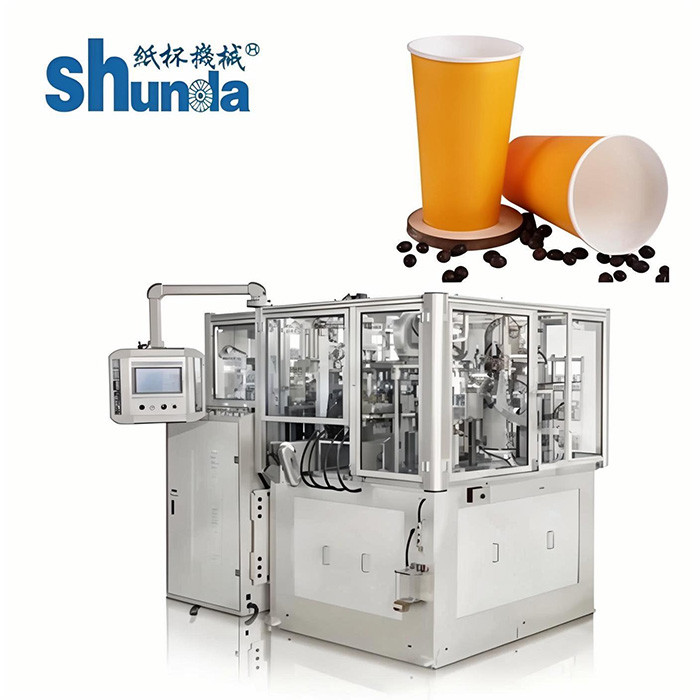

Automatic Paper Cup Machine SMD-90 is used for paper cup forming,raw material
is PE coated paper fan(single PE coating and double PE coating are workable).
Applicable paper fan volume 2-32oz and
weight range 135-450gsm
Specification
| MODEL | SMD 90 AUTOMATICAL MIDDLE SPEED PAPER CUP MACHINE |
| SPEED | 100 CUPS/MINUTE |

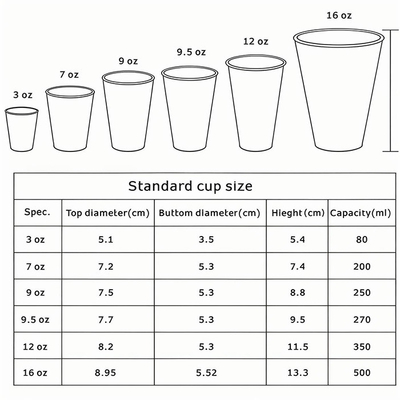

| CUP SIZE |
TOP DIAMETER 60MM TO 100MM BOTTOM DIAMETER 40MM TO 80MM HEIGHT 50MM TO 150MM |
| PAPER FAN | 135 TO 450 GRAM |
| CONFGURATION | ULTRASONIC HOT AIR HEATING |
| OUTPUT | 12KW , 380V/220V, 60HZ |
| MACHINE WEIGHT | 3.5TONS |
| MACHINE SIZE | 2500 X1800 X1700 MM |
| CUP COLLECTOR SIZE | 900X900X1760 MM |
| AIR COMPRESSOR | 0.45MPA |
Highlights
Original Leister heaters
Panasonic track switches
food grade moulds
Anti rust components
Ultrasonic system from Taiwan--EVERGREEN brand
Quality control
1).All parts are inspected then applied
2).10 year experience assembly workers,always follow strict quality rules
3). 3 years warranty, 7 day 24 hour service availble.
Locate us--1.5 hours drive from Shanghai Pudong Airport.
