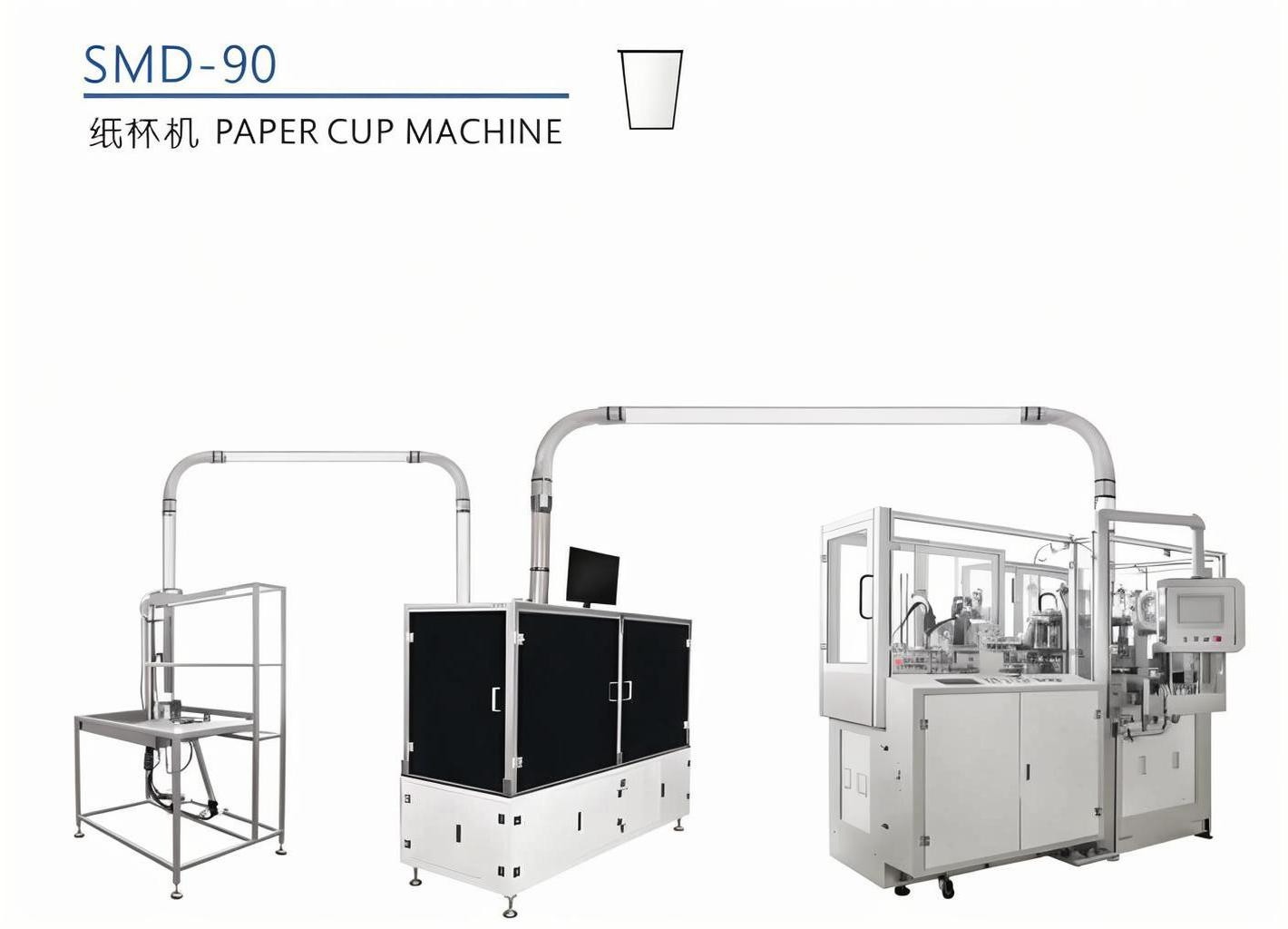

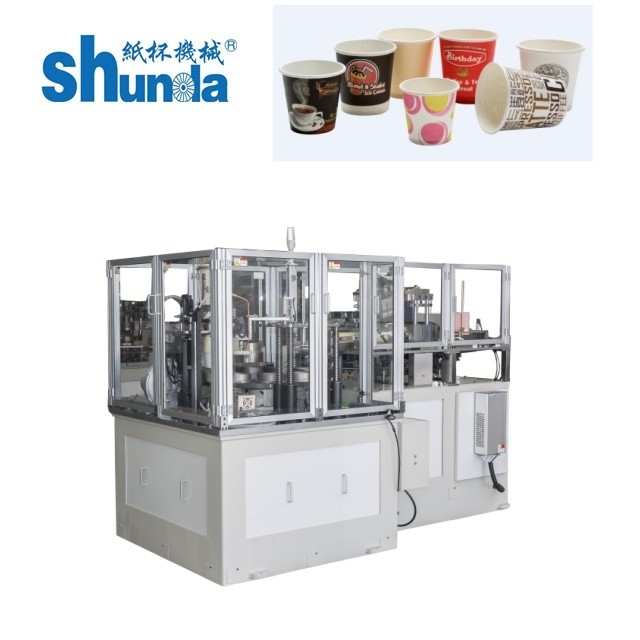

12KW Automatic Double Wall Paper Cup Machine With High Speed 70-80 Pcs/min

12KW Single/Double PE Coated Paper Automatic Paper Cup Machine

Paper Cup Machine ' s  Advantages:

1. Hi-tech Cylindrical indexing gear

2. Switzerland Hot air sealing device

3. Mitsubishi PLC tracking and Touch screen Controlling cabinet

4. Servo-driven bottom-web feed with infinitely variable setting(Brand:Taiwan DONGYUAN)5. Automatic lubrication system6. Infinitely variable drive

7. Safety Door opening protection device

8. Photoelectric tracking and detecting every step

9. Automatic collecting and counting cups

Product Description:

-SPEED:130-180PCS/MIN

-MATERIAL:SINGLE/DOUBLE PE COATED PAPER

-PAPER THICKNESS:0.3-0.47MM

-PAPER RANGE:<24oz

-HEATING SYSTEM:ULTRASONIC&HOT AIR

-WEIGHT:3.5TONS

-OUT PUT:380V OR 220V 16KW 50HZ Three Phase four wire

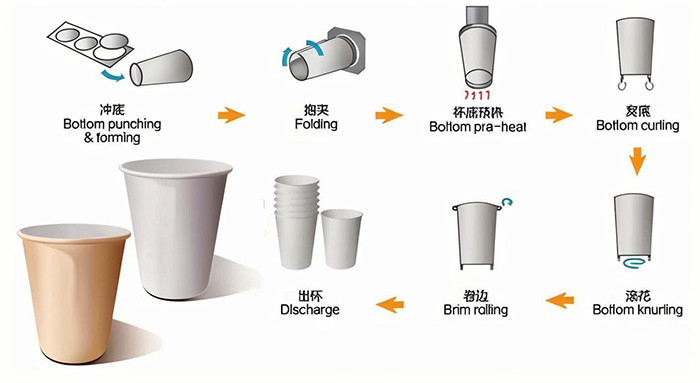

Paper Cup Making Process:

1. Paper Making Machine make paper roll.

2. Flexo Printing Machine or Paper cup Printing machine to Paper roll

3. Paper die-cutting machine to make paper fan which is paper body

4. We use electrical heater or Evergreen Ultrasonic to send paper fan to the mould and sealing

5. At the same time, the paper bottom automatic cut to round type and sent to the mould

    Together with paper fan.

6. Preheat the bottom, heat again the bottom, and curling the top edge of the cup

7. Sealing the bottom and body strongly, Knurling the bottom.

8. Discharging finished paper cup automatically from moulds. Sending to the collector and be coll  ected and piled and count automatically. Each 50pcs or 100pcs, we can set alarm, so easy to collect

WARRANTY:

1.We warranty against any any defects in design and workmanship for 3 years from the shipment date

2.This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.

3.We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.

Frequent Ask and Answer:

- What's the power of the paper cup making machine?

-  The rated power is about 20KW. and the steady working power is about 12KW
