Thermoforming Ultrasonic Sealing Paper Cup Forming Machine High Speed With Hot Air shunda paper cup making machine

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: SMD-90
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: wooden case
Delivery Time: 40 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month
Detail Information
Speed: 100-120 Pcs/min(max 150pcs/min) Cup Size: 4-16oz
Material: 135-450gsm(single And Double PE Coated Paper ) Configuration: Ultrasonic&Hot Air
Output: 12KW,380V/220V,60HZ/50HZ Air Compressor: 0.4 M³/Min 0.5MPA
Color: As Per Requirement Net Weight: 3.4 TONS
Dimension Of Machine: 2500×1800×1700 MM Dimension Of Cup Collector Table Size: 900×900×1760 MM
Highlight:

automatic paper cup making machine

,

disposable paper cup making machine


Product Description

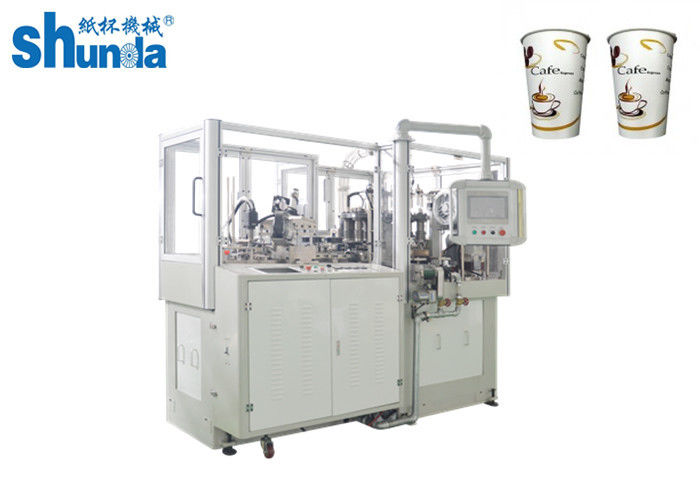

Thermoforming Ultrasonic Sealing Paper Cup Forming Machine High

Speed With Hot Air shunda paper cup making machine



Specification:



MODEL SMD-90
Speed 100-120pcs/min
Cup size Range 4-16oz
Material Single and double PE coated paper
Heating system Ultrasonic &hot air system
Output 380V,12KW ,60HZ, Three Phase four wire
Net weight 3.4 TONS
Machinery Size 2500 *1700*1600 MM
Paper request 135gsm-450gsm
Warranty 3 Years
Description SMD-90 paper cup machine is a high gram paper cup shaping machine, it runs a whole procedure of the paper feeding, gluing, oiling, and bottom punching, heating, rolling, rounding, and tripping.It is an automatic machine you can control the speed according to the production!

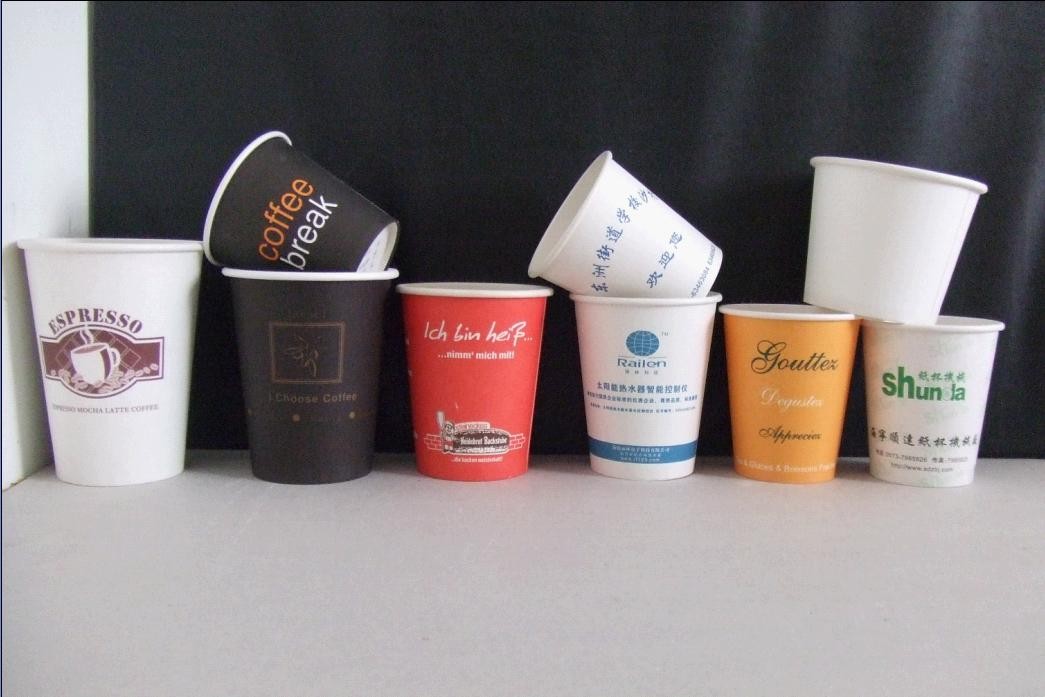

For a better cup body and bottom connection, it used ultrasonic and two hot air for heating, the heating phase into three steps, advanced technology allowed facility more safty both on itself and operator.It is an ideal equipment to make the paper cups for hot drink, cold drink, and ice cream paper cups.





Advantage:

1. Photoelectric tracking can check every part and report.It can detect the cup rim and cup bottom.such as unstuck stain,broke,curl.Imported from Japan by panasonic.

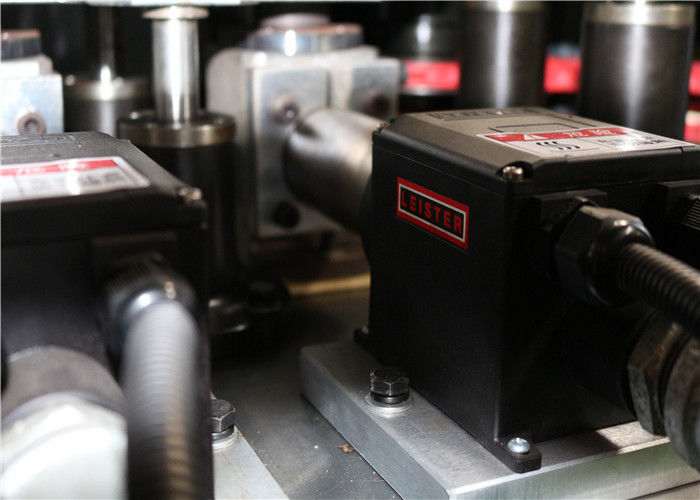

2.2sets of original hot air system guarantee the stability of heating.Imported fom Switzerland by Leister.

3.We use EVERGREEN Ultrasonic to heat the paper body,make the glue more stronger.

4.Servo motor control the gap of the bottom-paper within 0.1mm.And it will not skew,keep the distance same between the two sides of the bottom-paper.From Taiwan by TECO.

5.Camera system can inspect the cup situation.If  the cup is standard,it will blow into this tube,the defective production will blow into this tube.

6.Automatic Oil lubrication system for the machien’s  moving parts,which is very useful,cause the worker don’t have to operate it every day,It save many time ang promote the efficiency and the life of the machine.

7.One labor can operate multi machine at same time,decrease the artificial cost.

.............





picture shunda paper cup making machine



Thermoforming Ultrasonic Sealing Paper Cup Forming Machine High Speed With Hot Air shunda paper cup making machine 0



Thermoforming Ultrasonic Sealing Paper Cup Forming Machine High Speed With Hot Air shunda paper cup making machine 1





About us



Haining Chengda Machinery Co.,LTd always abides by the business strategy of "high-quality products & reasonable price", the service concept of "showing respect to you & trying my best", and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers the best products and services. With a history of over 20 years, ship to more than 100 countries.

Thermoforming Ultrasonic Sealing Paper Cup Forming Machine High Speed With Hot Air shunda paper cup making machine 2





Why Choose Us



♦ Advantages

  1. Quality assurance both for our products and service for after-sales.
  2. Favorable price.
  3. Great variety of products.
  4. Attractive design.
  5. Environment Friendly Technology
  6. OEM and ODM service provided.

♦ Our QC team

A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.





FAQ



1. Q: Is your company a factory or trading company?

A: Our company is a factory.



2. Q:Where is your factory located? How can I visit there?

A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !



3. Q:How does your factory do regarding quality control?

A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1).All raw material we used are environmental-friendly; 2).Skilful workers care every details in handling the producing and packing processes; 3).Quality Control Department specially responsible for quality checking in each process.
