Middle Speed Ice Cream Cup Making Machine Fully Automation Ultrasonic

Middle Speed Ice Cream Cup Making Machine Fully Automation Ultrasonic



Specification:




Description:

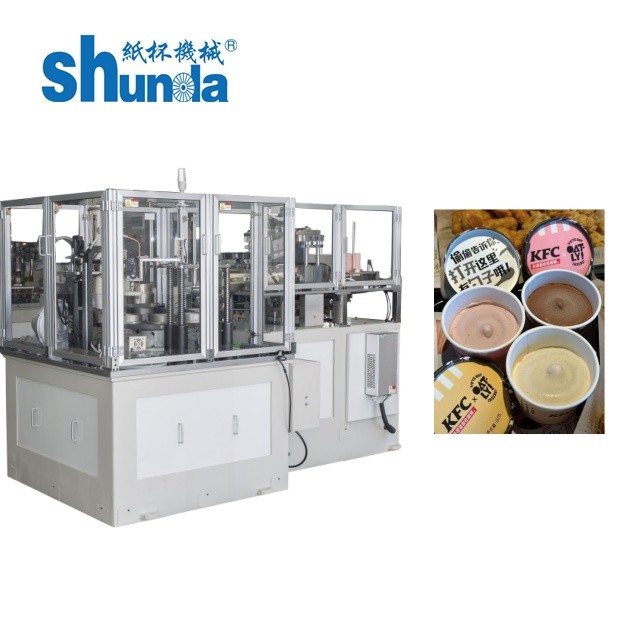

MODEL SMD-90 double turnplate high speed paper cup machine is fit for making hot
and cold drinks  cup.This model can fit for making 2oz to 16oz cup sizes, new driving
system and with cup detection system as option by customers.

* Switzerland Hot air sealing device
* Mitsubishi PLC tracking and Touch screen Controlling cabinet
* Servo-driven bottom-web feed with infinitely variable setting
* Automatic lubrication system
* Infinitely variable drive

Details:

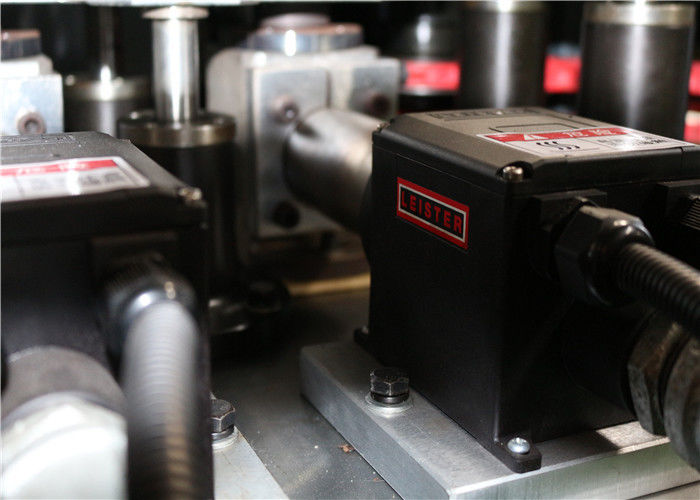

2 sets of Switzerland Lesister original hot air system. Highly promote sealing
rate and decrease the leakage rate.


Gear working, promote the machinery precision.
rate and decrease the leakage rate.


Advantages:

1. One machine with one mould for free, the mould size according to buyer’s
2. Divided box: 125’ type, it has the long life than 100’
3. Valve:SMC(Japan)
4. Transducer: Danfoss(Danmar
5. Machine and eletricity cabinet are seperately, to avoide the dusty and  Eleltricity parts                                damage by Vibration, or cable aging.
6. Use Stainless Steel plate, plastics sparying with the machinery surface.
7. Chinese brand Bearing and speed reducer

Whole Process:



Cup Sample :



After Service :

1  The CD and service&support guide booklet will be sent with machine to guide the installation process          works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2. Test run of the machine&training:
    We will adjust the machine well for one week before the deliverying,ensure the machine has the perfect     performace!
3. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer       incharge of the salary, traffice fee,boarding and lodging, communication.
4.Training of buyer in China:
    We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!The     cost of air ticket,boarding and lodging should provided by buyer
5. We supply the consumable spare parts for free for two years use

FAQ:

What are the key components of a fully automatic paper cup machine?

1. PLC control system
   The "brain" of the machine, responsible for controlling the entire production process, adjusting parameters (cup size, speed) and troubleshooting faults.

2. Servo motor & drive unit
   Provide stable power and precise positioning for each station, ensuring consistent forming accuracy and production speed.

3. Heat sealing unit
   Equipped with temperature-controlled heating plates, it realizes uniform heat sealing of cup body and bottom to prevent leakage.

4. Feeding & cutting mechanism
   Includes paper roll feeding rollers and blank cutting knives, ensuring accurate cutting of blanks matching the cup specifications.

5. Rim curling mold
   Customizable according to cup size, it shapes the top rim of the cup to meet safety and aesthetic requirements
6.

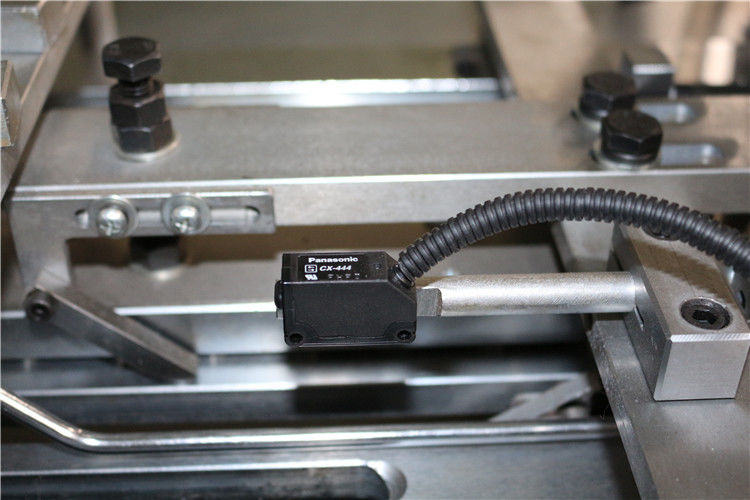

7. Counting & discharging sensor
   Automatically counts finished products and triggers the discharging system to avoid over-counting or jamming.
