| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE |
| Model Number: | SMD-90 |
| Minimum Order Quantity: | 1 set paper cup machine |
| Packaging Details: | Packaging Details: Seaworthy and suitable for long&bumpy roads 1.Machine solidly packed in waterproof film. 2.Machine bottom tightly fixed onto wooden plate. 3.Machine body safely put into wooden case |
| Delivery Time: | 35-45 working days after confirmed cup size and received deposit |
| Payment Terms: | L/C, D/A, T/T, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets/month |
| Speed: | 100-120pcs/min | Material: | 135-450gram(single PE Coated Paper) |
|---|---|---|---|
| Cup Size: | 4-16oz | Output: | 12KW,380V/220V,60HZ/50HZ |
| Configuration: | ULTRASONIC & HOT AIR SYSTEM | Automatic: | Full Automatic |
| Air Compressor: | 0.4 M³/Min 0.5MPA | Net Weight: | 3.4 TONS |
| Dimension Of Machine: | 2500×1800 ×1700 MM | Dimension Of Cup Collector: | 900 ×900 ×1760 MM |
| High Light: | paper tea cup manufacturing machine,paper cups making machine |
||

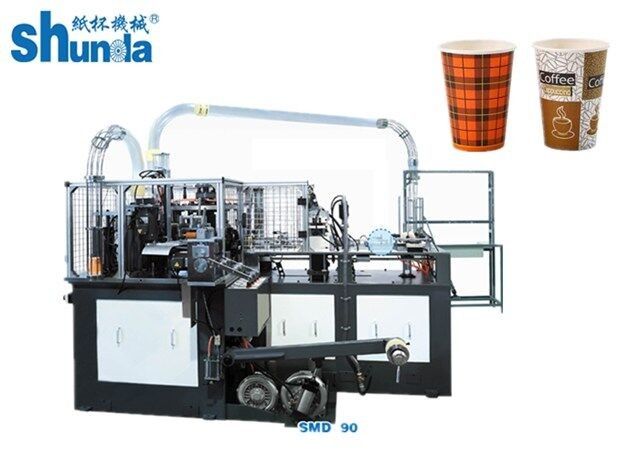

High Speed Disposable Paper Cup Making Machine4-16oz With Multi Running Positions
Description
SMD-90 paper cup forming machine is an automatic paper cup machine with multi-running positions. The machine runs a whole procedure of paper feeding , guling , oiling , bottom punching , heating , paper back, knurling and curling. It uses the microcomputer control frequency changer , and it may automatically transform the speed.
Specification
| MODEL | SMD-90 PAPER CUP MACHINE | |
| Speed | 100-120 PCS/MIN | |
| Cup size Range | 4-16oz | |
| Material | Single and Double PE coated paper | |
| Paper request Gram | 135-450GSM(single and double PE coated paper) | |
| Heating system | Hot air system (from Switzerland) | |
| Output | 380V/220V 12 KW,50HZ, Three Phase four wire | |
| Air compressor | 0.4 M³/Min 0.5MPA | |
| Net weight | 3.4 TONS | |
| Machinery Size | 2500 ×1800 ×1700 MM | |
| Counter Size | 900 ×900 ×1760 MM |
Cup Sample
Advantage
Economical and practical
Heating system seal the paper body
Working for 24 hours with no stopping
One worker can operate two or three machine
After service
1 The service&support guide booklet will be sent with machine to guide the installation process
works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.
2. Test run of the machine&training:
We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.
3. We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the
buyer in charge of the salary, traffic fee, boarding and lodging, communication.
4. Training of buyer in China:
We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson!
The cost of air ticket,boarding and lodging should provided by buyer
5 .We supply the consumable spare parts for free for two years use
FAQ
Q1:What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer FOB shanghai price .but we also accept other way like L/C , western union ,and do CFR&CIF etc.
Q2.Where I can get the raw material?
solution1: buy printed and cutted paper cup fan from us
solution2: find the factory in your area to print and cut for you
solution3:buy the flexo printing machine and die cutting machine to print and cut by yourself .
if you are new in this field ,i suggest you'd better to adopt solution 1 or 2 when you are in first stage.
Q3.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one worker ,what you do is just learn some basic thing like wet the paper cup fan , lubricating the moving parts regularly .And we will sent you video ,we suggest you to come to visit our factory to learn more thing by yourself for free , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 24 hrs .Our engineer also can be distributed to overseas as you required.
Q4. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
