| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE ISO9001 |
| Model Number: | SMD-90 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | standard seaworthy package with pp film,wooden plate&case |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T or L/C, Western Union |
| Supply Ability: | 30 sets per month |
| Speed: | 100-160cups/min | Cup Weight: | 135-450gsm |
|---|---|---|---|
| Cup Size: | 2oz - 32oz | Output: | 380V/220V 50Hz 4.5Kw |
| Machine Weight: | 3000Kg | Machine Size: | 2.5x1.7x1.8m |
| High Light: | paper tea cup manufacturing machine,paper cups making machine |
||
Specification
| Model | SMD-90 | |||
| Capacity | pcs/min | 100-120 | 90-110 | 80-100 |
| Size Range | mm(max) | Top diameter:90 Bottom Diameter:80 Height:140 | Top diameter:110 Bottom Diameter:80 Height:170 | Top diameter:125 Bottom Diameter:100 Height:170 |
| Suitable Paper Thickness | gsm | 135-450 | ||
| Sealing Method | Ultrasonic and hot air system | |||
| Running Power | KW | 10 | 11 | 12 |
| Air compressor | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa | |
| Net weight | Kgs | 3400 | 3500 | 3600 |
| Machine dimension | mm | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
| Collector Dimension | mm | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
Description

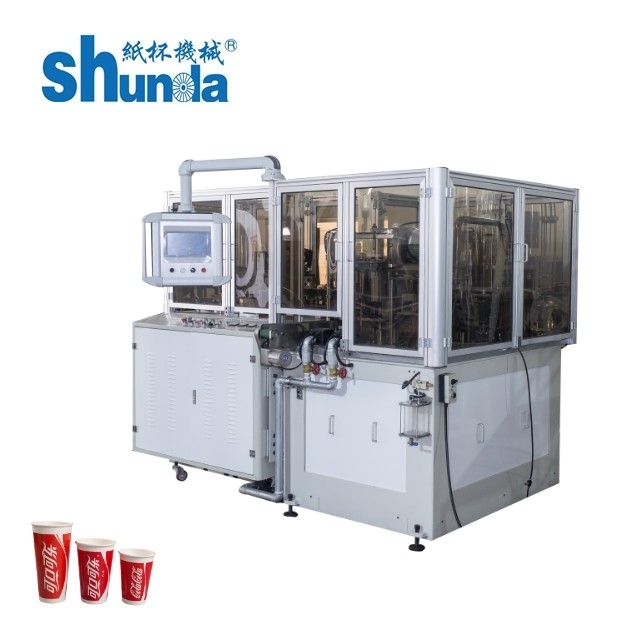

SMD-90 paper cup making machine is an improved and upgraded machine of the low speed types. In order to realize optimal functions and performance, it utilizes open cam design, interrupted division, gear drive and longigudinal axis structure.
It could produce 3-46 oz cold and hot drink paper cup, such as coffee cup ,tea cup , water cups etc .especially it is popular for making small coffee cup 3oz for Algeria market.
Application 2-32oz hot drink paper cup making
Highlights
Ultrasonic system from Taiwan--EVERGREEN brand.
*We do not cheat our clients with fake systems made in China mainland,this is why our machines use much longer in more stable condition.
Quality control
1).All parts are inspected then applied
2).10 year experience assembly workers,always follow strict quality rules
3). 3 years warranty, 7 day 24 hour service availble.
♦ Advantages
♦ Our QC team
A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Packaging and Shipment
