Speed: | 90-100pcs/min | Material: | 135-450gram(single And Double PE Coated Paper ) |
---|---|---|---|
Cup Size: | <20oz | Output: | 220/380v 60HZ 12KW |
Configuration: | Ultrasonic&Hot Air System | PLC: | Mitsubishi |
Production: | Double Wall Paper Cup | ||
Highlight: | high speed paper cup machine,paper cup manufacturing machine |

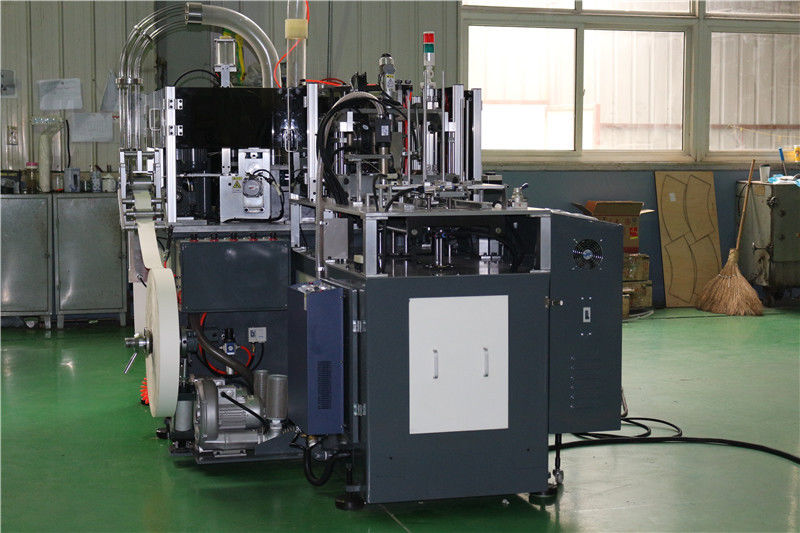

2 - 32oz Disposable Paper Cup Manufacturing Machine 90 - 100pcs / Min
Specification
MODEL | SMD-80A DOUBLE WALL CUP MACHINE |
Speed | 90-100 PCS/MIN |
Cup size Range | <20oz |
Material | Single and Double PE coated paper |
Paper request Gram | 135-450GSM(single and double PE coated paper) |
Heating system | Hot air system (from Switzerland) |
Output | 380V/220V 16 KW,50HZ, Three Phase four wire |
Air compressor | 0.5 M³/Min |
Net weight | 3.4 TONS |
Machinery Size | 2500 ×1800 ×1700 MM |
Counter Size | 900 ×900 ×1760 MM |
Advantage
1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6. Our knurling is very easy to adjust,but others are not easy(this is very important,other machine maybe will bring you big trouble)

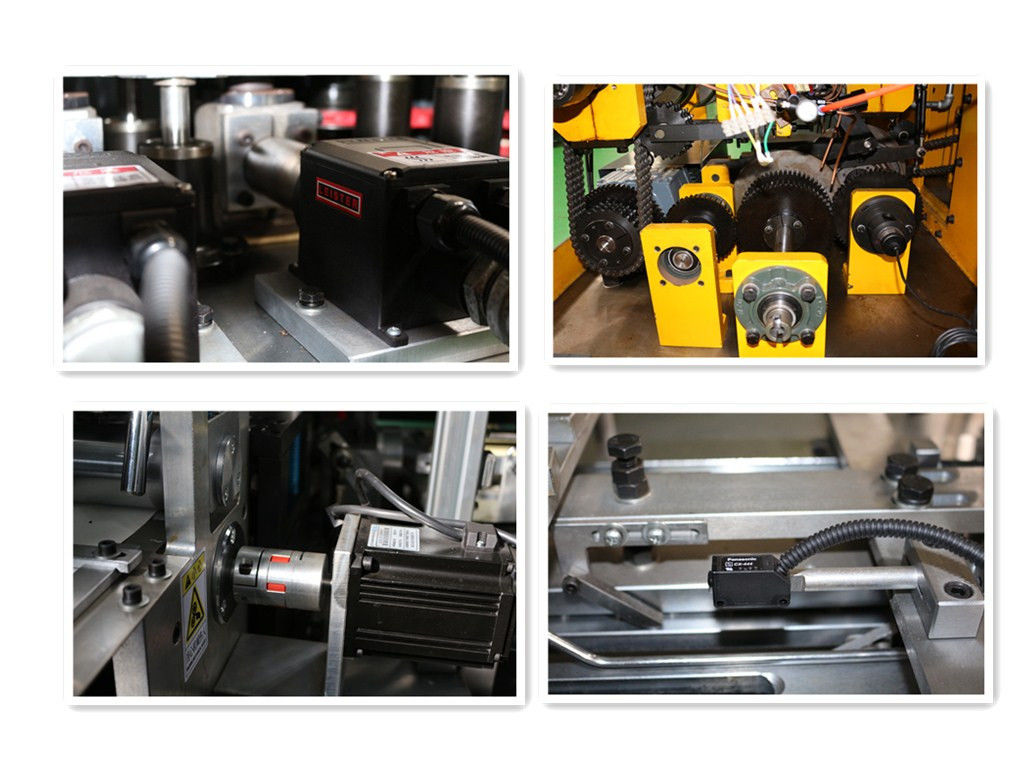

Details:
FAQ
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1).All raw material we used are environmental-friendly; 2).Skilful workers care every details in handling the producing and packing processes; 3).Quality Control Department specially responsible for quality checking in each process.
Packaging Details
Seaworthy and suitable for long&bumpy roads
1.Machine solidly packed in waterproof film.
2.Machine bottom tightly fixed onto wooden plate.
3.Machine body safely put into wooden case
