| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE |
| Model Number: | SMD-90 |
| Minimum Order Quantity: | 1 set paper cup machine |
| Packaging Details: | wodden case |
| Delivery Time: | 35-45 working days after confirmed cup size and received deposit |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets/month |
| Speed: | 130-150pcs/min | Material: | 135-450GRAM(single And Double PE Coated Paper) |
|---|---|---|---|
| Cup Size: | 2-46oz | Output: | 12KW,380V/220V,60HZ/50HZ |
| Configuration: | Ultrasonic&hot Air System | Brand: | PANASONIC/LEISTER/TECO/SMC/EVERGREEN/MUTSUBISHI... |
| Air Compressor: | 0.4 M³/Min 0.5MPA | Net Weight: | 3.4 TONS |
| Dimension Of Machine: | 2500×1800 ×1700 MM | Dimension Of Cup Collector: | 900 ×900 ×1760 MM |
| High Light: | automatic paper cup making machine,paper cups making machine |
||

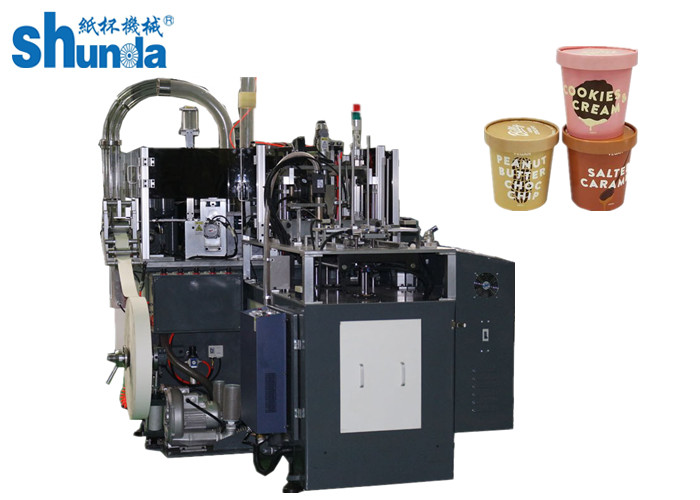

High Speed Automatic Paper Cup Forming Machine
Advantage:
1.It has 2 sets of original Leister hot air system imported from Switzerland,guarantee the stability of heating.
2.Evergreen ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
Details:
1.Panasonic photoelectric tracking can check every part and report.Imported from Jpan.
2.Hot air system and protect system: 2 set of hot air systems can decrease the rate of leakage. Our factory using the whole set of Leister hot air system with protection system. And our system sets up on the fixed plate, do not moving during production. Almost impossible to damage. Also the only one have the protect system that hot parts will go down, keep the distance with paper cup and cup mould when the machine stop.
3.Servo motor: Service for bottom paper feeding. The feature of runs more stable and accuracy, reduce the waste of bottom paper. Servo motor is made in Japan by MITSUBISHI.
4.Gear and open cylindrical promote the stability and speed.
Product Description of automatic paper cup forming machine
MODEL | SMD-90 PAPER CUP MACHINE |
Speed | 130-150 PCS/MIN |
Cup size Range | 2-46oz |
Material | Single and Double PE coated paper |
Paper request Gram | 135-450GSM(single and double PE coated paper) |
Heating system | Hot air system (from Switzerland) |
Output | 380V/220V 12 KW,50HZ, Three Phase four wire |
Air compressor | 0.5 M³/Min |
Net weight | 3.4 TONS |
Machinery Size | 2500 ×1800 ×1700 MM |
Counter Size | 900 ×900 ×1760 MM |
FAQ
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China, about 1.5 hours by car from Shanghai .All our clients, from home or abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunda people always attach great importance to quality controlling from the very beginning to the very end: 1).All raw material we used are environmental-friendly; 2).Skilful workers care every details in handling the producing and packing processes; 3).Quality Control Department specially responsible for quality checking in each process.
