| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE |
| Model Number: | SMD-90 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | wood case |
| Delivery Time: | 40 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 SETS /MONTH |
| Production: | Paper Cup Making Machine | Material: | Single And Double PE Coated Paper |
|---|---|---|---|
| Output: | 220/380v 60HZ 12KW | Cup Size: | <16oz |
| Speed: | 100 Pcs/min | Cup Thickness: | 135-450 Gram |
| Machine Size: | 2.5*1.8*1.7m | Air Compressor: | 0.5MPA |
| High Light: | disposable cup making machine,paper cup manufacturing machine |
||

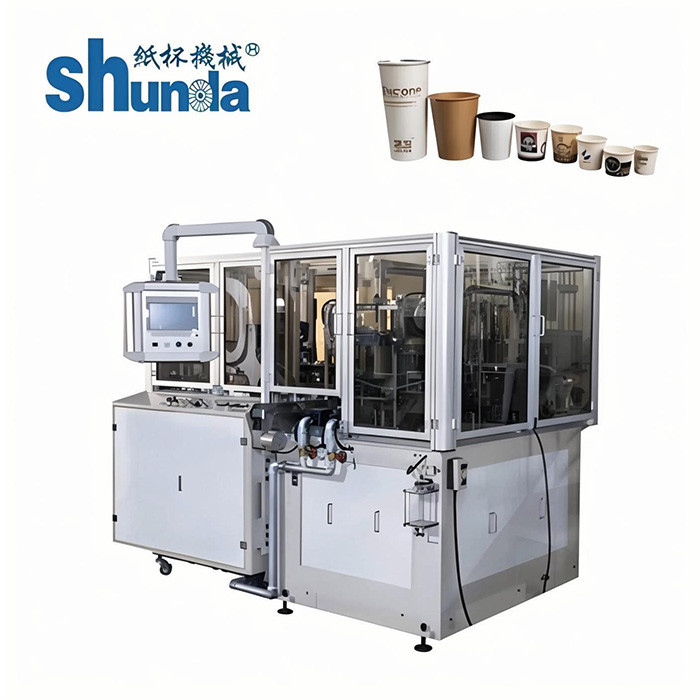

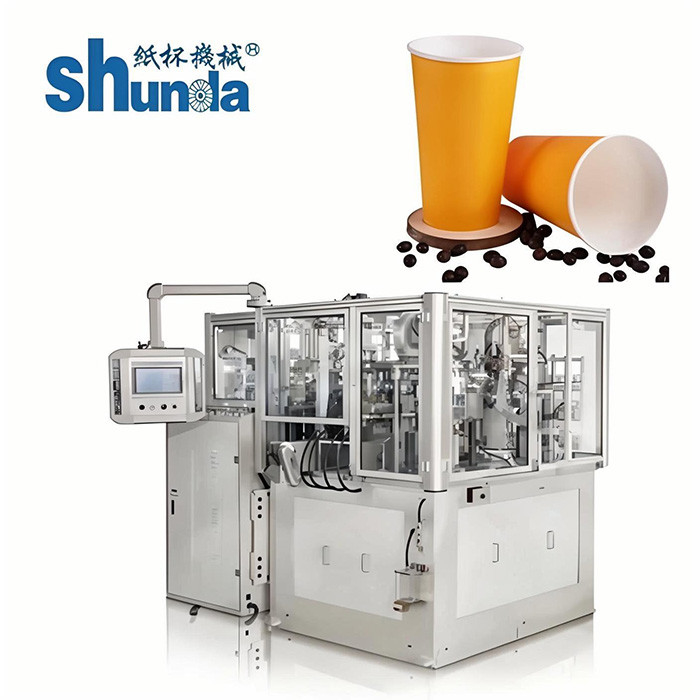

Automatic Paper Cup Making Machine For Hot And Cold Drink Cups Paper Cup Forming Machine With Hot air
Advantage:
|
1. Two sets of Leister hot air system original imported from Swiss guarantee the stability of heating. |
| 2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper. |
| 3.Panasonic photoelectricity track system can checking the every part and report. |
| 4.Open cylindrical divide locating,heigh precision.Gear working make the high speed and stablity. |
|
5.Automatically Oil lubrication system,labor can add oil every 8 month. |

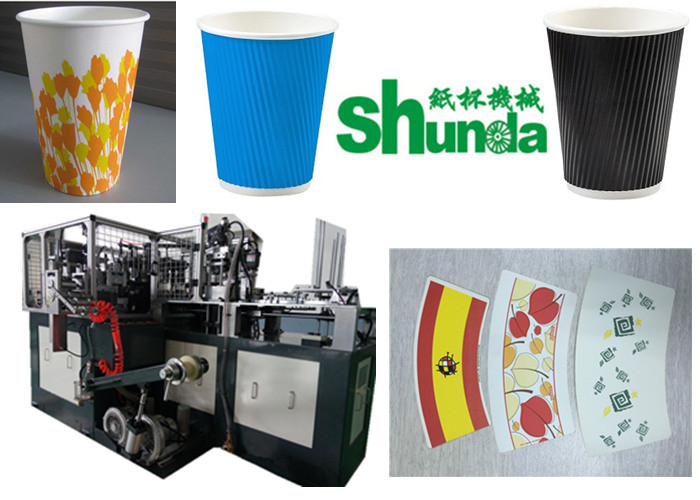

Product Pictures of automatic paper cup machine
Details:
|
MODEL |
Paper Cup sleeve machine SHUNDA-80A |
|
SPEED |
100PCS/MIN |
|

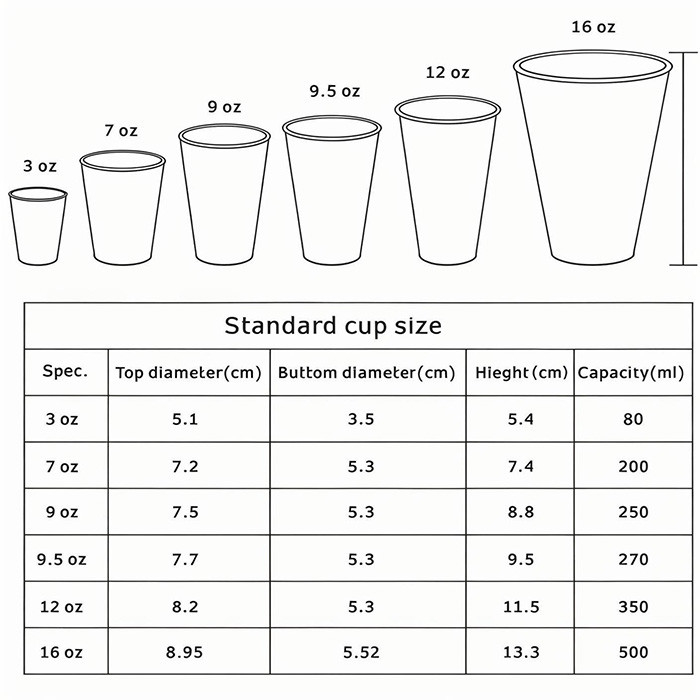

CUP SIZE |
< 16OZ |
|
MATERIAL |
135-450GRAM |
|
CONFIGURATION |
ULTRASONIC&HOT AIR |
|
OUTPUT |
380V/220V,60HZ,11kw |
|
AIR COMPRESSOR |
0.5 M³/Min |
|
NET WEIGHT |
4 TONS |
|
MACHINE SIZE |
2500 ×1800 ×1700 MM |
|
COUNTER SIZE |
900 ×900 ×1760 MM |
|
FOB SHANGHAI |
42000 USD/SET |
Paper Cup Making Process:
1. Paper Making Machine make paper roll.
2. Flexo Printing Machine or Paper cup Printing machine to Paper roll
3. Paper die-cutting machine to make paper fan which is paper body
4. We use electrical heater or Evergreen Ultrasonic to send paper fan to the mould and sealing
5. At the same time, the paper bottom automatic cut to round type and sent to the mould
Together with paper fan.
6. Preheat the bottom, heat again the bottom, and curling the top edge of the cup
7. Sealing the bottom and body strongly, Knurling the bottom.
8. Discharging finished paper cup automatically from moulds. Sending to the collector and be
collected and piled and count automatically. Each 50pcs or 100pcs, we can set alarm, so
easy to collect.
After-sale
We will send the guide book and CD with machine together,direct you how to install,adjust and maintain the machine.You may contact us any time for any question,it will be our pleasure to serve you.We support
3 years warranty on machinery,one year on electronic,standard warranty on EVERGREEN ultrasonic.
Test run of the machine&training
We will adjust the machine well until perfect before the delivery, ensure the machine has the perfect performance!
You can come to our factory to study how to run the machine,or we can dispatch technologists to your factory, guiding installation, adjustment for a period.The training for free ,but the other fee must be paid by customer.
