Place of Origin: | China |
---|---|
Brand Name: | Shunda |
Certification: | CE201090502/CE |
Model Number: | SMD-90 |
Minimum Order Quantity: | 1 set |
Price: | $ 450000-60000 USD/SET |
Packaging Details: | Wooden Pallet for paper cup making machine |
Delivery Time: | 25-35 working days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 15 set per mouth |
Speed: | 90-100 Pcs/min | Material: | Single Or Double PE Coated Paper |
---|---|---|---|
Color: | White | Cup Range: | < 16 Oz |
Heating System: | Switzerland Hot Air System | Air Compressor: | 0.5M^3/min |
Product Output: | 380V,16 KW,50HZ, Three Phase Four Wire | Machine Size: | 2500×1800×1700mm |
Counter Size: | 900×900×1760 Mm | Weight: | 3.5 Tons |
Highlight: | disposable cup making machine,paper cup manufacturing machine |

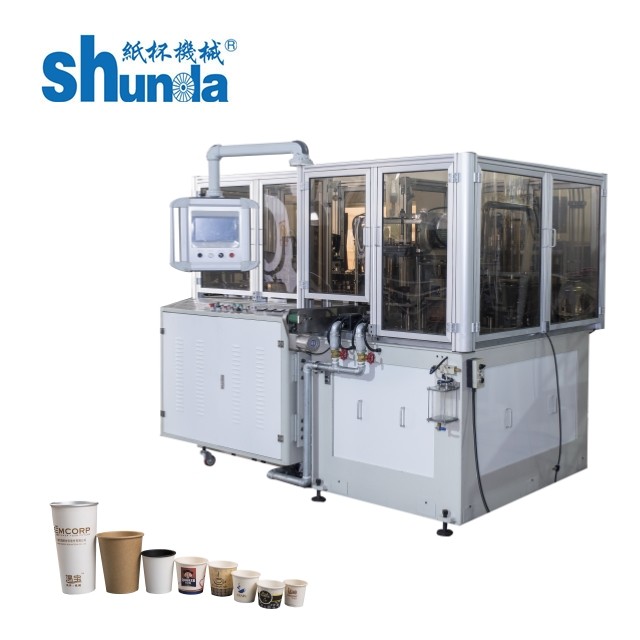

Advantage for paper cup machine SMD-90
1.Open cylindrical indexing gear
2.Switzerland Hot air sealing device
3.Mitsubishi PLC tracking and Touch screen Controlling cabinet
4.Servo-driven bottom-web feed(Brand:Taiwan DONGYUAN)
5.Automatic oil-spray lubrication system
6.Infinitely variable drive
7.Safety Door opening protection device
8.Photoelectric tracking and detecting every step
9.Automatic collecting and counting system
Technology Specification
Model | SMD-90 | |||
Capacity | pcs/min | 100-120 | 90-110 | 80-100 |
Size Range | mm(max) | Top diameter:90 Bottom Diameter:80 Height:140 |
Top diameter:110 Bottom Diameter:80 Height:170 |
Top diameter:125 Bottom Diameter:100 Height:170 |
Suitable Paper Thickness | gsm | 135-450 | ||
Sealing Method | Ultrasonic and hot air system | |||
Running Power | KW | 10 | 11 | 12 |
Air compressor | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa | |
Net weight | Kgs | 3400 | 3500 | 3600 |
Machine dimension | mm | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
Collector Dimension | mm | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
Machine Running Video
http://www.youtube.com/watch?v=OX6v6k-0sLo&feature=youtu.be
Market
Advantages
Our QC team
A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
