14Kw Shunda High Speed Paper Cup Making Machine With Custom Cup Size
Key Attributes
Product Summary
14Kw Shunda High Speed Paper Cup Making Machine With Custom Cup Size Key Specifications Attribute Value Max Speed 160 Cups/min Model SMD-90 Air Compressor 0.4M³/Min Output 14Kw Machine Weight 3400Kg Air Consumption 0.5m3/min Heating System Hot Air System (from Switzerland) Machine Size 2500 ×1800 ...
Product Details
high speed paper cup making machine
,14Kw high speed paper cup machine
,custom high speed paper cup machine
| Attribute | Value |
|---|---|
| Max Speed | 160 Cups/min |
| Model | SMD-90 |
| Air Compressor | 0.4M³/Min |
| Output | 14Kw |
| Machine Weight | 3400Kg |
| Air Consumption | 0.5m3/min |
| Heating System | Hot Air System (from Switzerland) |
| Machine Size | 2500 ×1800 ×1700 MM |

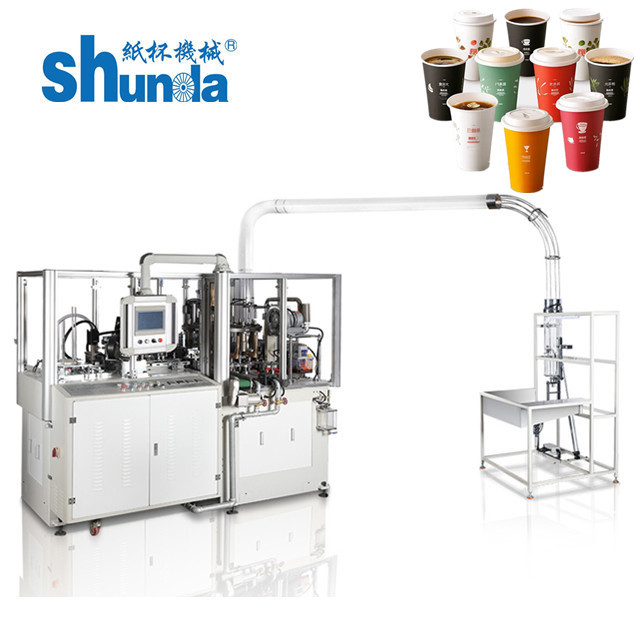

The SMD-90 is our high-speed paper cup machine, engineered for both single and double PE coated paper cup production. This advanced forming machine delivers exceptional efficiency and productivity for your business.
| Parameter | Value 1 | Value 2 | Value 3 |
|---|---|---|---|
| Capacity (pcs/min) | 100-120 | 90-110 | 80-100 |
| Size Range (mm max) | Top:90, Bottom:80, Height:140 | Top:110, Bottom:80, Height:170 | Top:125, Bottom:100, Height:170 |
| Suitable Paper Thickness (gsm) | 135-450 | ||
| Sealing Method | Ultrasonic and hot air system | ||
| Running Power (KW) | 10 | 11 | 12 |
We manufacture mold sizes according to your specific requirements, ensuring perfect fit for your paper cup production needs.
- Open Cam dividing mechanism for easy maintenance and reliability
- Quality gear-controlled main mechanism for superior efficiency
- Hot air bottom sealing system for optimal performance
- Combined hot air and ultrasonic side sealing technology
- Taiwan-made Evergreen ultrasonic sealing components
- Two-step cup top curling process for perfect finish
- PLC control with touch screen interface
- Automatic cup delivery system with counter
- Servo motor-controlled bottom paper feeding for precision
Our comprehensive support package includes:
- Professional installation and setup
- Operator and maintenance training
- Regular maintenance and repair services
- 24/7 technical support
- Performance upgrades and enhancements
The machine is securely packaged in a wooden crate with protective materials to ensure safe transportation. We offer both sea and air freight options with tracking provided.
We provide complete operation manuals and remote troubleshooting assistance via video documentation to minimize downtime and maximize productivity.
