Product Description:

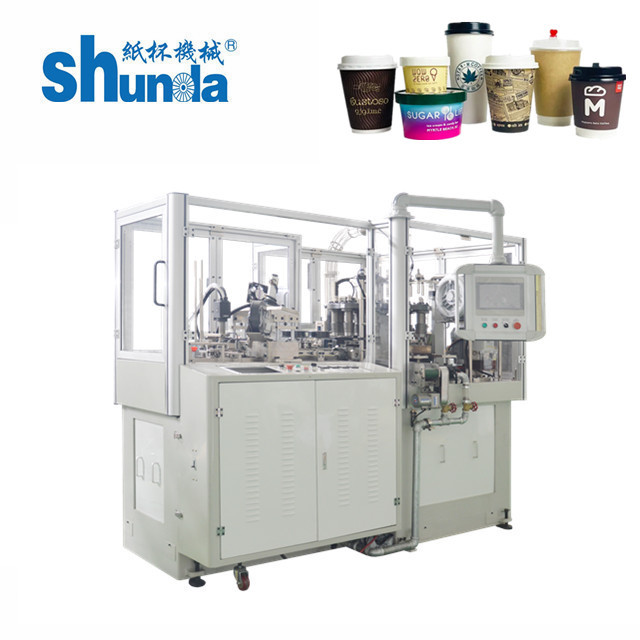

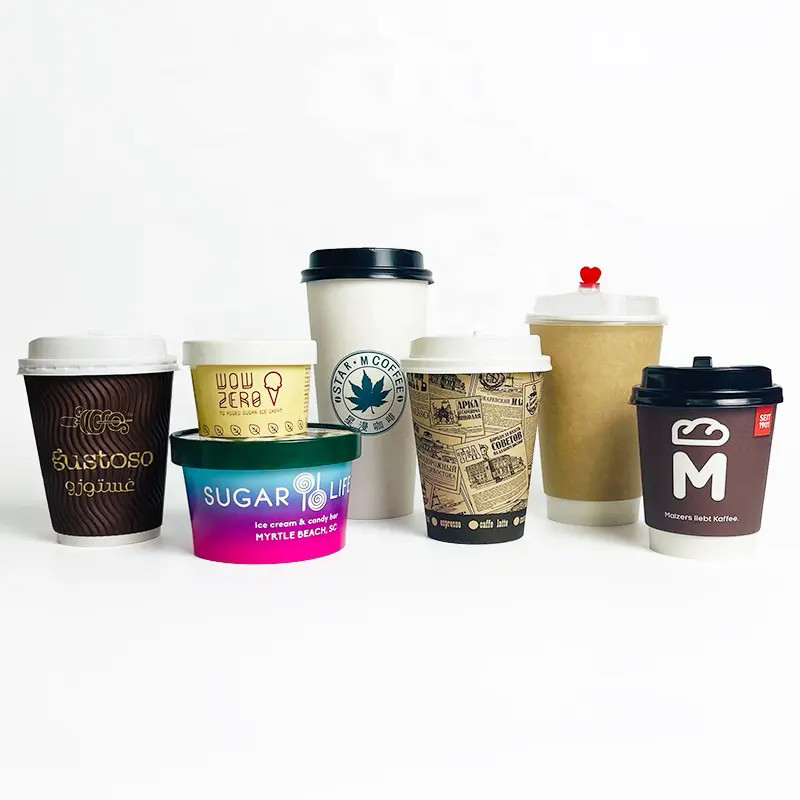

SMD-90 double turnplate high speed paper cup machine is fit for making hot and cold drinks cup.This model can fit for making 2oz to 16oz cup sizes, new driving system and with cup detection system as option by customers.
Technical Parameters:
| Model |
SMD-90 |
| Capacity |
pcs/min |
100-120 |
90-110 |
80-100 |
| Size Range |
mm(max) |
Top diameter:90
Bottom Diameter:80
Height:140 |
Top diameter:110
Bottom Diameter:80
Height:170 |
Top diameter:125
Bottom Diameter:100
Height:170 |
| Suitable Paper Thickness |
gsm |
135-450 |
| Sealing Method |
|
Ultrasonic and hot air system |
| Running Power |
KW |
10 |
11 |
12 |
| Air compressor |
|
0.4m²/Min. 0.5MPa |
0.5m²/Min. 0.5MPa |
0.6m²/Min. 0.5MPa |
| Net weight |
Kgs |
3400 |
3500 |
3600 |
| Machine dimension |
mm |
2500*1800*1700 |
2600*1800*1800 |
2700*1800*1800 |
| Collector Dimension |
mm |
900*900*1760 |
1000*900*1860 |
1100*900*1860
|
Advantage:
1. Photoelectric tracking can check every part and report.It can detect the cup rim and cup bottom.such as unstuck stain,broke,curl.Imported from Japan by panasonic.
2.2sets of original hot air system guarantee the stability of heating.Imported fom Switzerland by Leister.
3.We use EVERGREEN Ultrasonic to heat the paper body,make the glue more stronger.
4.Servo motor control the gap of the bottom-paper within 0.1mm.And it will not skew,keep the distance same between the two sides of the bottom-paper.From Taiwan by TECO.
5.Camera system can inspect the cup situation.If the cup is standard,it will blow into this tube,the defective production will blow into this tube.
6.Automatic Oil lubrication system for the machien’s moving parts,which is very useful,cause the worker don’t have to operate it every day,It save many time ang promote the efficiency and the life of the machine.
7.One labor can operate multi machine at same time,decrease the artificial cost.
.............
Support and Services:
The High Speed Paper Cup Machine is a complex piece of machinery that requires technical support and services to ensure optimal performance. Our team of experts is available to provide the following support:
- Installation and setup of the machine
- Training on how to operate the machine
- Regular maintenance and repair services
- Technical troubleshooting and problem-solving
- Upgrades and modifications to improve performance
Our goal is to make sure that your High Speed Paper Cup Machine is running efficiently and effectively, minimizing downtime and maximizing productivity.
Packing and Shipping:
Product Packaging:
The High Speed Paper Cup Machine will be carefully packaged in a sturdy wooden crate to ensure safe transportation and delivery. The machine will be securely fastened to prevent any movement or damage during transit.
Shipping:
The High Speed Paper Cup Machine will be shipped via a reputable freight carrier to the customer's designated delivery address. The estimated delivery time will be provided to the customer prior to shipment. The customer is responsible for unloading the machine upon delivery and any associated fees.
About us
Haining Chengda Machinery Co.,Ltd always abides by the business strategy of "high-quality products & reasonable price", the service concept of "showing respect to you & trying my best", and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers the best products and services. With a history of over 20 years, ship to more than 100 countries.
