Shunda High Speed Paper Cup Machine For Single / Double PE Paper
Key Attributes
Product Summary
Shunda High Speed Paper Cup Machine For Single / Double PE Paper Key Specifications Model SMD-90 Max Speed 160 Cups/min Brand Shunda Inspection System Keyence Output 14Kw Machine Weight 3400Kg Heating System Hot Air System Air Consumption 0.5m3/min Product Overview The SMD-90 double turnplate high ...
Product Details
Single high speed paper cup machine
,Double high speed paper cup machine
,pe paper cup high speed machine
| Model | SMD-90 |
| Max Speed | 160 Cups/min |
| Brand | Shunda |
| Inspection System | Keyence |
| Output | 14Kw |
| Machine Weight | 3400Kg |
| Heating System | Hot Air System |
| Air Consumption | 0.5m3/min |

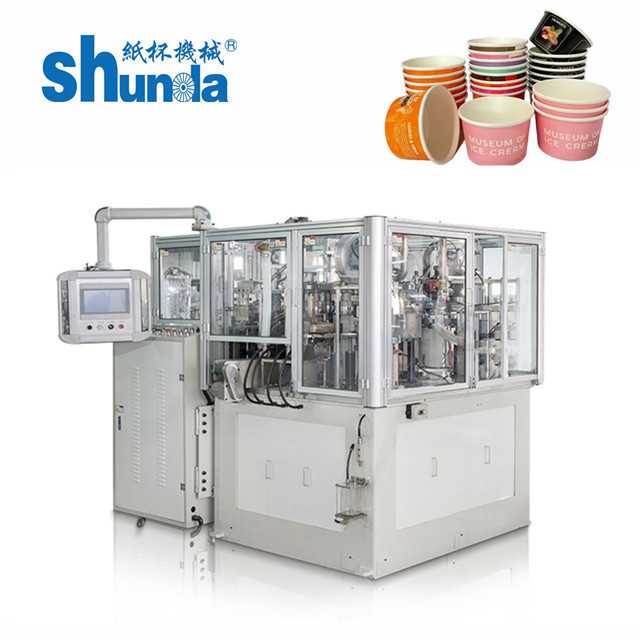

The SMD-90 double turnplate high speed paper cup machine is designed for manufacturing both hot and cold drink cups. This versatile model accommodates cup sizes ranging from 2oz to 16oz, featuring a new driving system with optional cup detection capabilities.
| Parameter | Value 1 | Value 2 | Value 3 |
|---|---|---|---|
| Capacity (pcs/min) | 100-120 | 90-110 | 80-100 |
| Size Range (mm max) | Top Ø90, Bottom Ø80, Height 140 | Top Ø110, Bottom Ø80, Height 170 | Top Ø125, Bottom Ø100, Height 170 |
| Suitable Paper Thickness (gsm) | 135-450 | ||
| Sealing Method | Ultrasonic and hot air system | ||
| Running Power (KW) | 10 | 11 | 12 |
| Air Compressor | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa |
| Net Weight (Kgs) | 3400 | 3500 | 3600 |
- Advanced double barrel cam indexing
- PLC closed-loop control system
- Automatic oil lubrication system
- Cup inspection and intelligent control
- Servo control for bottom feeding
- Flameless hot air sealing
- Comprehensive installation guide and support booklet included
- One-week pre-delivery test run and adjustment
- Optional on-site technician support (costs covered by buyer)
- Free training in China until complete operator proficiency
- Two years of free consumable spare parts
The machine is securely packaged in a wooden crate with foam and protective materials to ensure safe transportation. Worldwide shipping is available through reputable carriers, with costs calculated based on destination and package weight.
A: Shunda is our brand since 1998.
A: The minimum order quantity is 1 set.
A: Delivery typically takes 25-30 days.
