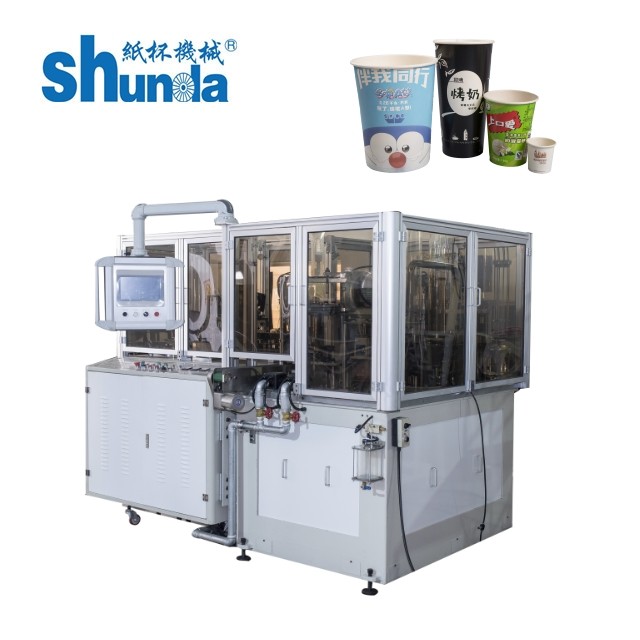

Fully Automatic Ultrasonic High Speed Paper Cup Machine 160 Cups/Min

Fully Automatic Ultrasonic High Speed Paper Cup Machine 160 Cups/Min

Key Attributes

Brand Name:Shunda
Model Number:SMD-90
Place of Origin:China
Certification:FDA, ISO: 9000
Minimum Order Quantity:1 SET
Price:negotiation
Supply Ability:30 SETS per month
Delivery Time:20-35working days after received your payment
Payment Terms:T/T or L/C
Standard Packaging:Wooden Pallet for paper cup making machine

Product Summary

Fully Automatic Ultrasonic High Speed Paper Cup Machine 160pcs/Min Description: SMD-90 is a Paper Cup machine,which is designed By HAINING CHENGDA MACHINERY CO.,LTD,It can produce both single and Double PE coated paper Cups(hot drink and cold drink ). As technology development, it will take place of ...

Product Details

Highlight:

paper cups making machines

,

disposable cup making machine

Product Name: High Speed Paper Cup Machine
Color: White Or Customized
CUP Thickness: 0.3-0.47 MM
Max Speed: 160 Cups/min
Material: Single/Double PE Coated Paper
Extra: Can Connect With Inspection System
AIR COMPRESSOR: 0.5 M³/Min
Cup Size: <16oz
Product Description
Detailed Specifications & Features



Fully Automatic Ultrasonic High Speed Paper Cup Machine 160pcs/Min





Description:



SMD-90 is a Paper Cup machine,which is designed By HAINING CHENGDA MACHINERY CO.,LTD,It can produce both single and Double PE coated paper Cups(hot drink and cold drink ). As technology development, it will take place  of the formally machines in market day by day.Higher autmation,higher

stable with international famous brand electric appliance.





Specifications:



MODEL

                    SMD-90

SPEED

                    100-160 CUPS/MIN

CUP SIZE RANGE

            Top Diameter: 60MM(Min)- 115 MM(Max)

            Bottom Diameter: 40MM(Min)-85MM(Max)

            Height: 50MM(Min)-180MM(Max)

MATERIAL

                    135-450GRAM

CONFIGURATION

                    ULTRASONIC&HOT AIR

OUTPUT

                    380V/220V,60HZ

AIR COMPRESSOR

                    0.5 M³/Min

NET WEIGHT

                    3.0 TONS

MACHINE SIZE

                    2500  ×1800 ×1700 MM

COUNTER SIZE

                    900 ×900 ×1760 MM







Applications:



Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc



Fully Automatic Ultrasonic High Speed Paper Cup Machine 160 Cups/Min





Eletricity Box



Distribution  Box has 1  pcs of Touch screen, 4 pcs of temperature Control device, 2 pcs of indicator light, 6 pcs of button, 1 pcs of rotary Knob , 1 pcs of key, 1 pcs of Electricity Main switch in lateral . Button is : Stop, Main machine stop,Main machine start, Heat start, Heat stop, Alarm stop,Alarm Reset. There is 3 buttons in control handle, the black is inching button, the red is machine stop, the green is Main machine start. in machinery, there is 3 button, 2 pcs of them in front of machine, they control the Bottom paper’s up and down. In back of machine,there is scram button,Now we introduce the every button and its function.





Maintaince  Notice



1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.





After Service



1. warranty:3 years

2.the guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoide or solve the problem which the buyer will face.

3.we will adjust the machine well for one week before the delivery,ensure the machine has the perfect performance.

4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and Daily salary.

5.we supply the free training of buyer,the training won't stop until the buyer control the whole leson!the cost of air ticket,boarding and lodging should provided by buyer.

6.we supply the consumable spare parts for free  for 3 year use.
