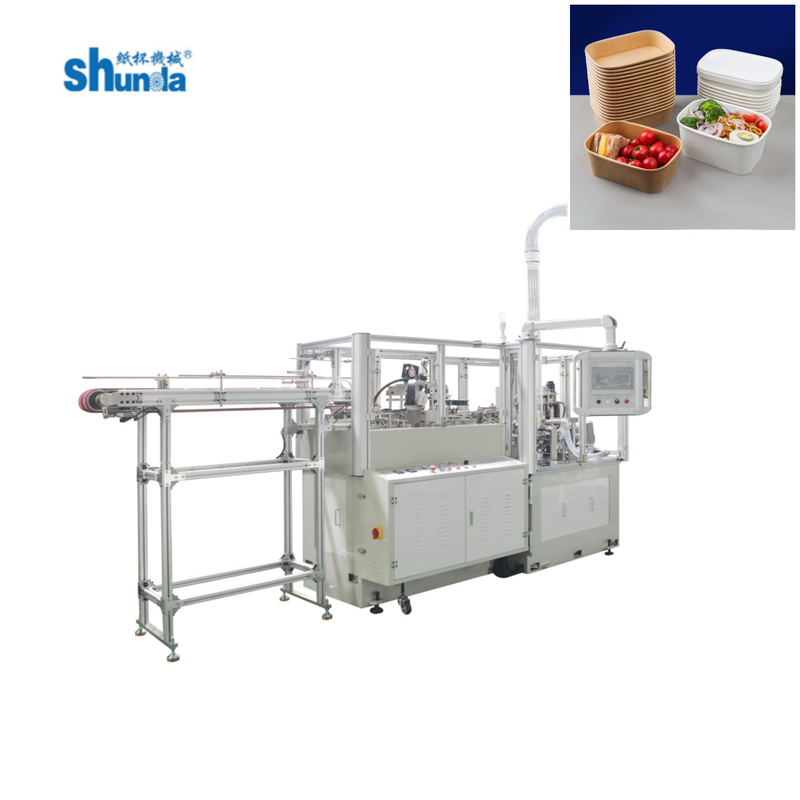

Fast Speed Automatic Intelligent Rectangular Food Paper Bowl Making Machine

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: ISO9001 CE
Model Number: SMD-80C
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard seeworthy package
Delivery Time: 35-45 working days after confirmed cup size and received deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 18 sets per month
Detail Information
Product: Square Paper Bowl Making Machine Speed: 40-45 Pcs/min
Top Diameter: 160*130mm Height: 95mm
Standard: CE CONFIGURATION: ULTRASONIC & HOT AIR
OUTPUT: 380V/220V,60HZ Air Consumption: 0.5Mpa
Weight: 6.2Ton Demiension: 3200×2100 ×1700 MM

Product Description

Fast Speed Automatic Intelligent Rectangular Food Paper Bowl Making Machine

Specification:

MODEL

                   SMD-80C

SPEED

                   40-45PCS/MIN

MAX BOWL SIZE

   180(Top length) * 160 (btm length)*95 MM(Height)

MATERIAL

                    135-450GRAM

CONFIGURATION

                    ULTRASONIC&HOT AIR

OUTPUT

                    380V/220V,60HZ

AIR COMPRESSOR

                    0.5 M³/Min

NET WEIGHT

                     6.2 TONS

MACHINE SIZE

                   3200×2100 ×1700 MM

COUNTER SIZE

                    1200×1200 ×1760 MM


Description:
SMD-80C is a Square and Rectangular Paper Bowl Making machine,which is designed By HAINING CHENGDA MACHINERY CO.,LTD,
It can produce both single and Double PE coated paper Bowls. As technology development, it will take place  of the formally machines in market day by day.


Detail:

Hot air system and protect system: 2 set of hot air systems can decrease the rate of leakage. Our factory using the whole set of Leister hot air system with protection system. And our system sets up on the fixed plate, do not moving during production. Almost impossible to damage. Also the only one have the protect system that hot parts will go down, keep the distance with paper cup and cup mould when the machine stop.

Fast Speed Automatic Intelligent Rectangular Food Paper Bowl Making Machine 0




Servo motor: Service for bottom paper feeding. The feature of runs more stable and accuracy, reduce the waste of bottom paper. Servo motor is made in Japan by MITSUBISHI.

Fast Speed Automatic Intelligent Rectangular Food Paper Bowl Making Machine 1





Product Advantages:
1.2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6.Gear work, long life for machinery
7.Inspection system by camera
8.Photoelectricity to track every step

Applications:
Square paper bowl, soup bowl, noodle bowl...

Fast Speed Automatic Intelligent Rectangular Food Paper Bowl Making Machine 2


About Us:
Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998,as Chinese earliest
paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed,
matured and specialized in machine types as below,
--Middle speed paper bowl machine SMD-80B 70-80cups/min
--Middle speed double wall paper cup machine SMD-80A 80-100cups/min
--High speed paper cup machine SMD-90 100-120cups/min


Company Advantages:
Quality assurance both for our products and service for after-sales.
Favorable price.
Great variety of products.
Attractive design.
Environment Friendly Technology
OEM and ODM service provided.

Exhibition Show:
Fast Speed Automatic Intelligent Rectangular Food Paper Bowl Making Machine 3


FAQ:
1. Is your company a factory or trading company?
Our company is a factory, also have export license.
2. Where is your factory located? How can I visit there?
Our factory is located in haining City, Zhejiang Province, China,
about 1.5 hours by car from Shanghai .All our clients, from home or abroad,
are warmly welcome to visit our company !

3. How does your factory do regarding quality control?
Quality is priority. Shunda people always attach great importance to quality
controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.

4. Will you teach how to use the machine?
Yes, engineers available to service machinery overseas or learn in our factory.

5. How about the shipment?
Normally 35-45 days after confirming order, detail delivery date should be decided according to
production season and order quantity.

6. Which payment term do you accept?
T/T, L/C

7. Do you have warranty?
1 year for electronic parts from shipment date
3 years for mechenical parts from shipment date

8.Do you have OEM/OEM service?
Yes, OEM/ODM service are available here. We can make some changes on machine according to your requirements.
