Customized Paper Made Straight Tube Forming Machine PLC Control System

Basic Information
Place of Origin: China
Brand Name: Shunda
Certification: CE
Model Number: STD-80
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate
Delivery Time: 30-40 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per Month
Detail Information
Capacity: 70-80pcs/min Diameter: 90mm Max
Height: 220mm Max Suitable Paper Thickness: 135-450gsm PE/PLA Coated Paper
Sealing Method: Ultrasonic & Hot Air System Running Power: 12kw
Air Compressor: 0.4M3/min 0.5MPA Net Weight: 4000kg
Machine Dimension: 2500*1800*1700
High Light:

80pcs/min round box making machine


tea cup manufacturing machine


PLC Controlled Paper Tube Forming Machine

Product Description

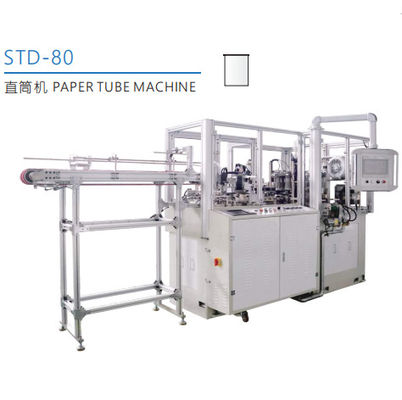

Customized Paper Made Straight Tube Forming Machine PLC Control System



STD-80 intelligent straight paper tube forming machine is designed to make straight paper tube for tissue paper, potato chips and other food.

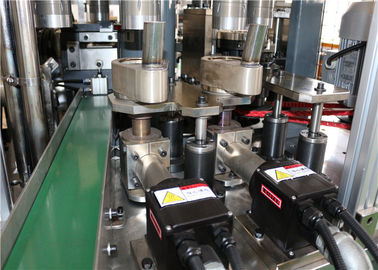

Leading Technology
Open Type Cam Drive System With Double Longitudinal Axis
Continuous Automatic Spray Lubrication
Gear Transmission
Leister Heater On The Bottom
The Whole Frame Design
Linear Guide Rail for Conveying System

Fan Paper Conveyor
Fan paper conveyor is used for delivering the fan paper to the paper cup forming machine. It could reduce the time of loading the fan paper material. It saves labor cost.

Inspection System
It could inspect the rim, inner side and bottom part of cups with quality problems like broken and dirty dot. Wrong rim rolling, leaking and deformation cups will be picked up automatically


Machine Specifications:

Model STD-80
Speed 70-80 pcs/min
Cup size Diameter: 90mm(max) Height: 220mm(max)
Raw material 135-450 GRAM
Output 12KW,380V/220V,60HZ/50HZ
Air compressor 0.4 M³/Min 0.5MPA
Net weight 3.4 TONS
Dimension of machine 2500×1800 ×1700 MM
Dimension of cup collector 900 ×900 ×1760 MM


Finished Products Show:

Customized Paper Made Straight Tube Forming Machine PLC Control System 0


About us:

Easy Maintenance Flexible Paper Drinking Straw Making Machine Customized Made

With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale
services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right
and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.

We have been supported hundreds of paper cup factories around the globe,especially enjoy
high reputation in USA,Finland,Algeria,etc.

We are always holding the faith of “quality wins market,honest wins trust”.And in the future
we should increase technology creation,focus on improving manufacturing skills and lead trend of paper cup machine industry.



Trade Show


Customized Paper Made Straight Tube Forming Machine PLC Control System 2


Maintaince Attention:

1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.

Our Advantages:
Quality assurance both for our products and service for after-sales.
Favorable price.
Great variety of products.
Attractive design.
Environment Friendly Technology
OEM and ODM service provided.


QC team:

A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
