| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | ISO9001 CE |
| Model Number: | SMD-80D |
| Minimum Order Quantity: | 1 set doner box making machine |
| Price: | negotiable |
| Packaging Details: | standard seeworthy package |
| Delivery Time: | 30-40 working days after confirm bowl size |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Product: | Doner Box Making Machine | Speed: | 70-80 Pcs/min |
|---|---|---|---|
| Top Diameter: | 175 Mm(max) | Bottom Diameter: | 95 Mm(max) |
| Height: | 130 Mm(max) | Raw Material: | 135-450 GRAM |
| CONFIGURATION: | ULTRASONIC&HOT AIR | Standard: | CE |
| OUTPUT: | 380V/220V,60HZ | Air Consumption: | 0.5Mpa |
| Weight: | 3.4Ton | Demiension: | 2500*1800*1700mm |
| High Light: | Middle Speed Box Forming Machine,Hot Air System Box Making Machine,80 Pcs/Min Box Making Machine |
||

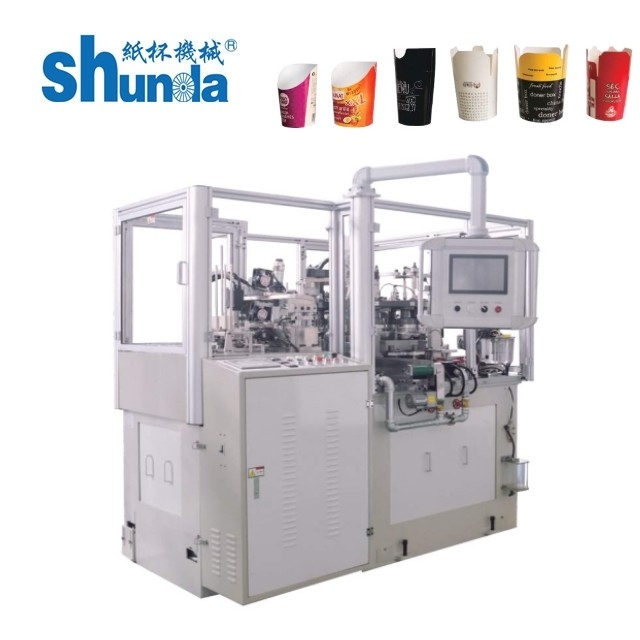

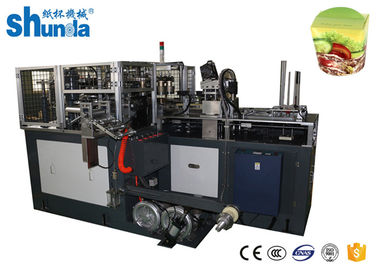

Middle Speed Take Away Doner Box Forming Machine 70 - 80 pcs/min
Middle Speed New Design Take Away Doner Box Forming Machine 70 - 80 pcs/min
Specification:
|
MODEL |
SMD-80D |
|
SPEED |
70-80PCS/MIN |
|
MAX CUP SIZE |
175(Top diameter) * 95 (Top diameter)*130 MM(Height) |
|
MATERIAL |
135-450GRAM |
|
CONFIGURATION |
ULTRASONIC&HOT AIR |
|
OUTPUT |
380V/220V,60HZ |
|
AIR COMPRESSOR |
0.4 M³/Min |
|
NET WEIGHT |
3.4 TONS |
|
MACHINE SIZE |
2500 ×1800 ×1700 MM |
|
COUNTER SIZE |
900 ×900 ×1760 MM |
Equipment Features:
1. 2 sets of original imported hot air system Leister guarantee the stability of heating.

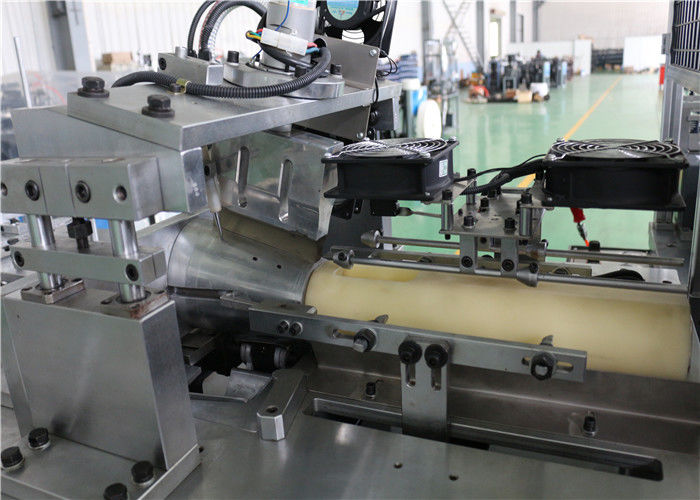

2. Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3. Panasonic photoelectricity checking the every part and report.
4. 2 sets Open cylindrical can divide locating,heigh precision.
5. Automatically Oil lubrication system .
6. Gear work, long life for machinery
7. Optional Inspection system by camera
8. Photoelectricity to track every step
Working principles:
1. Square paper pieces be printed(use offset printer)and cut(use die-cutting machine)in advance, becomes cup-fan-wall-papers to make cup body.
2. Paper sender delivers the cup-fan-wall-papers to molds, sealing the body.
3. The cup bottom paper (reel) automatic feed to the bottom cut parts, be cut into round pieces and sent to molds with the sealed cup body.
4. Pre heating the cup bottom, bottom heating, curlinging the top edge.
5. Sealing the bottom with body.
6. Knurling the cup bottom.
7. Discharging finished cups automatically from molds. Sending to collector and be collected and piled and counted automatically.
Applications:
donerbox,asianbox,chinesesfood box,foodbox, take away doner kebad box...
About Us:
Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998,as Chinese earliest
paper cup machine manufacturer--design,research,manufacture,sell and serve.
With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale
services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right
and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.
We have been supported hundreds of paper cup factories around the globe,especially enjoy
high reputation in USA,Finland,Algeria,etc.
We are always holding the faith of “quality wins market,honest wins trust”.And in the future. we should increase technology creation,focus on improving manufacturing skills and lead trend of paper cup machine industry.
Exhibition Show:
After-sale Service:
1. warranty: 3 year
2. the guide booklet will be sent with machine to guide the installation process works,adjust
the whole machine,production,avoide or solve the problem which the buyer will face.
3. we will adjust the machine well for one week before the delivery,ensure the machine has
the perfect performance.
4. we can dispatch technologists to buyer's factory,guiding installation,ajustment for a
period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.
5. we supply the free training of buyer,the training won't stop until the buyer control the whole lesson!
6. we supply the consumable spare parts for frees for three year use.
Maintaince Suggestions:
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.
