| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | ISO9001 CE |
| Model Number: | SMD-80B |
| Minimum Order Quantity: | 1 set paper bowl machine |
| Price: | negotiable |
| Packaging Details: | standard seeworthy package |
| Delivery Time: | 35-45 working days after confirmed cup size and received deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 18 sets per month |
| Product: | Paper Bowl Making Machine | Speed: | 70-80 Pcs/min |
|---|---|---|---|
| Color: | As Per Requirement | CONFIGURATION: | ULTRASONIC&HOT AIR |
| Standard: | CE/SGS | OUTPUT: | 380V/220V,60HZ |
| Air Consumption: | 0.5Mpa | Weight: | 3.4Ton |
| Demiension: | 2500*1800*1700mm | Top Diameter: | 90-180mm |
| Bottom Diameter: | 60-120mm | Height: | 50-135mm |
| High Light: | disposable cup thermoforming machine,fully automatic paper cup machine |
||

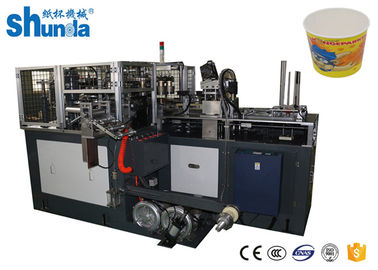

Factory directly supply fashion design disposable paper bowl forming machine
Specification:
|
MODEL |
SMD-80B |
|
SPEED |
70-80PCS/MIN |
|
MAX CUP SIZE |
180(Top diameter) * 120 (Top diameter)*135 MM(Height) |
|
MATERIAL |
135-450GRAM |
|
CONFIGURATION |
ULTRASONIC&HOT AIR |
|
OUTPUT |
380V/220V,60HZ |
|
AIR COMPRESSOR |
0.5 M³/Min |
|
NET WEIGHT |
3.4 TONS |
|
MACHINE SIZE |
2500 ×1800 ×1700 MM |
|
COUNTER SIZE |
900 ×900 ×1760 MM |
Advantages:
1.2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6.Gear work, long life for machinery
7.Inspection system by camera
8.Photoelectricity to track every step
Applications:
Paper bowl, soup bowl, noodle bowl...
About Us:
Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998,as Chinese earliest paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed, matured and specialized in machine types as below,
--Middle speed paper bowl machine SMD-80B 70-80cups/min
--Middle speed double wall paper cup machine SMD-80A 80-100cups/min
--High speed paper cup machine SMD-90 100-120cups/min
With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right and goes though CCC and CNAS certificates,also get CE and ISO9001 certified. We have been supported hundreds of paper cup factories around the globe,especially enjoy high reputation in USA,Finland,Algeria,etc. We are always holding the faith of “quality wins market,honest wins trust”.And in the future we should increase technology creation,focus on improving manufacturing skills and lead trend of paper cup machine industry.
Exhibition Show:
FAQ:
1. Is your company a factory or trading company?
Our company is a factory, also have export license.
2. Where is your factory located? How can I visit there?
Our factory is located in haining City, Zhejiang Province, China,
about 1.5 hours by car from Shanghai .All our clients, from home or abroad,
are warmly welcome to visit our company !
3. How does your factory do regarding quality control?
Quality is priority. Shunda people always attach great importance to quality
controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
4. Will you teach how to use the machine?
Yes, engineers available to service machinery overseas or learn in our factory.
5. How about the shipment?
Normally 35-45 days after confirming order, detail delivery date should be decided according to
production season and order quantity.
6. Which payment term do you accept?
T/T, L/C
7. Do you have warranty?
1 year for electronic parts from shipment date
3 years for mechenical parts from shipment date
8.Do you have OEM/OEM service?
Yes, OEM/ODM service are available here. We can make some changes on machine according to your requirements.
Machine Maintaince Notice:
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.
