| Place of Origin: | China |
|---|---|
| Brand Name: | Shunda |
| Certification: | CE |
| Model Number: | STD-80 |
| Minimum Order Quantity: | 1 set paper tube machine |
| Price: | Negotiable |
| Packaging Details: | Seaworthy and suitable for bumpy roads. Strong wooden box and firm plate |
| Delivery Time: | within 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per Month |
| Max Cup Diameter: | 90mm | Max Cup Height: | 220mm |
|---|---|---|---|
| Speed: | 70-80pcs/min | Raw Material: | 135-450gsm |
| Configuration: | ULTRASONIC & HOT AIR SYSTEM | Output: | 12KW,380V/220V,60HZ/50HZ |
| Air Compressor: | 0.4 M³/Min 0.5MPA | Net Weight: | 3.4 TONS |
| Dimension Of Machine: | 2500×1800 ×1700 MM | Dimension Of Cup Collector: | 900 ×900 ×1760 MM |
| High Light: | round box making machine,tea cup manufacturing machine |
||

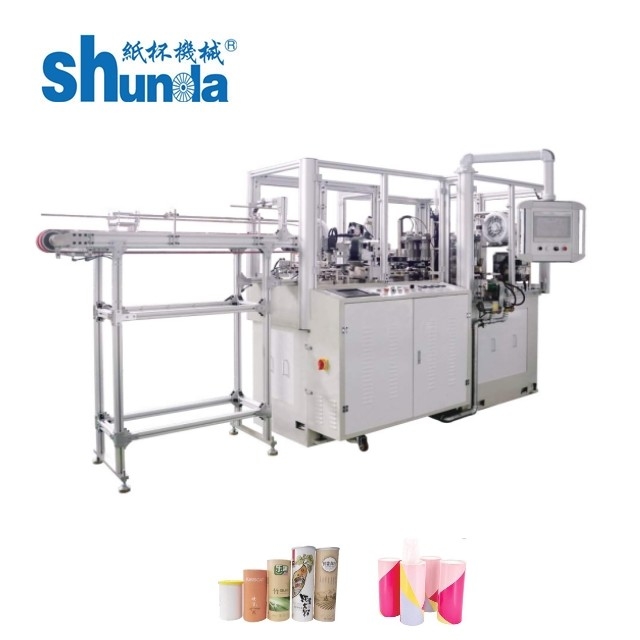

Fully Automatic Round Bottom Straight Paper Tube Forming Machine For Electrical Candle
Product Description
| MODEL | STD-80 |
| Speed | 70-80 PCS/MIN |
| Cup size Range | Max Dia:90mm, Max Height:220mm |
| Paper request Gram | 135-450GSM |
| Heating system | Hot air system (from Switzerland) |
| Output | 380V/220V 12 KW,50/60HZ, Three Phase four wire |
| Air compressor | 0.4 M³/Min |
| Net weight | 3.4 TONS |
| Machinery Size | 2500 ×1800 ×1700 MM |
Advantage:
1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6.Servo motor control the gap of the bottom-paper within 0.1mm.
Finished Products:
About us:
Haining Chengda Machinery Co.,LTd always abides by the business strategy of "high-quality
products & reasonable price", the service concept of "showing respect to you & trying my best",
and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers
the best products and services. Ship to more than 100 countries.
Trade Show
In Algeria,the most popular cup size 7oz and 3 oz are designed by us.There we have almost
80% market.Large paper cup company ATP,MTP,GSTP,ITP... all are our clients.Our ZBJ-9A is
very famous in Algeria.We also have client in USA,Mexico,Brazil,Finland,libya,Iraq,Australia
etc.
FAQ
1. Is your company a factory or trading company?
Our company is a factory, also have export license.
2. Where is your factory located? How can I visit there?
Our factory is located in haining City, Zhejiang Province, China,
about 1.5 hours by car from Shanghai .All our clients, from home or abroad,
are warmly welcome to visit our company !
3. How does your factory do regarding quality control?
Quality is priority. Shunda people always attach great importance to quality
controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
4. Will you teach how to use the machine?
Yes, engineers available to service machinery overseas or learn in our factory.
5. How about the shipment?
Normally 30-40 days after confirming order, detail delivery date should be decided according to
production season and order quantity.
6. Which payment term do you accept?
T/T, L/C
7. Do you have warranty?
1 year for electronic parts from shipment date
3 years for mechenical parts from shipment date
8.Do you have OEM/OEM service?
Yes, OEM/ODM service are available here. We can make some changes on machine according to your requirements.
Tag: paper cup making machinery,paper cups manufacturing machines
