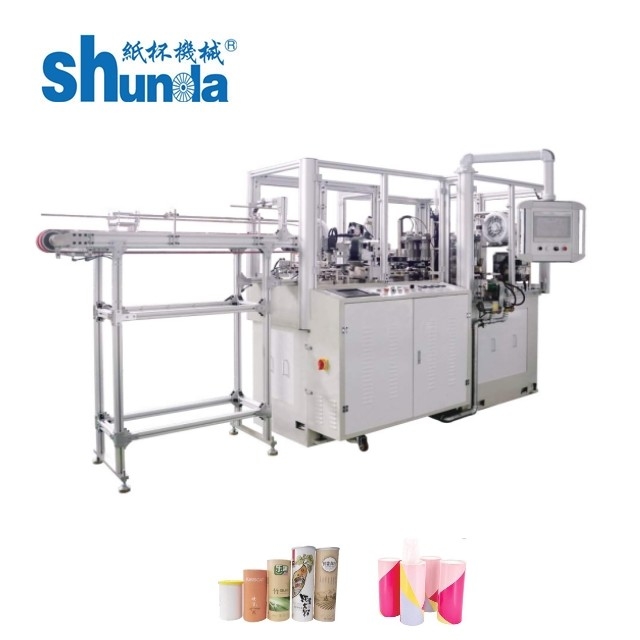

Qualited Tissue Paper Container Box Paper Tube Forming Machine With Hot Air and System

Qualited Tissue Paper Container Box Paper Tube Forming Machine With Hot Air and System

Key Attributes

Brand Name:Shunda
Model Number:STD-80
Place of Origin:China
Certification:CE
Minimum Order Quantity:1 set paper tube machine
Price:Negotiable
Supply Ability:20 sets per Month
Delivery Time:within 30 working days
Payment Terms:L/C, T/T, D/A, D/P, Western Union,
Standard Packaging:wooden pallet for paper tuber machine

Product Summary

Qualited Tissue Paper Container Box Paper Tube Forming Machine With Hot Air and System Product Description MODEL STD-80 Speed 70-80 PCS/MIN Cup size Range Max Dia:90mm, Max Height:220mm Paper request Gram 135-450GSM Heating system Hot air system (from Switzerland) Output 380V/220V 12 KW,50/60HZ, ...

Product Details

Highlight:

round box making machine

,

tea cup manufacturing machine

Max Cup Diameter: 90mm
Max Cup Height: 220mm
Speed: 70-80pcs/min
Raw Material: 135-450gsm
Configuration: ULTRASONIC & HOT AIR SYSTEM
Output: 12KW,380V/220V,60HZ/50HZ
Air Compressor: 0.4 M³/Min 0.5MPA
Net Weight: 3.4 TONS
Machine Dimension: 2500 ×1800 ×1700 MM
Dimension Of Cup Collector: 900 ×900 ×1760 MM
Product Description
Detailed Specifications & Features

Qualited Tissue Paper Container Box Paper Tube Forming Machine With Hot Air and System





Product Description



MODEL STD-80
Speed 70-80 PCS/MIN
Cup size Range Max Dia:90mm, Max Height:220mm
Paper request Gram 135-450GSM
Heating system Hot air system (from Switzerland)
Output 380V/220V 12 KW,50/60HZ, Three Phase four wire
Air compressor 0.4 M³/Min
Net weight 3.4 TONS
Machinery Size 2500 ×1800 ×1700 MM





Advantage:

1.It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Open cylindrical can divide locating,heigh precision.
4.Automatically Oil lubrication system .
5.Servo motor control the gap of the bottom-paper within 0.1mm.

6.Gear and open cylindrical promote the stability and speed.

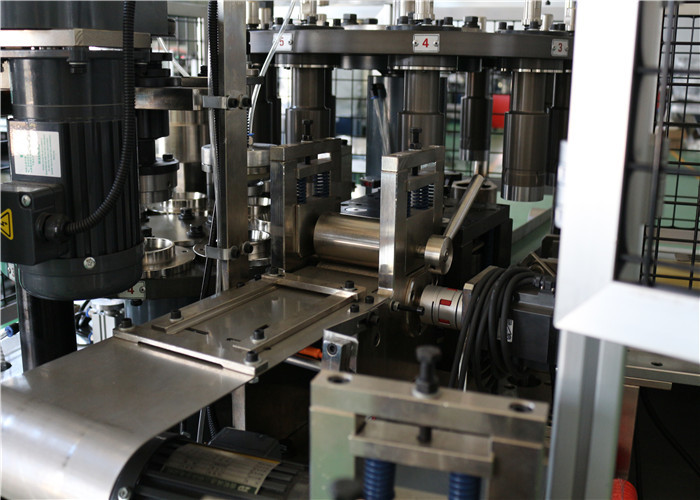

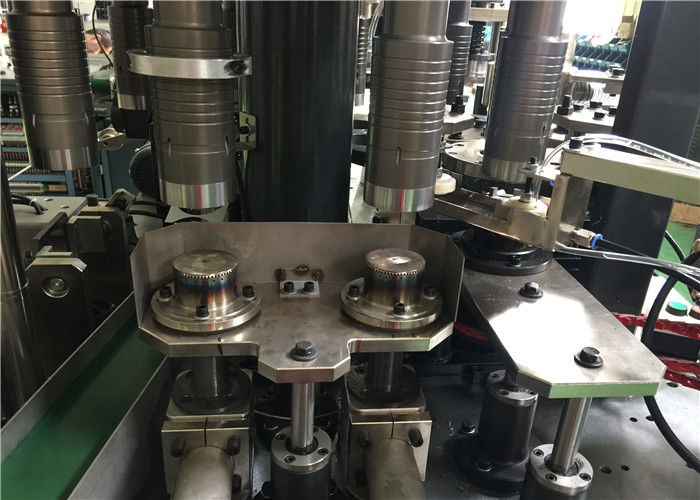

Detail pictures:

High Speed Automatic Paper Cup Machine , Paper Cup Forming Machine

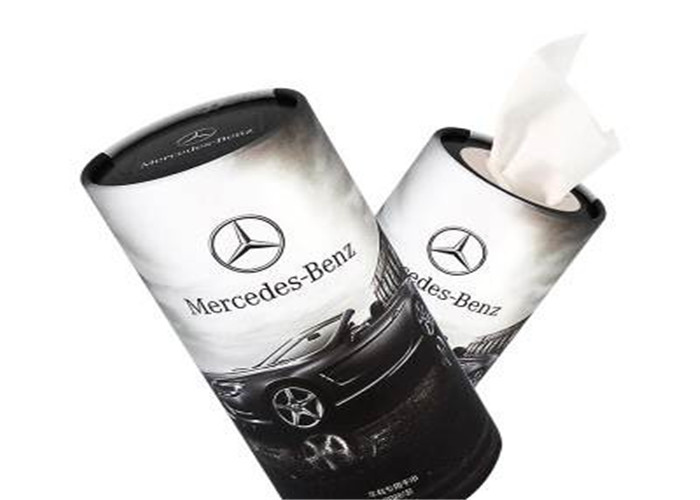

Finished Products:

Qualited Tissue Paper Container Box  Paper Tube Forming Machine With Hot Air and System





About us:
Haining Chengda Machinery Co.,LTd always abides by the business strategy of "high-quality products & reasonable price", the service concept of "showing respect to you & trying my best", and the professional spirit of ’’honesty, innovation, enthusiasm, sureness" to provide customers the best products and services. Make paper cup machine since 1998, ship to more than 100 countries.

Qualited Tissue Paper Container Box  Paper Tube Forming Machine With Hot Air and System




Trade Show:
In Algeria,the most popular cup size 7oz and 3 oz are designed by us.There we have almost  80% market.Large paper cup company ATP,MTP,GSTP,ITP... all are our clients.Our ZBJ-9A is very famous in Algeria.We also have client in USA,Mexico,Brazil,Finland,libya,Iraq,Australia etc.

Qualited Tissue Paper Container Box  Paper Tube Forming Machine With Hot Air and System




FAQ:



1.What's your product range?
Tea cups,coffee cups,ice cream cups,noodle bowl, KFC bowl etc.

2.Are you a manufacturer?
Yes,We have been in making paper cup machine over 18 years.

3.Wha't the product time?
Normal about 30days of order 1-5 sets machine.



4.What information should i let you know if i want to get a quotation?
--Quantity

--The detailed size (top diameter,bottom diameter,and height)

--The paper thickness




After-sale Service:


1.warranty: 3 year



2.the guide booklet will be sent with machine to guide the installation process works,adjust
the whole machine,production,avoide or solve the problem which the buyer will face.



3.we will adjust the machine well for one week before the delivery,ensure the machine has
the perfect performance.



4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a
period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 150usd living allowances.



5.we supply the free training of buyer,the training won't stop until the buyer control the whole leason!



6.we supply the consumable spare parts for frees for three year use.
